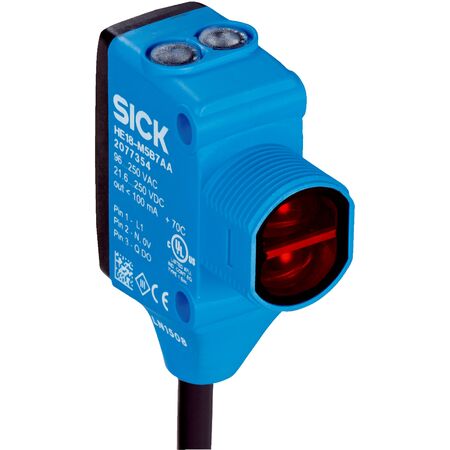

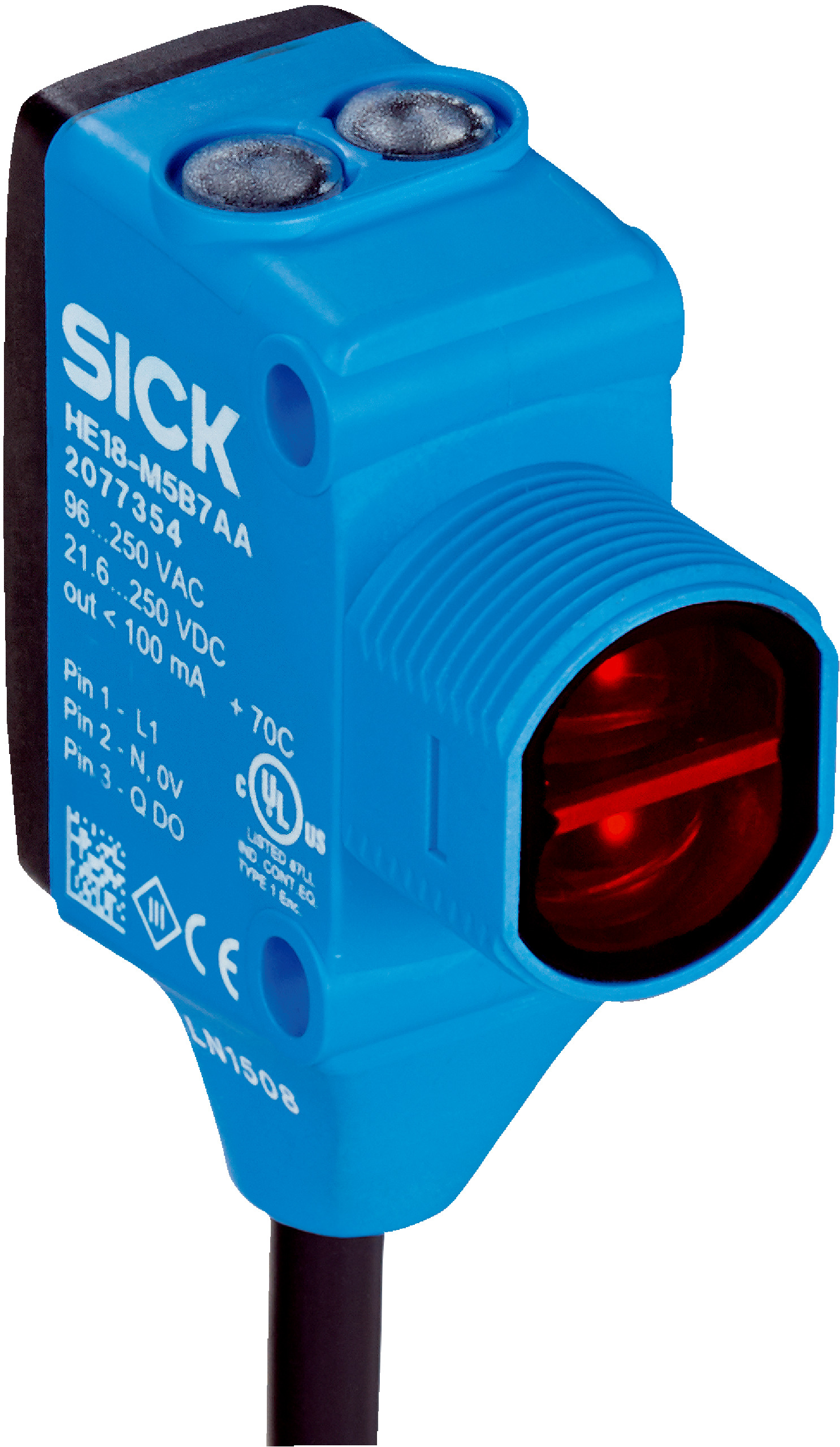

Photoelectric Proximity Sensor M18 | Background Suppression | IP67 & IP69K Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a sensing range of 5 mm to 300 mm and a fast response time of ≤ 0.5 ms. With a robust IP67 and IP69K rating, this sensor is built to withstand harsh environments, making it ideal for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 300 mm
- Light source: PinPoint LED, visible red light, 631 nm wavelength
- Supply voltage: 21.6 V DC to 250 V DC, 96 V AC to 250 V AC
- Current consumption: ≤ 10 mA
- Switching output: MOSFET, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with male micro connector, 4-pin, 150 mm
- Housing material: Plastic VISTAL®, optics material: Plastic PMMA
- Protection class: II
- Enclosure rating: IP67, IP69K
- Operating temperature: –40 °C to +65 °C
- Storage temperature: –40 °C to +75 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 46mm x 34mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light PinPoint LED with 631 nm wavelength
- Sensing range up to 300 mm
- Hybrid housing design with M18 thread diameter
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- MOSFET light switching output with max output current ≤ 100 mA
- High protection rating IP67 and IP69K for harsh environments
- Wide operating temperature range from –40 °C to +65 °C
- Cable with male micro connector, 4-pin, 150 mm length
- Complies with EMC standards EN 60947-5-2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low current consumption (≤ 10 mA)
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HTB18-L5B2AB Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
