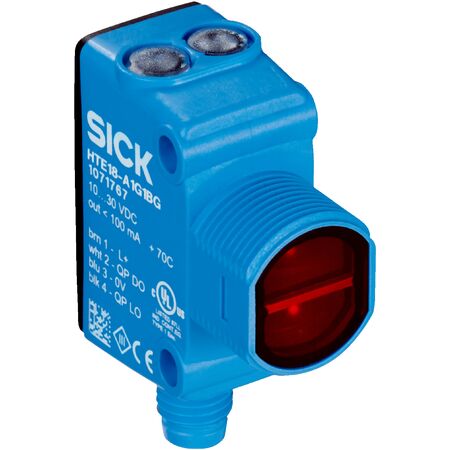

Photoelectric Proximity Sensor M18 | Background Suppression | IP67 & IP69K Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor M18 is designed for industrial automation, featuring background suppression and a sensing range of up to 150 mm. With a fast response time of ≤ 0.5 ms and IP67/IP69K ratings for dust and water protection, it's perfect for manufacturing process control and material handling applications. Built for reliability, this sensor ensures optimal performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Output type: PNP complementary switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M8, 4-pin connector
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +65 °C
- Storage temperature: -40 °C to +75 °C
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 44.9mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light PinPoint LED with 631 nm wavelength
- Sensing range up to 150 mm pre-set, max 300 mm
- Hybrid housing design with M18 thread diameter
- IP67 and IP69K rated for dust and water protection
- Fast response time ≤ 0.5 ms and switching frequency 1,000 Hz
- Complementary PNP switching outputs with light/dark switching modes
- Operating temperature range from -40 °C to +65 °C
- EMC compliant with EN 60947-5-2 industrial radio safety standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67/IP69K housing reduces need for frequent replacements
- Low power consumption with efficient LED light source
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTB18-P3A2BAD06 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
