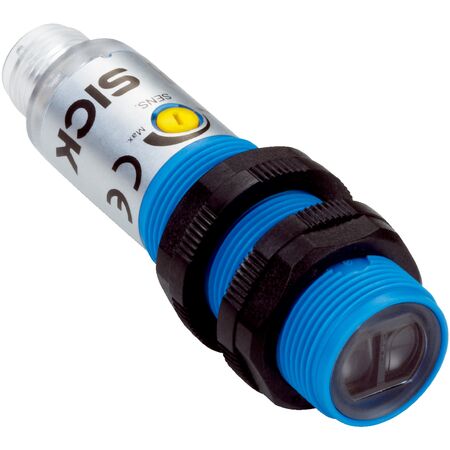

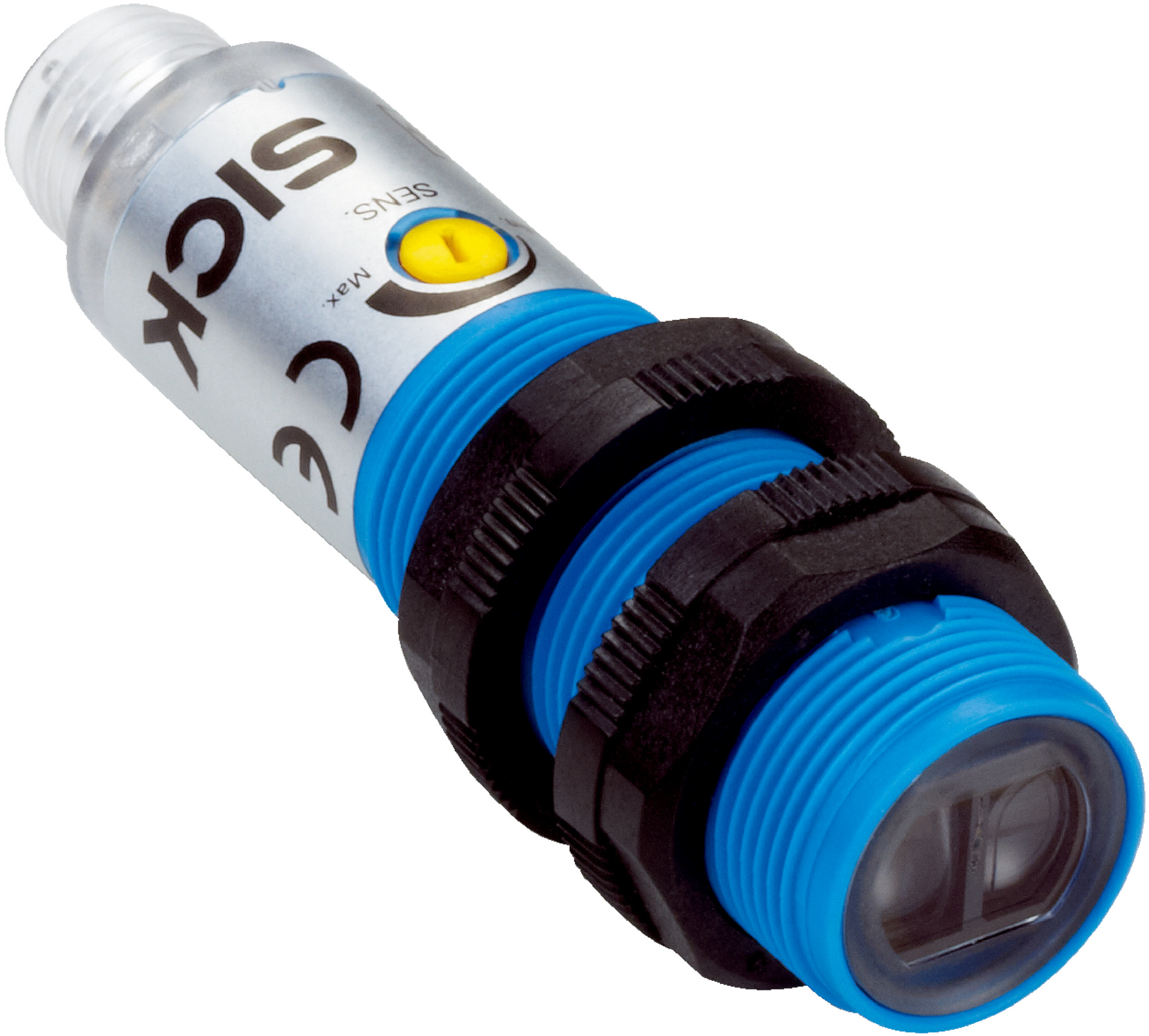

Photoelectric Proximity Sensor M18 | Background Suppression | IP67 Rated | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a sensing range of 30 mm to 200 mm and a high switching frequency of 500 Hz. With a durable IP67 rated enclosure and visible red light LED, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 30 mm to 200 mm (max 350 mm)
- Light source: LED, visible red light at 632 nm wavelength
- Focus and angle of dispersion: Approx. 2.8°
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 35 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control cable
- Response time: ≤ 1 ms, switching frequency 500 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III, enclosure rating IP67
- Housing material: Plastic PBT/PC, optics material: Plastic PMMA
- Operating temperature: -25 °C to +55 °C, storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with wavelength 632 nm
- Sensing range from 30 mm to 200 mm, max 350 mm
- Cylindrical housing design with M18 x 1 thread diameter
- Potentiometer adjustment with 4 turns for sensing range
- High switching frequency of 500 Hz and response time ≤ 1 ms
- IP67 rated enclosure for dust and water protection
- Male connector M12, 4-pin for connection
- Selectable light/dark switching mode via control cable
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 35 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTB180-2N42417 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
