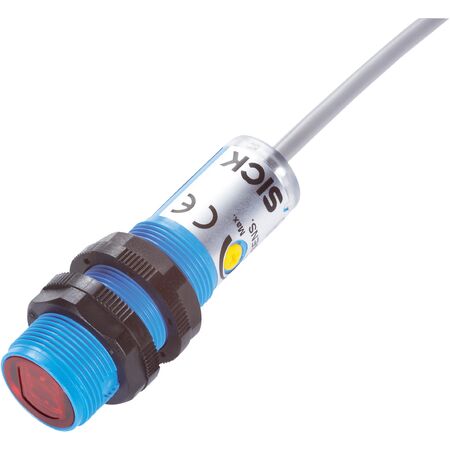

Photoelectric Proximity Sensor M18 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a sensing range of 30 mm to 200 mm and a fast response time of ≤ 1 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in machinery, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 30 mm to 200 mm (max 350 mm)
- Light source: Visible red LED, wavelength 632 nm
- Focus angle: Approx. 2.8°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Weight: 62 g
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with wavelength 632 nm
- Sensing range from 30 mm to 200 mm, max 350 mm
- Cylindrical housing design with M18 x 1 thread diameter
- Potentiometer adjustment with 4 turns for sensing range
- IP67 rated enclosure for dust and water protection
- Fast response time ≤ 1 ms and switching frequency 500 Hz
- Selectable light/dark switching mode via control cable
- Robust plastic housing (PBT/PC) and optics (PMMA)
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTB180-2P41117 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
