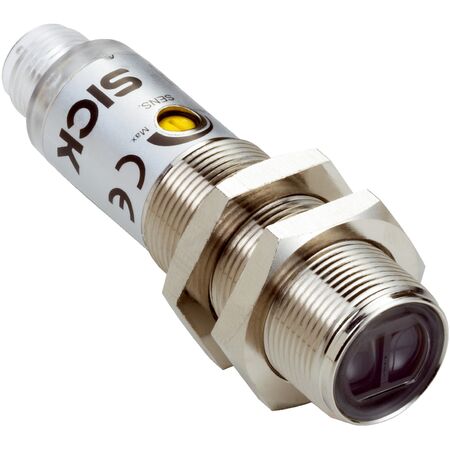

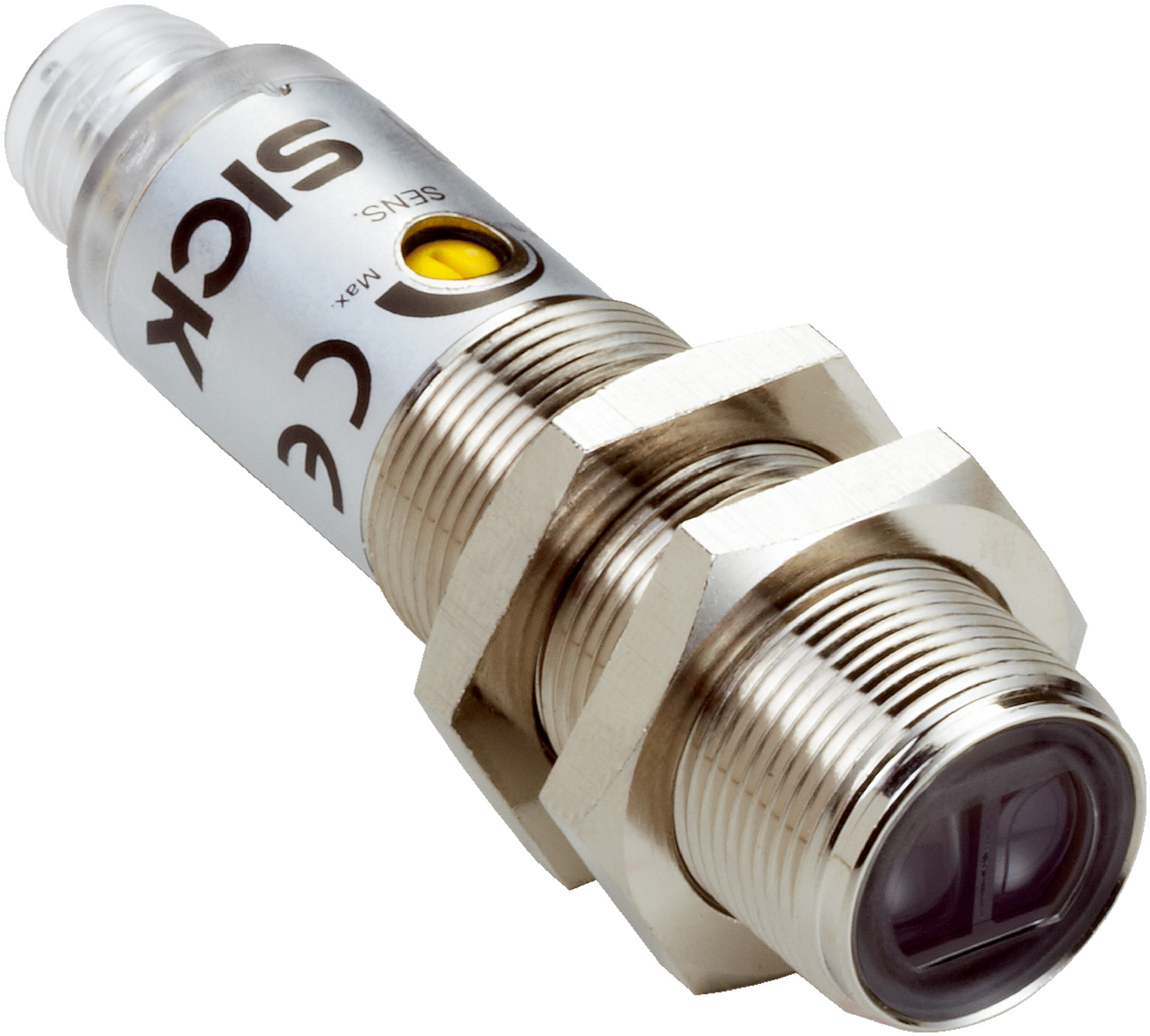

Photoelectric Proximity Sensor M18 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a sensing range of 30 mm to 200 mm and a fast response time of ≤ 1 ms. With an IP67 rating for dust and water protection, this robust sensor is perfect for manufacturing process control and safety monitoring in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 30 mm to 200 mm (max 350 mm)
- Light source: Visible red LED, wavelength 632 nm
- Focus angle: Approx. 2.8°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: NPN, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Nickel-plated brass and PC
- Operating temperature: -25 °C to +55 °C
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with wavelength 632 nm
- Sensing range from 30 mm to 200 mm, max 350 mm
- Cylindrical metal housing with M18 x 1 thread diameter
- IP67 rated for dust and water protection
- Fast response time ≤ 1 ms and switching frequency 500 Hz
- Adjustable sensitivity via 4-turn potentiometer
- NPN switching output with light switching mode
- Robust metal nickel-plated brass and plastic PMMA optics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
- Robust design reduces environmental impact from frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VTB180-2E32412 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
