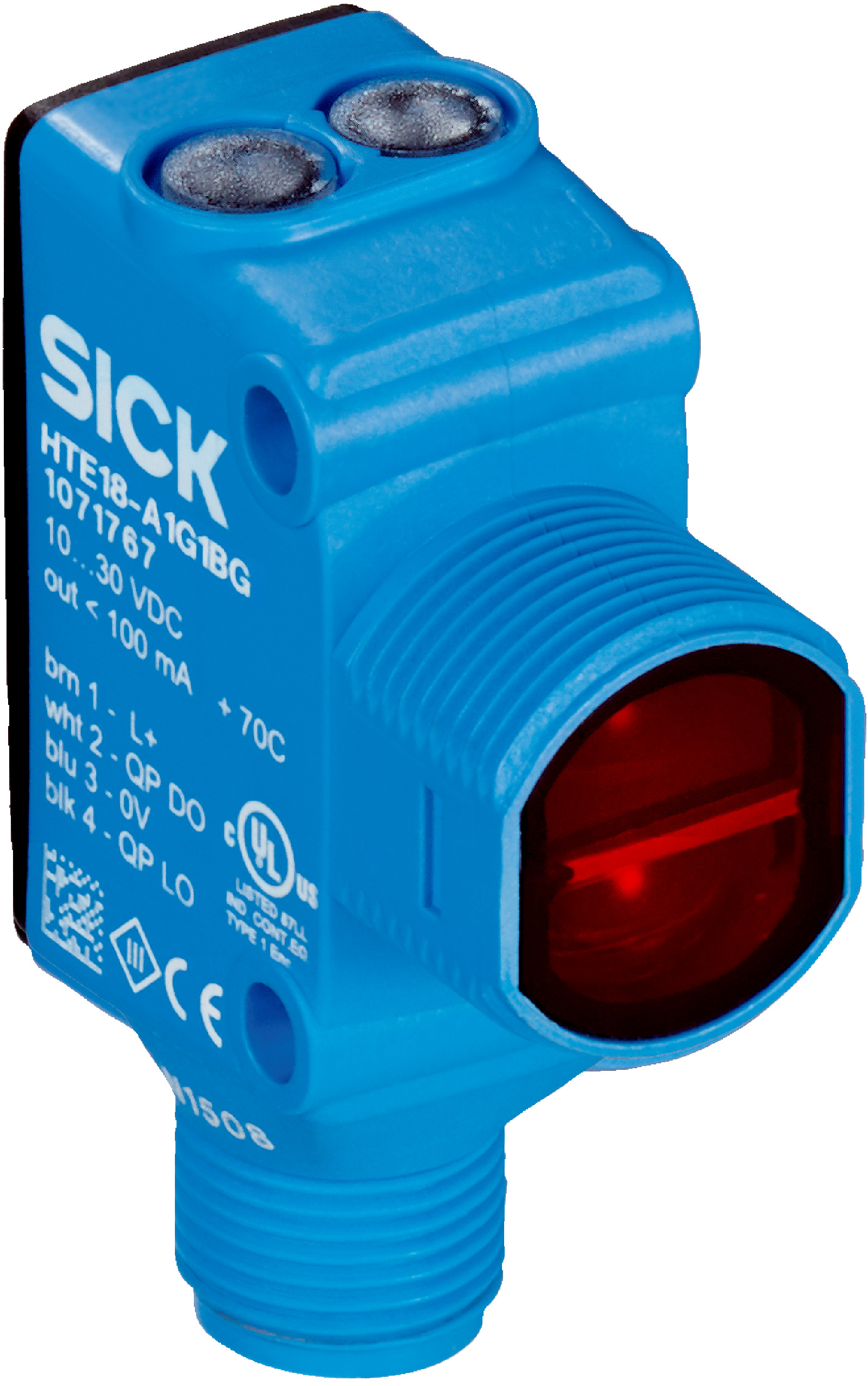

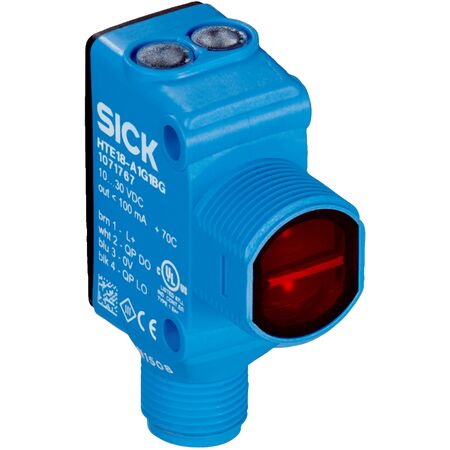

Photoelectric Proximity Sensor M18 | Foreground Suppression | IP67 & IP69K Rated | Fast Response Time | by SICK
The HTF18-P4A2BB photoelectric proximity sensor is designed for industrial automation, featuring a sensing range of 5 mm to 300 mm and a fast response time of ≤ 0.5 ms. With its robust IP67 and IP69K ratings, this sensor is perfect for harsh environments, ensuring reliable object detection and safety in manufacturing processes and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP complementary outputs (Q1 light switching, Q2 dark switching)
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: –40 °C to +65 °C
- Storage temperature: –40 °C to +75 °C
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 48.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with foreground suppression
- Visible red light with PinPoint LED light source
- Sensing range from 5 mm to 300 mm
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy adjustment
- Light/dark switching mode with complementary PNP outputs
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- High protection rating IP67 and IP69K for harsh environments
- Operating temperature range from –40 °C to +65 °C
- EMC compliant with EN 60947-5-2 industrial radio safety standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and presence detection in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTF18-P4A2BB photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
