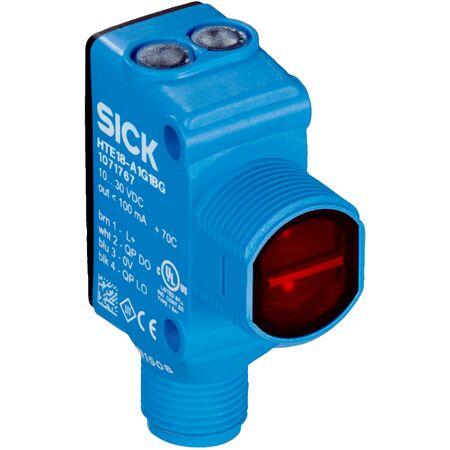

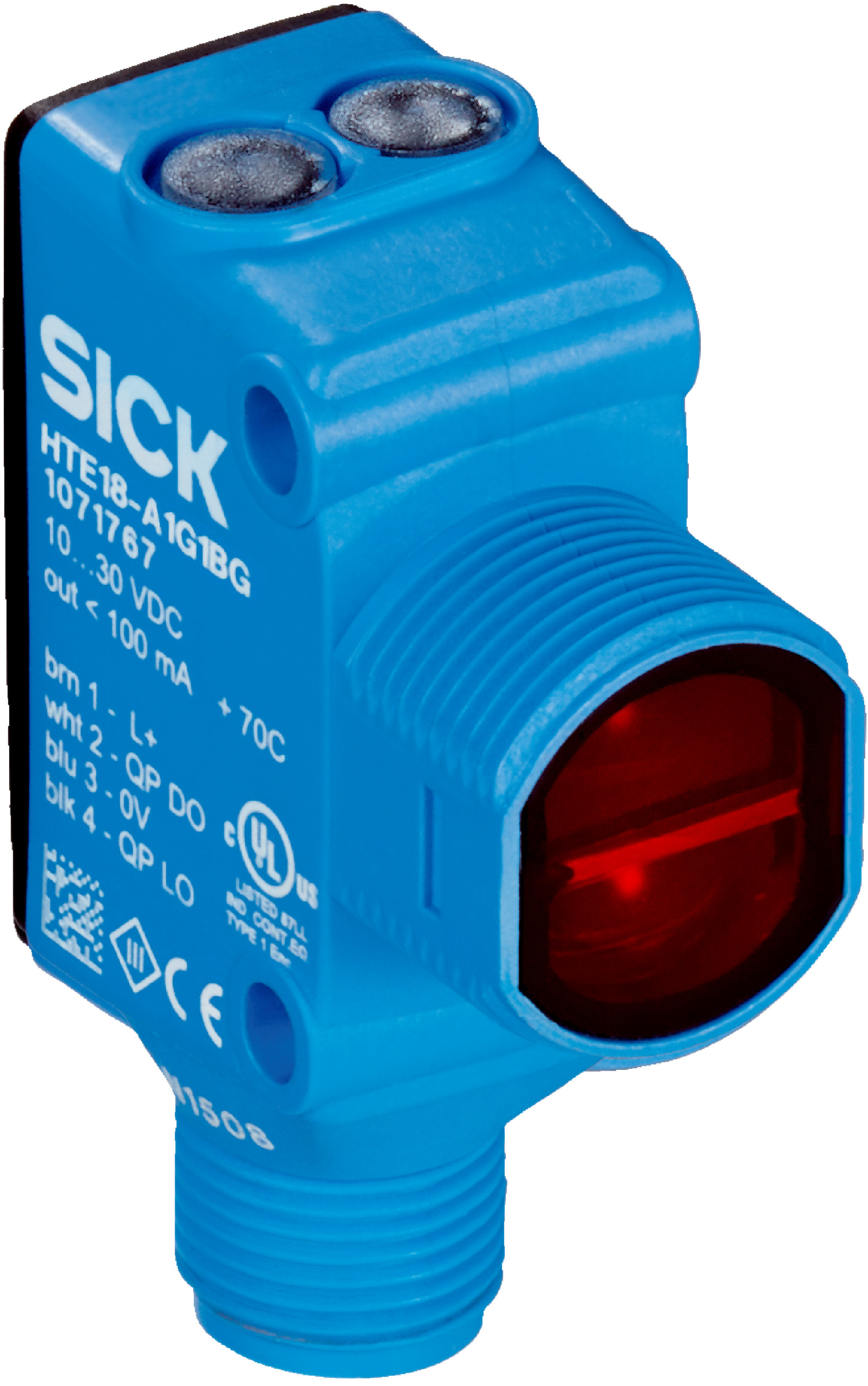

Photoelectric Proximity Sensor M18 | Infrared LED | IP67 & IP69K Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation. With an infrared LED light source and a sensing range of 10 mm to 250 mm, it ensures reliable performance in manufacturing processes. Rated IP67 and IP69K for dust and water protection, this sensor operates efficiently in temperatures from -40 °C to +70 °C, making it ideal for various applications including conveyor systems and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP, light switching and health output
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +75 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 48.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with blue color
- Sensing range from 10 mm to 250 mm, max up to 1000 mm
- Infrared LED light source with 850 nm wavelength
- Signal strength light bar for easy adjustment
- M18 threaded housing for head/side mounting
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- IP67 and IP69K rated for dust and water protection
- Operating temperature range from -40 °C to +70 °C
- Male M12 4-pin connector for easy connection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Position sensing in conveyor systems
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTE18-V4A1BB Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
