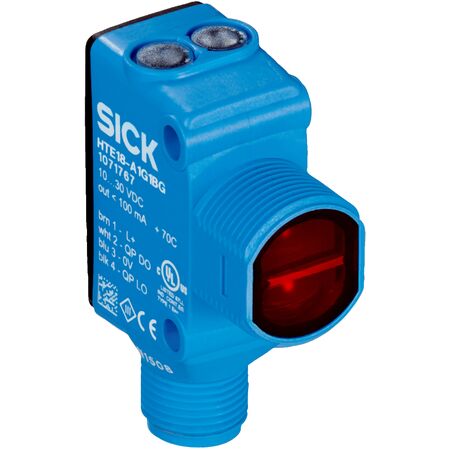

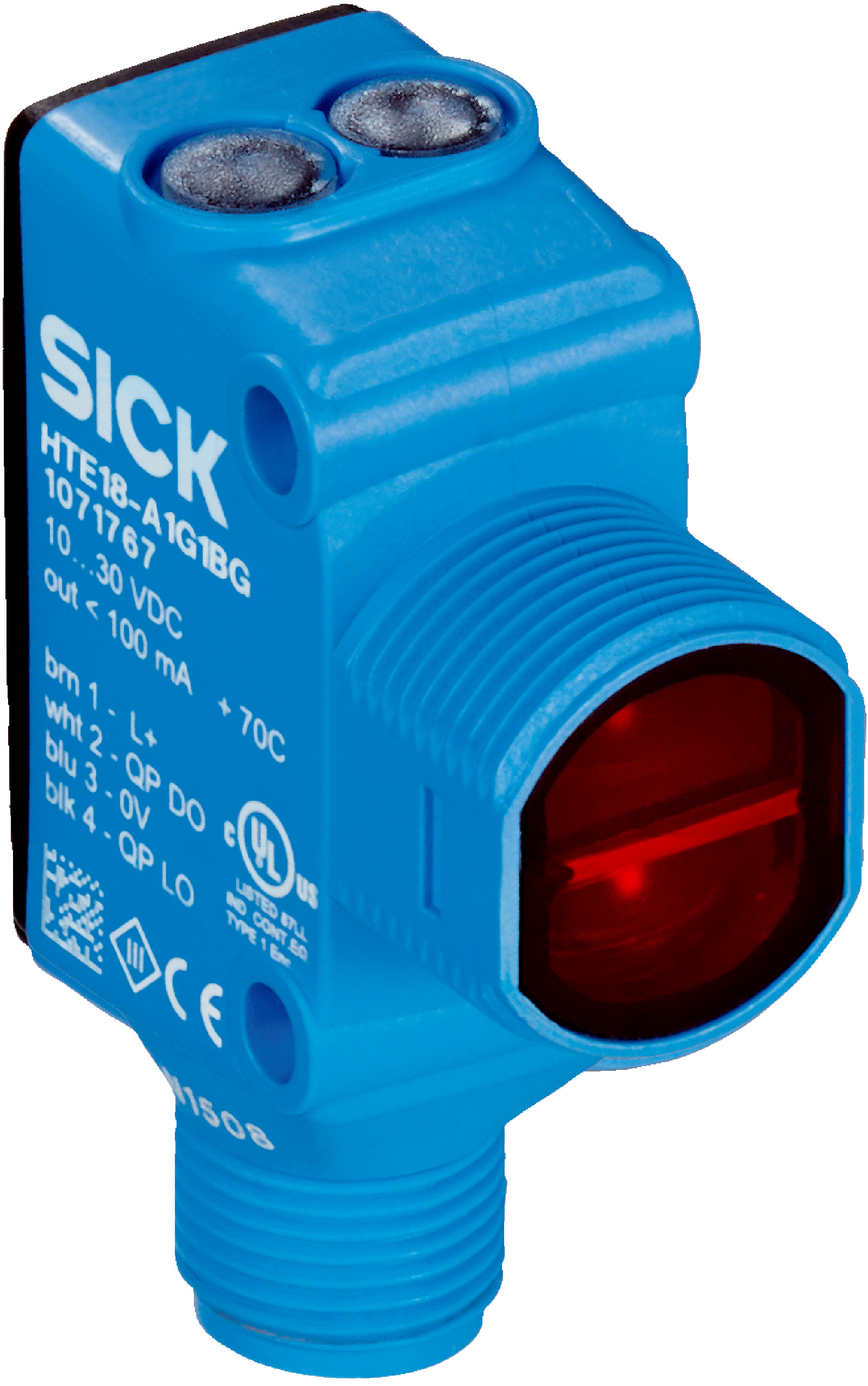

Photoelectric Proximity Sensor M18 | Infrared LED | IP67 & IP69K Rated | by SICK
The Photoelectric Proximity Sensor M18 is designed for industrial automation, featuring an infrared LED light source and a sensing range of 10 mm to 250 mm, extending up to 1000 mm. With a fast response time of ≤ 0.5 ms and dual PNP/NPN outputs, it ensures reliable object detection in harsh environments. Ideal for manufacturing process control and safety monitoring, this sensor is built to withstand extreme temperatures from -40 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP and NPN, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M12, 4-pin
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +75 °C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 48.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with blue color
- Sensing range from 10 mm to 250 mm, max up to 1000 mm
- Infrared LED light source with 850 nm wavelength
- Signal strength light bar for easy adjustment
- M18 threaded housing for flexible mounting
- Switching outputs PNP and NPN with dark switching mode
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- High protection rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -40 °C to +70 °C
- Electromagnetic compatibility compliant with EN 60947-5-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTE18-A4A1BB Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
