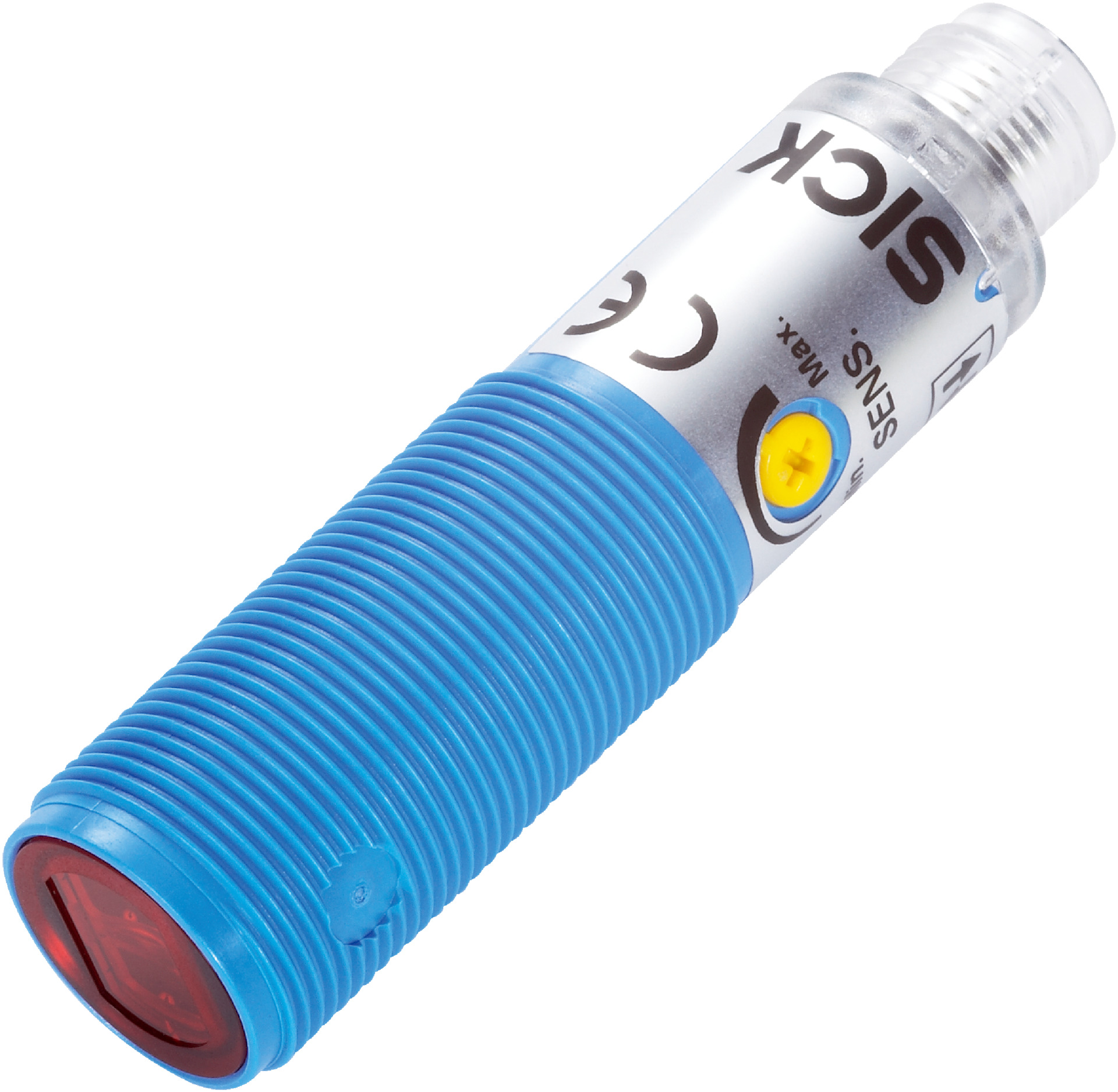

Photoelectric Proximity Sensor M18 | IP67 Rated | 1000 Hz Switching Frequency | 1 mm to 1100 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a sensing range from 1 mm to 1100 mm and a high switching frequency of 1000 Hz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing, material handling, and safety monitoring applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN transistor
- Switching mode: Light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -40 °C to +70 °C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Connection type: Male M12, 4-pin connector
- Light source: LED, wavelength 645 nm
- Focus angle: Approx. 1.2°
- Light spot size at 800 mm: Ø 30 mm
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm up to 1100 mm
- Cylindrical housing design with M18 x 1 thread diameter
- Potentiometer adjustment with 270° sensing range control
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Light/dark switching mode selectable via control cable
- Male M12 4-pin connector for easy connection
- Robust plastic housing made of PBT/PC and optics of PMMA
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Positioning and presence detection in manufacturing
- Material handling and conveyor systems
- Safety and monitoring in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2N42487 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
