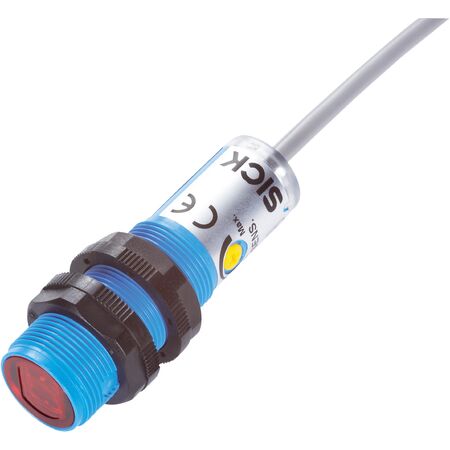

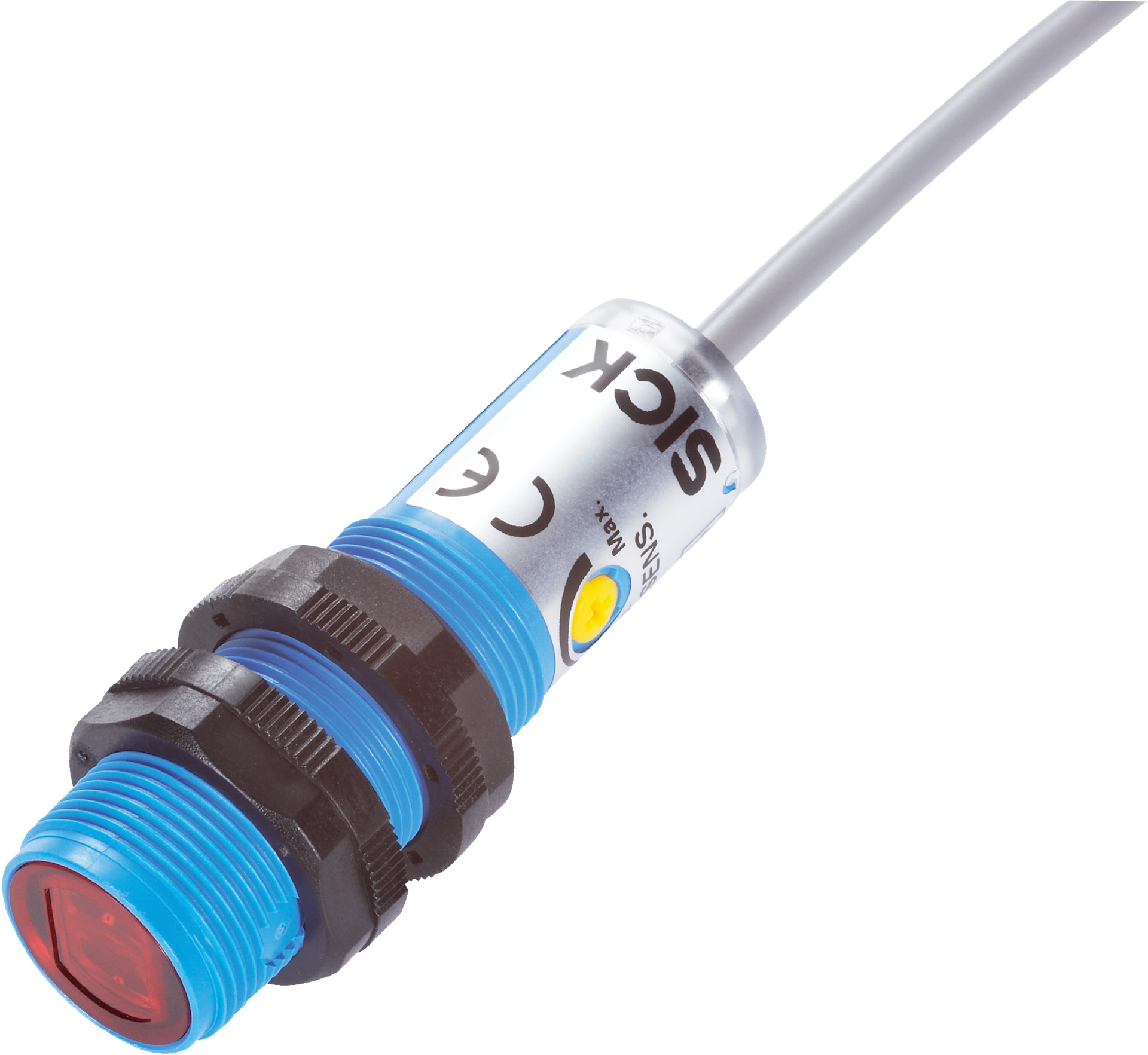

Photoelectric Proximity Sensor M18 | IP67 Rated | 1,000 Hz Switching Frequency | Red Light LED | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a high switching frequency of 1,000 Hz and a response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing processes, conveyor systems, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP with light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Plastic PBT/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1,982 years
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 350 mm (max 500 mm)
- Cylindrical housing design with M18 x 1 thread diameter
- Potentiometer adjustment with 270° sensing range control
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +55 °C
- Supplied with fastening nuts for easy installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Safety and monitoring in conveyor systems
- Robotics and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2P41147 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
