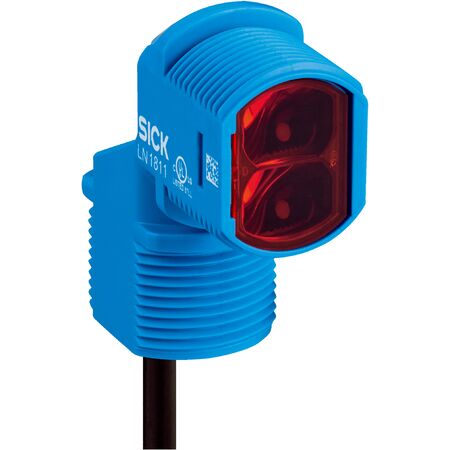

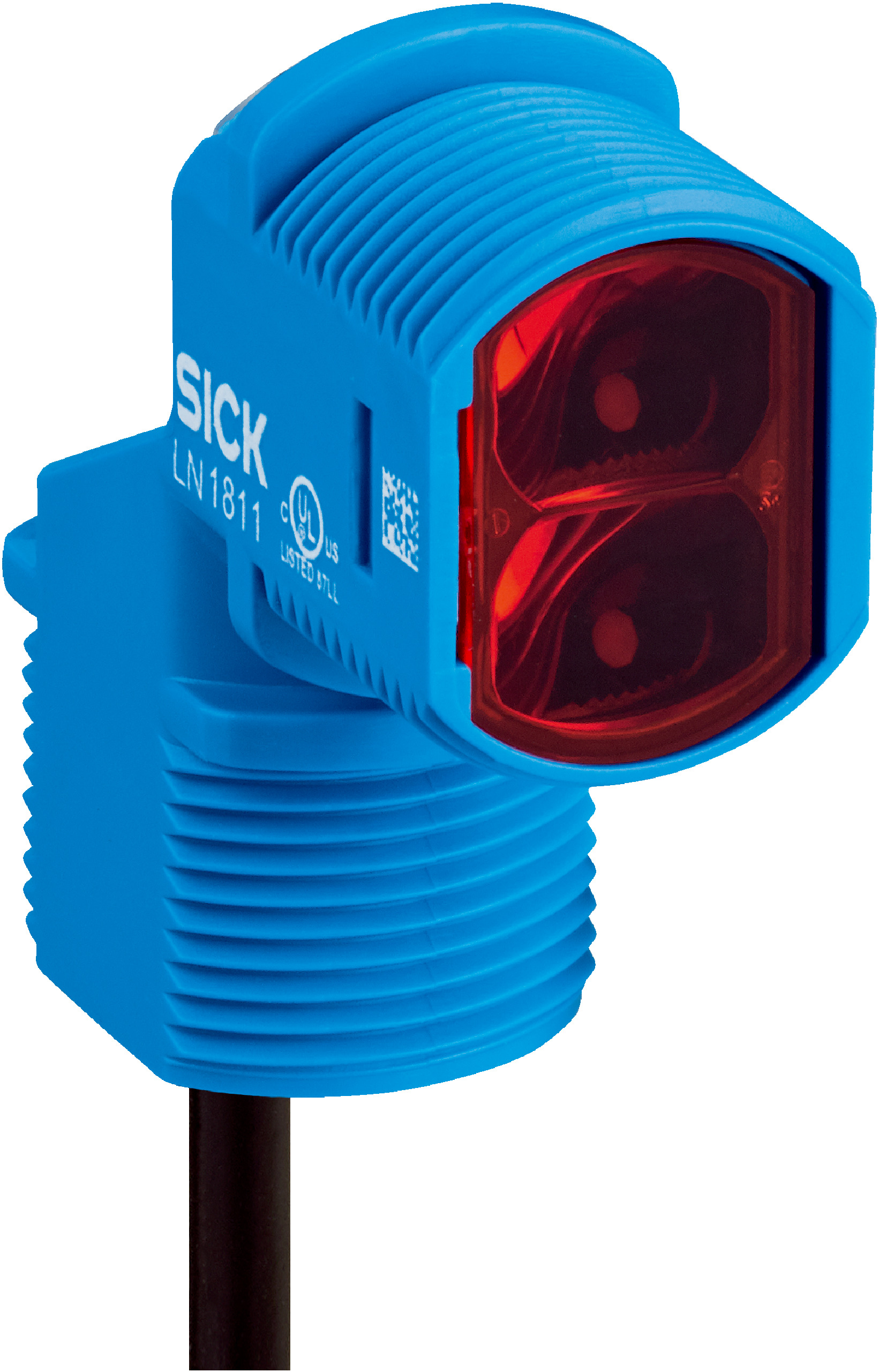

Photoelectric Proximity Sensor M18 | IP67 Rated | 500 kHz Switching Frequency | Red Light | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a high switching frequency of 500 kHz and a sensing range of up to 700 mm. With its durable IP67 rated enclosure and visible red light, this sensor is perfect for manufacturing process control and safety detection in machinery, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Light wavelength: 625 nm
- Light spot size at 1000 mm: Ø 25 mm
- Dimensions (H x L x W): 43mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range up to 700 mm
- Hybrid housing design with M18 thread diameter
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and conveyor systems
- Safety and presence detection in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTE18-4AB1G2 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
