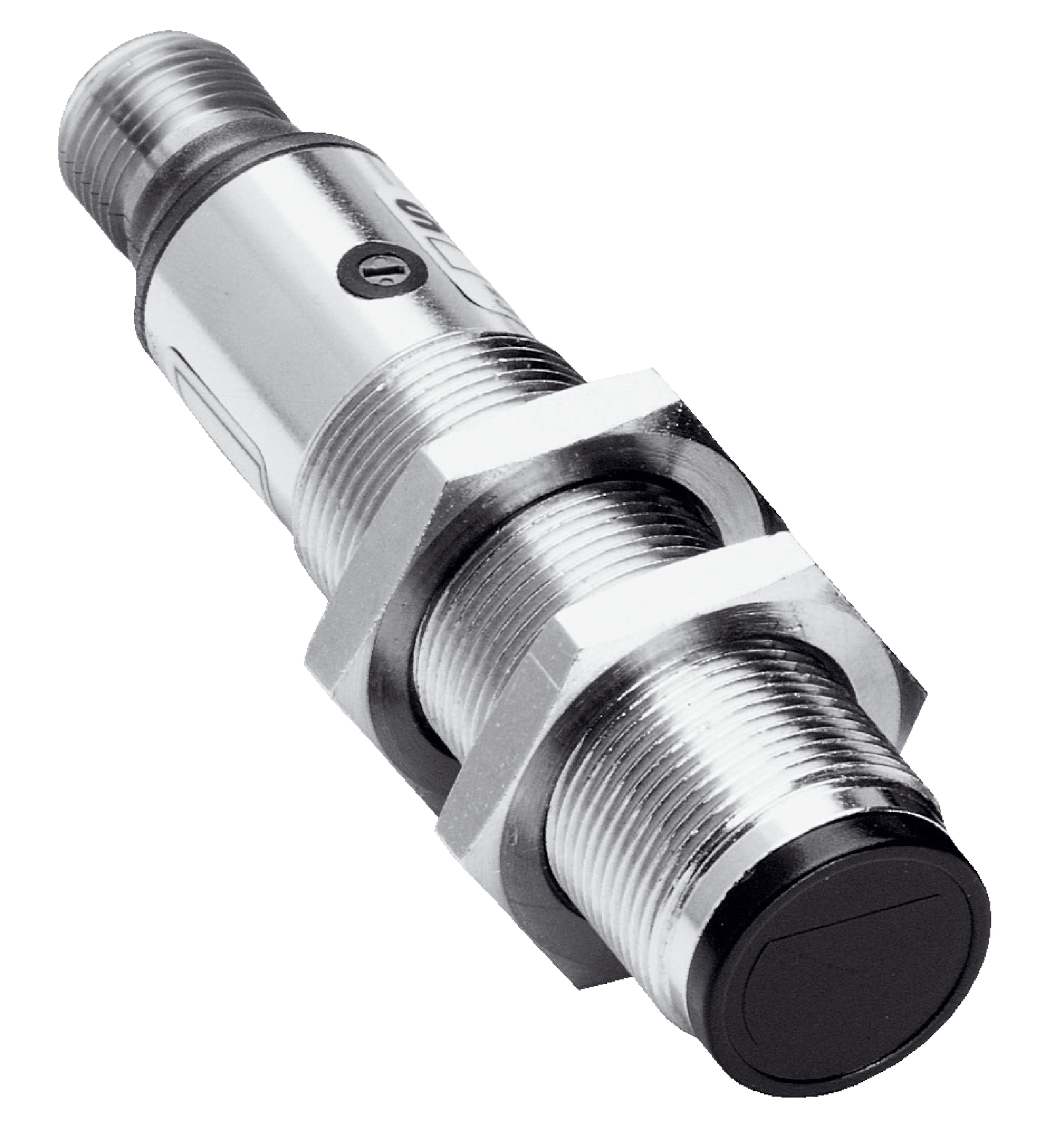

Photoelectric Proximity Sensor M18 | IP67 Rated | Fast Response Time ≤ 2 ms | Selectable Light/Dark Switching | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a fast response time of ≤ 2 ms and a selectable light/dark switching mode, this sensor is perfect for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor M18, Infrared Proximity Sensor, SICK VTE18 Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Protection class: III
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +70 °C
- Housing material: Metal, nickel-plated brass
- Optics material: Plastic, PMMA
- Connection type: Male connector M12, 4-pin
- Dimensions (H x L x W): 18mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Cylindrical metal housing with nickel-plated brass
- Sensing range from 5 mm to 350 mm, max 400 mm
- Infrared LED light source with approx. 2.8° focus and angle of dispersion
- Selectable light/dark switching mode via control cable
- High switching frequency of 250 Hz and fast response time ≤ 2 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from –25 °C to +70 °C
- Connection via male M12 4-pin connector
- Circuit protection included
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

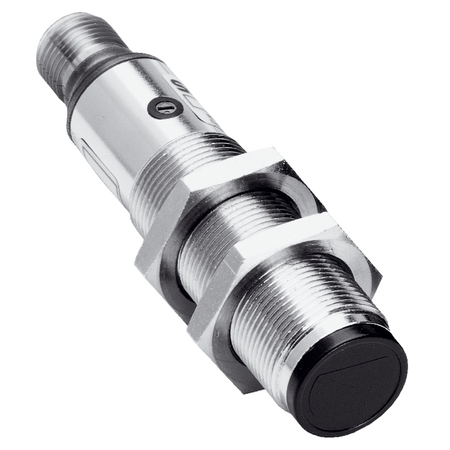

The SICK VTE18-4P4240 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
