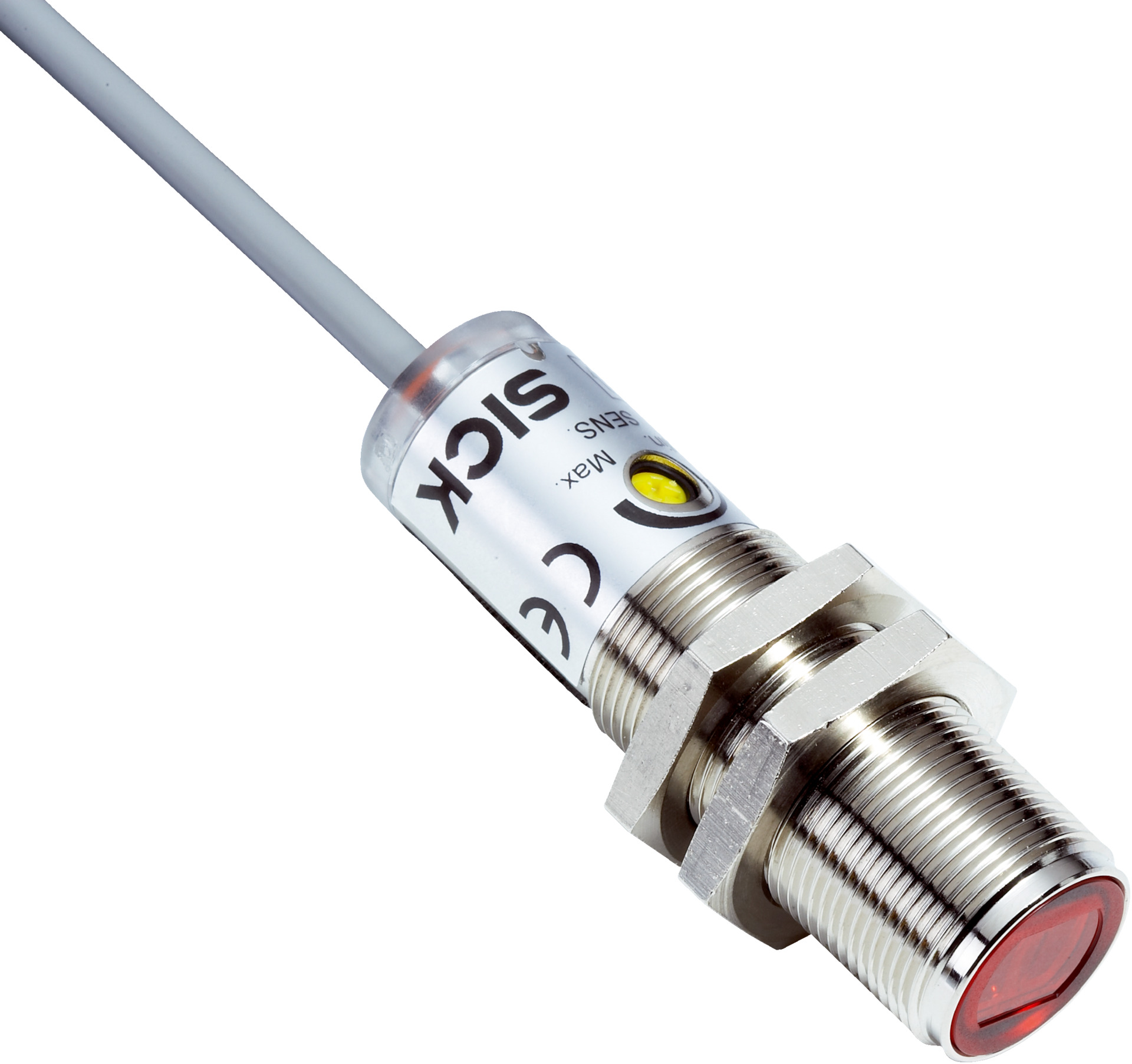

Photoelectric Proximity Sensor M18 | IP67 Rated | Fast Response Time | Selectable Light/Dark Switching | by SICK
The Photoelectric Proximity Sensor M18 is designed for industrial automation, featuring a sensing range of 1 mm to 1100 mm and a fast response time of ≤ 0.5 ms. With an IP67 rating for dust and water protection, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Cable: 4-wire, 2 m length, PVC material
- Protection class: III
- Housing material: Nickel-plated brass and polycarbonate
- Optics material: PMMA plastic
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm up to 1100 mm
- Potentiometer adjustment with 270° for sensing range
- Cylindrical metal housing with M18 x 1 thread diameter
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- Selectable light/dark switching mode via control cable
- Cable connection with 4-wire, 2 m length, PVC material
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VTE180-2P41182 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
