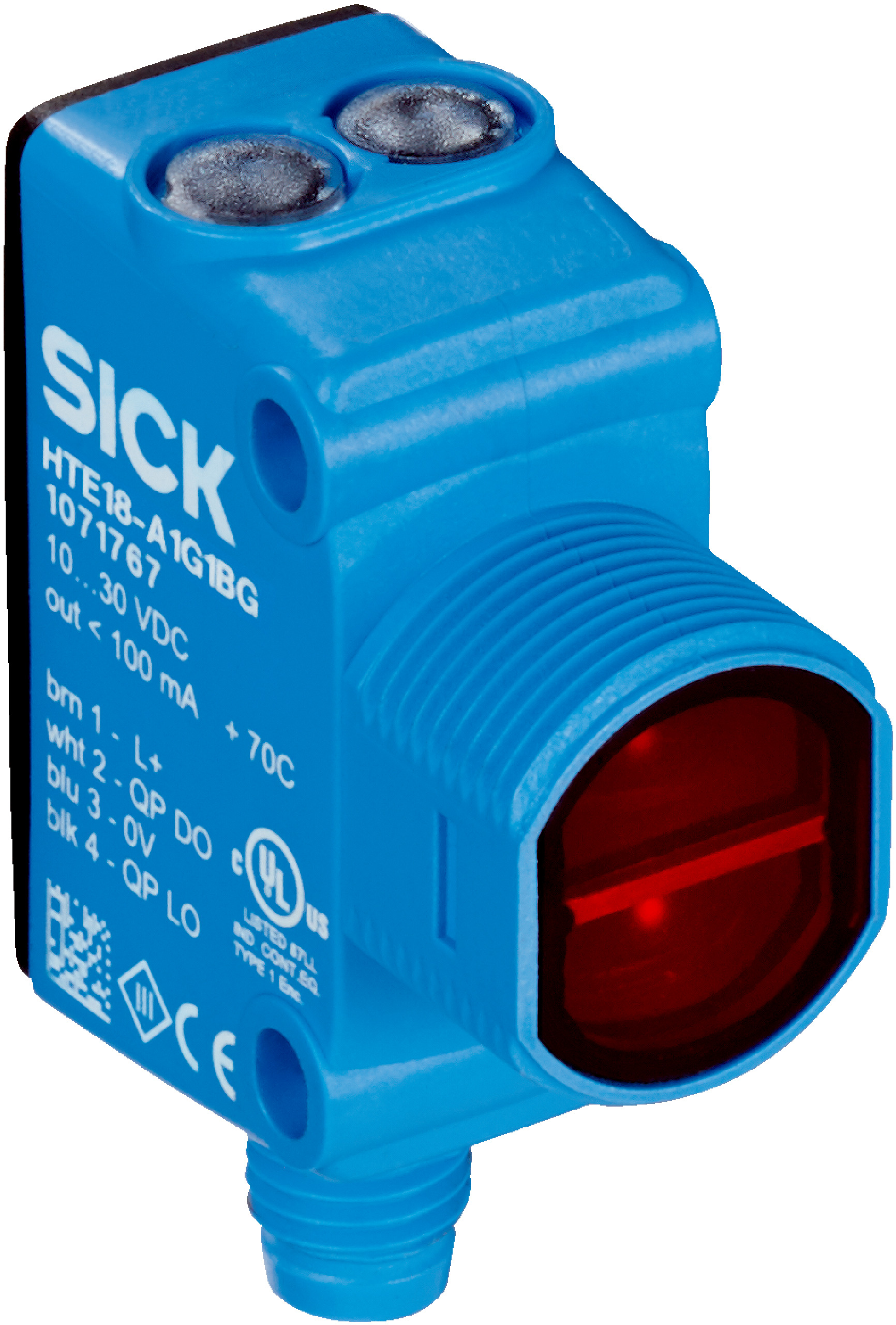

Photoelectric Proximity Sensor M18 | IP67 & IP69K Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor M18 is designed for industrial automation, featuring a sensing range of 10 mm to 250 mm and a fast response time of ≤ 0.5 ms. With a robust IP67 and IP69K rating, it’s perfect for harsh environments, ensuring reliable object detection and safety monitoring in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP and NPN, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M8, 4-pin
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- Weight: 18 g
- Dimensions (H x L x W): 45mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with blue color
- Sensing range from 10 mm to 250 mm, max up to 1000 mm
- Infrared LED light source with 850 nm wavelength
- Signal strength light bar for easy adjustment
- M18 threaded housing for head/side mounting
- Switching output options: PNP and NPN with dark switching mode
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- High protection rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -40 °C to +70 °C
- Electromagnetic compatibility compliant with EN 60947-5-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

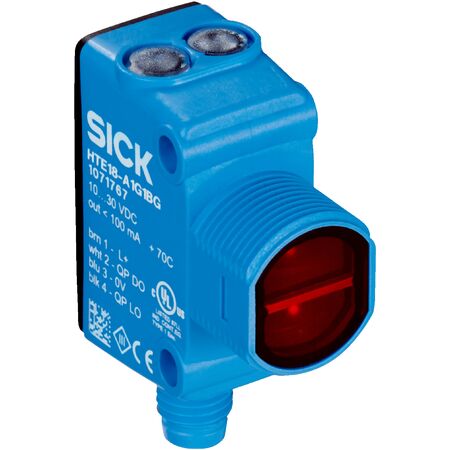

The SICK HTE18-A3A1BB Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
