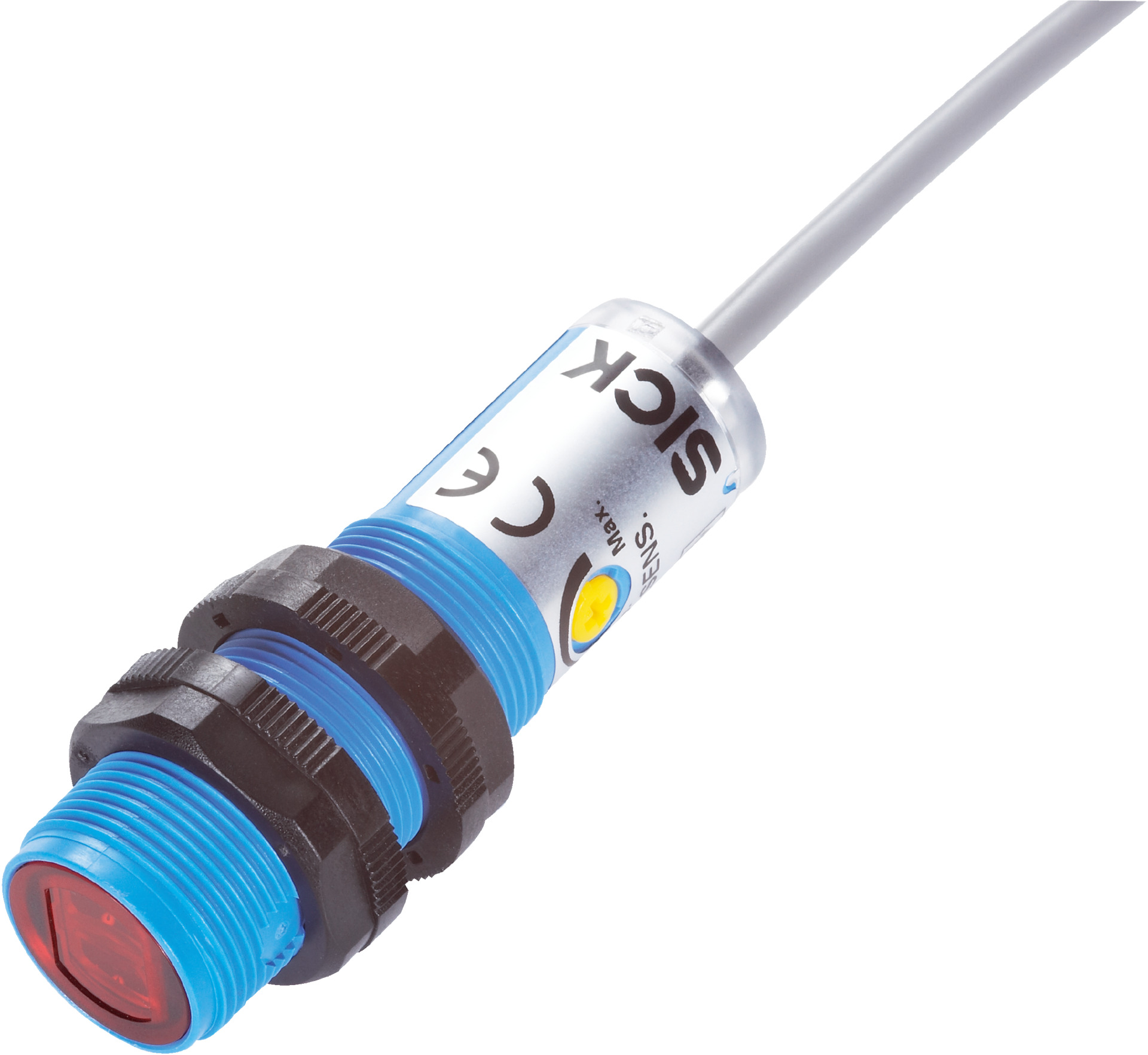

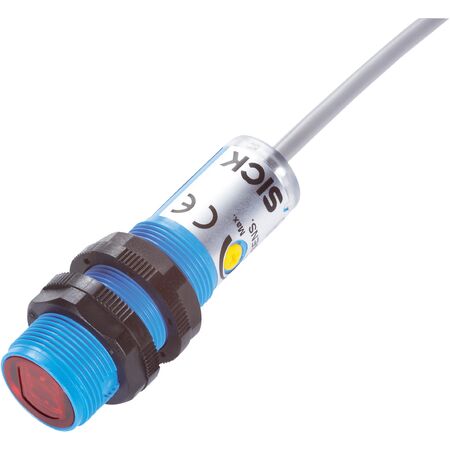

Photoelectric Proximity Sensor | NPN Output | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor VTE180-2N41147 is designed for industrial automation, featuring a fast response time of ≤ 0.5 ms and an NPN switching output. With a robust IP67 enclosure and a sensing range of up to 500 mm, it's perfect for object detection and safety monitoring in manufacturing processes. Built for reliability, this sensor operates efficiently in temperatures from -25 °C to +55 °C, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Ambient operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 350 mm, max 500 mm
- Axial optical axis with approx. 1.5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range control
- NPN switching output with selectable light/dark switching mode
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Operating temperature range from –25 °C to +55 °C
- Includes fastening nuts for easy installation
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2N41147 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
