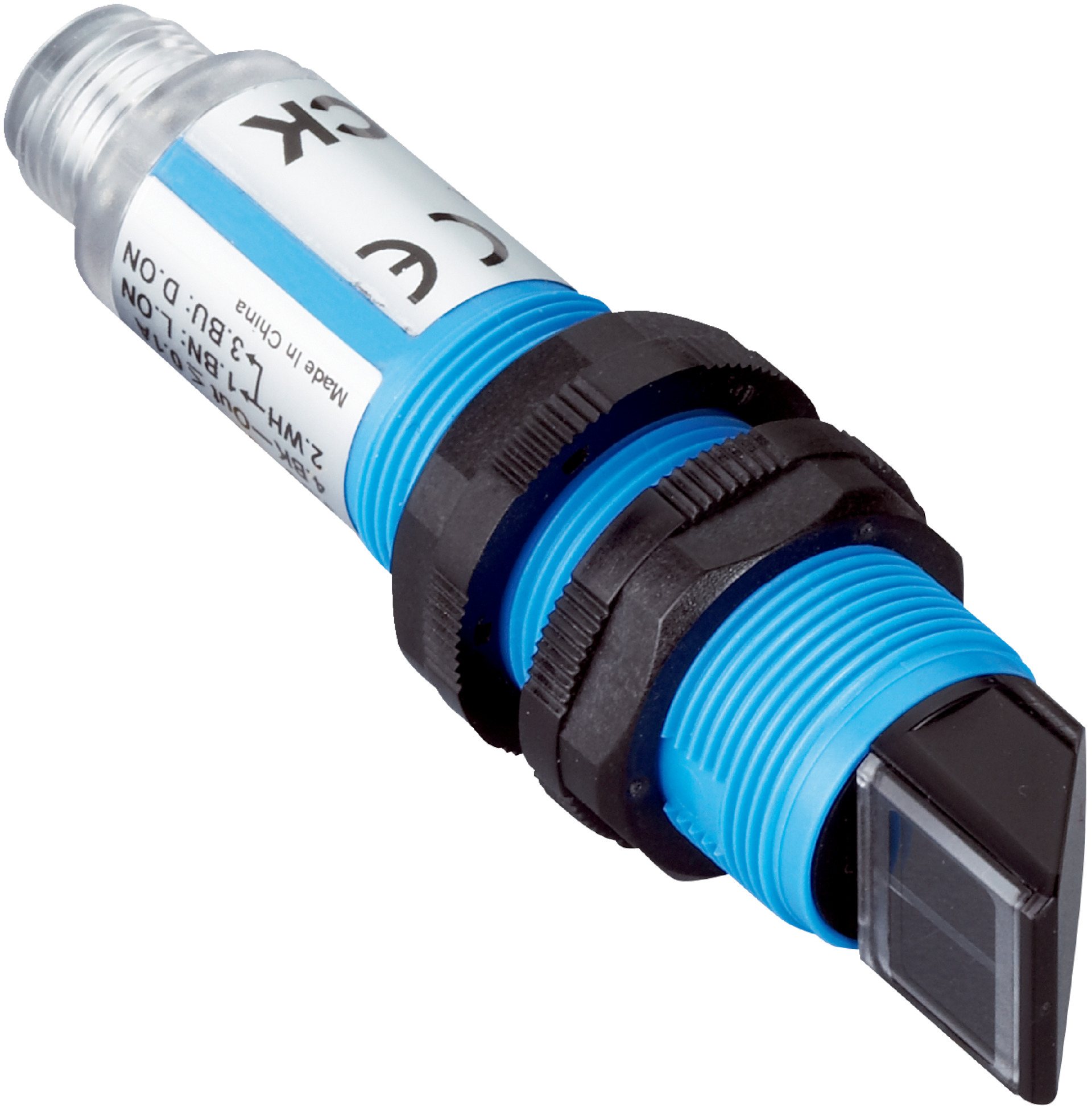

Photoelectric Proximity Sensor | NPN Output | IP67 Rated | 1 mm to 350 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 1 mm to 350 mm and a robust IP67 enclosure. With a visible red light LED and a high switching frequency of 1,000 Hz, this sensor is perfect for position sensing and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 1 mm to 350 mm (max 450 mm)
- Light source: LED, visible red light, 645 nm wavelength
- Focus and angle of dispersion: Approx. 1.5°
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Weight: 62 g
- Dimensions (H x L x W): 18mm x 76.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 350 mm (max 450 mm)
- Radial optical axis with approx. 1.5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range
- NPN switching output with light/dark switching mode
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Operating temperature range from -25 °C to +55 °C
- Cable connection with 2 m length and PVC material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2N41149 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
