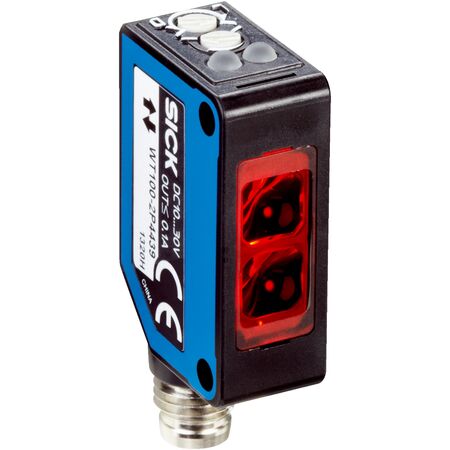

Photoelectric Proximity Sensor WT100-2N3439 | NPN Output | IP67 Rated | Fast Response Time | by SICK
The WT100-2N3439 Photoelectric Proximity Sensor is designed for industrial automation, featuring a high switching frequency of 1000 Hz and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for object detection in manufacturing processes and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN transistor
- Switching mode: Light/dark selectable via rotary switch
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: M8, 3-pin connector
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 632 nm
- Sensing range up to 1200 mm, typical 750 mm
- Rectangular housing design with light emission
- Potentiometer adjustment for sensing range
- NPN switching output with selectable light/dark switching mode
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
- Includes mounting bracket BEF-W100-A
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WT100-2N3439 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
