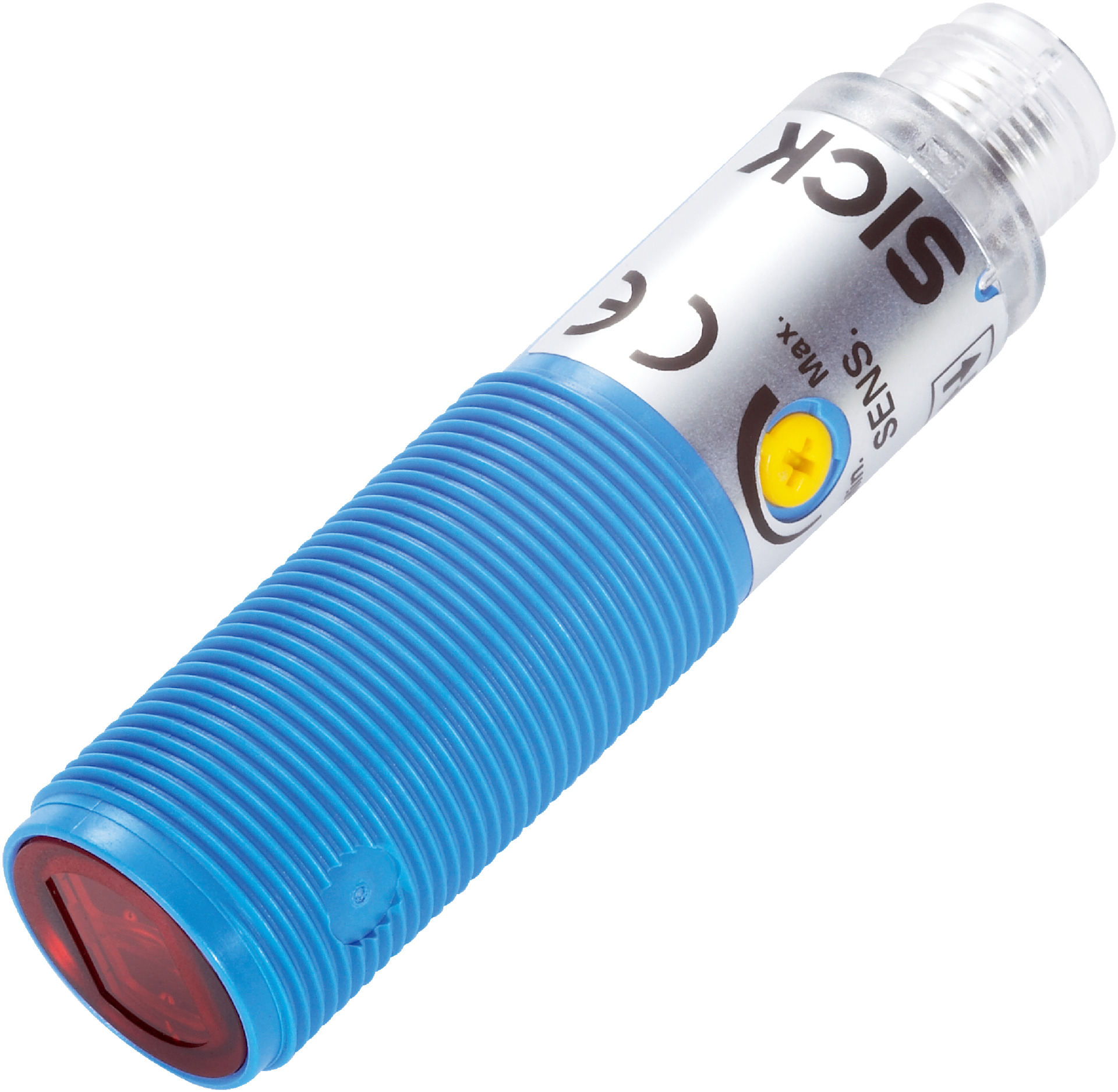

Photoelectric Proximity Sensor | NPN Output | IP67 Rated | Red Light LED | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a visible red light LED and NPN output. With a sensing range of 1 mm to 350 mm and a high switching frequency of 1000 Hz, it’s perfect for manufacturing process control and safety monitoring in machinery. Built to withstand harsh environments with an IP67 rating, this sensor ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN with max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control cable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, D
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 18 g
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 350 mm (max 500 mm)
- Cylindrical plastic housing with M18 x 1 thread diameter
- Axial optical axis with approx. 1.5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range control
- NPN switching output with selectable light/dark switching mode
- High switching frequency of 1000 Hz and response time ≤ 0.5 ms
- Protection class III and enclosure rating IP67 for harsh environments
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2N42447 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
