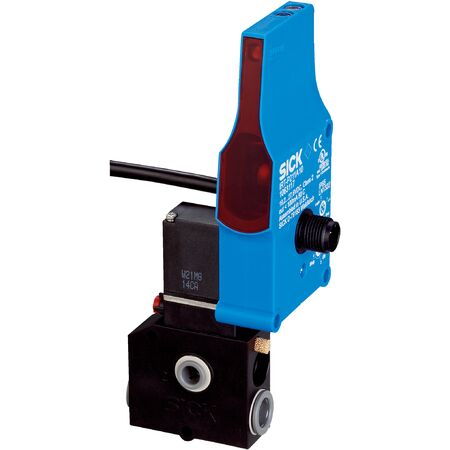

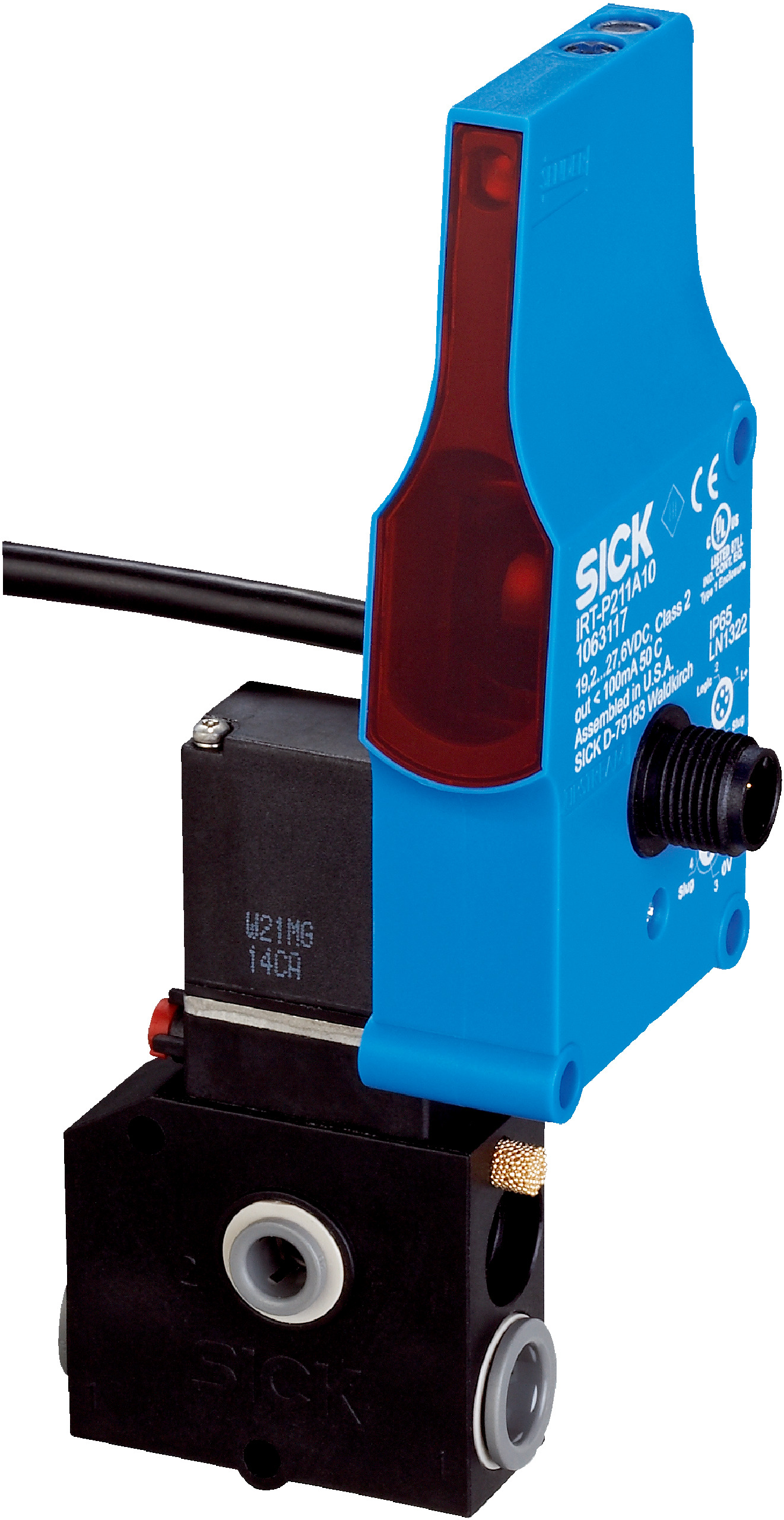

Photoelectric Proximity Sensor with Pneumatic Valve | 60mm to 900mm Sensing Range | IP65 Rated | by SICK
The Photoelectric Proximity Sensor with Pneumatic Valve is designed for industrial automation, featuring a sensing range from 60 mm to 900 mm and an integrated 3/2-way solenoid valve. With a fast 2 ms response time and high switching frequency of 250 Hz, it ensures precise object detection and control in pneumatic systems, making it ideal for manufacturing processes and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Actuator: Pneumatic, valve on board (3/2-way solenoid valve)
- Max. number of sensors: Approx. 30 to 50 depending on configuration
- Sensing range: 60 mm to 900 mm
- Focus angle: 7°
- Light source: Infrared LED
- Light spot size: Ø 20 mm at 500 mm distance
- Adjustment: Potentiometer with 9 turns
- Supply voltage: 19.2 V DC to 27.6 V DC
- Current consumption: 20 mA
- Switching output: PNP transistor output
- Output current max: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP65
- Shock and vibration resistance: IEC 68 compliant
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Medium for valves: Compressed air or neutral gases filtered, lubricated or non-lubricated
- Operating pressure range: 2 bar to 8 bar
- Air flow rate: Approx. 20 Nl/min
- Ventilation capacity: Approx. 130 Nl/min
- Coil ratings: 24 V DC, 1 W
- Dimensions (H x L x W): 135mm x 49mm x 50mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Integrated pneumatic 3/2-way solenoid valve with valve on board
- Sensing range from 60 mm to 900 mm with 7° focus angle
- Infrared LED light source with 20 mm light spot at 500 mm
- Potentiometer adjustment with 9 turns for sensitivity tuning
- High switching frequency of 250 Hz and fast 2 ms response time
- IP65 rated enclosure for dust and water protection
- Shock and vibration resistant according to IEC 68 standards
- Connection via male M12 4-pin connector and daisy chain cable option
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pneumatic and electrical sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection and positioning
- Pneumatic control systems requiring integrated solenoid valve
- Safety and control in manufacturing processes
- ZoneControl applications in automated environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient pneumatic valve reduces air consumption and energy waste
- Durable ABS plastic housing extends product lifespan and reduces waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IRT-P211E31S02 Photoelectric Proximity Sensor with Pneumatic Valve is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
