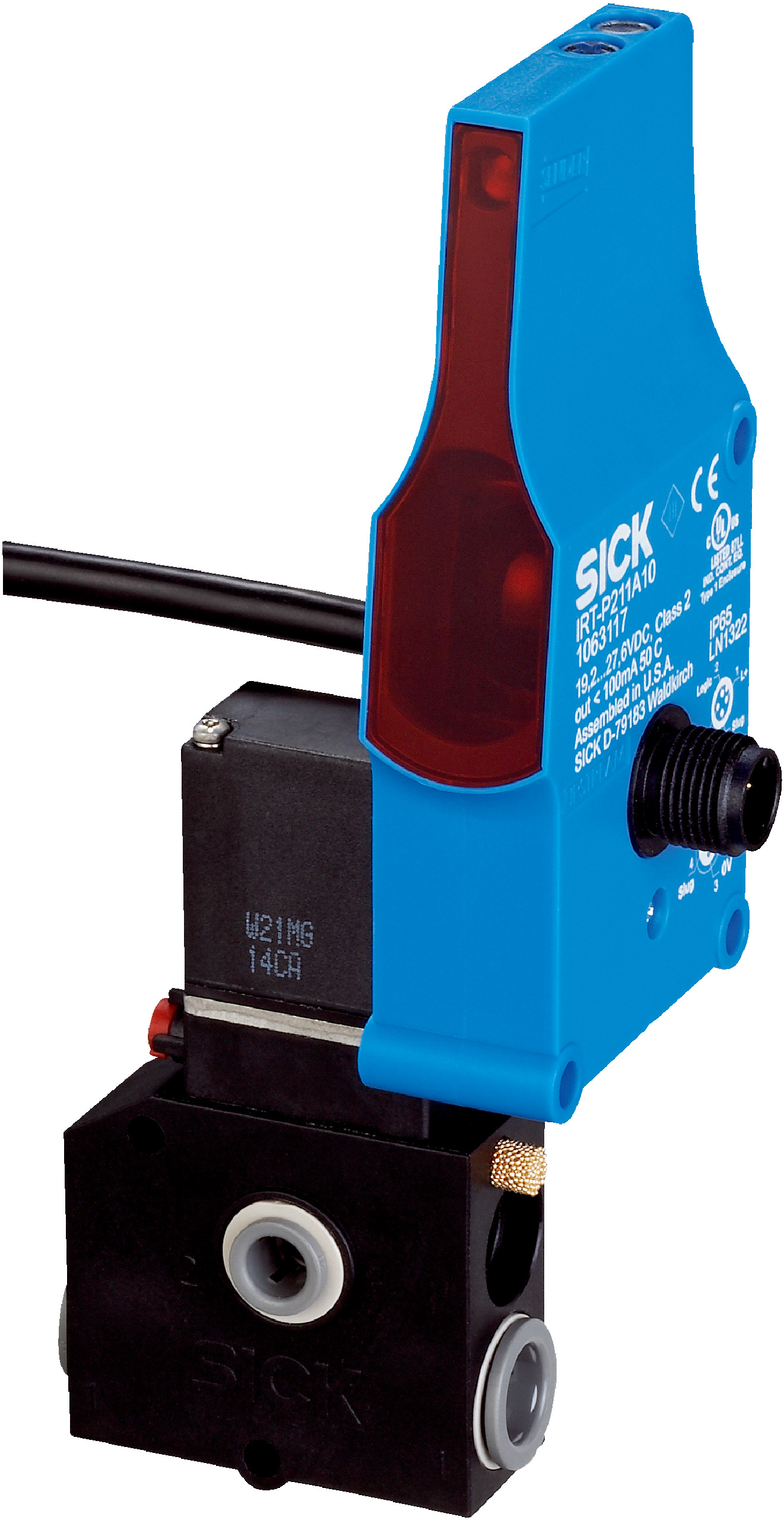

Photoelectric Proximity Sensor with Pneumatic Valve | 60 mm to 900 mm Sensing Range | IP65 Rated | by SICK
The Photoelectric Proximity Sensor with Pneumatic Valve is designed for industrial automation, featuring a sensing range from 60 mm to 900 mm and an integrated pneumatic 3/2-way valve for efficient operation. With a fast 2 ms response time and IP65 enclosure rating, it’s perfect for object detection and pneumatic control systems in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Actuator: Pneumatic 3/2-way valve, air to drive (NC)
- Max. number of sensors: Approx. 30 to 50 depending on configuration
- Logical principle: Single accumulation with single release
- Sensing range: 60 mm to 900 mm
- Light source: Infrared LED
- Light spot size: Ø 20 mm at 500 mm distance
- Angle of dispersion: 7°
- Adjustment: Potentiometer with 9 turns
- Supply voltage: 19.2 V DC to 27.6 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Time functions: Off delay with adjustable delay 0 s to 5 s
- Connection type: Male M12 4-pin connector; daisy chain cable with female M12 4-pin connector (1.2 m)
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic ABS
- Enclosure rating: IP65
- Shock and vibration resistance: IEC 68 compliant
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Medium for valves: Compressed air or neutral gases, filtered, non-lubricated or lubricated
- Coil ratings: 24 V DC, 1 W
- Air flow rate: Approx. 1.4 SCFM
- Operating pressure range: 0 psi to 65 psi
- Dimensions (H x L x W): 152mm x 49mm x 60mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Integrated pneumatic 3/2-way valve with air to drive (NC) operation
- Sensing range from 60 mm to 900 mm with 7° focus angle
- Infrared LED light source with 20 mm light spot at 500 mm
- Potentiometer adjustment with 9 turns for sensitivity tuning
- High switching frequency of 250 Hz and fast 2 ms response time
- IP65 rated enclosure for dust and water protection
- Shock and vibration resistant according to IEC 68 standards
- Connection via male M12 4-pin connector and daisy chain cable option
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and pneumatic systems to ensure proper sensor and valve integration and compliance with safety standards.
Applications
- Industrial automation for object detection
- Pneumatic control systems requiring integrated valve operation
- ZoneControl applications in manufacturing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable ABS plastic housing extends product lifespan
- Supports compressed air systems with filtered, non-lubricated gases
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IRTF-P211A10 Photoelectric Proximity Sensor with Pneumatic Valve is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
