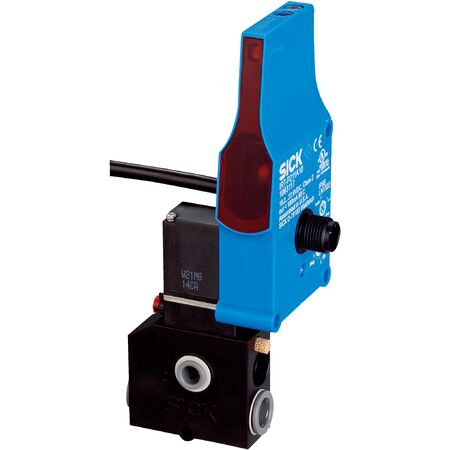

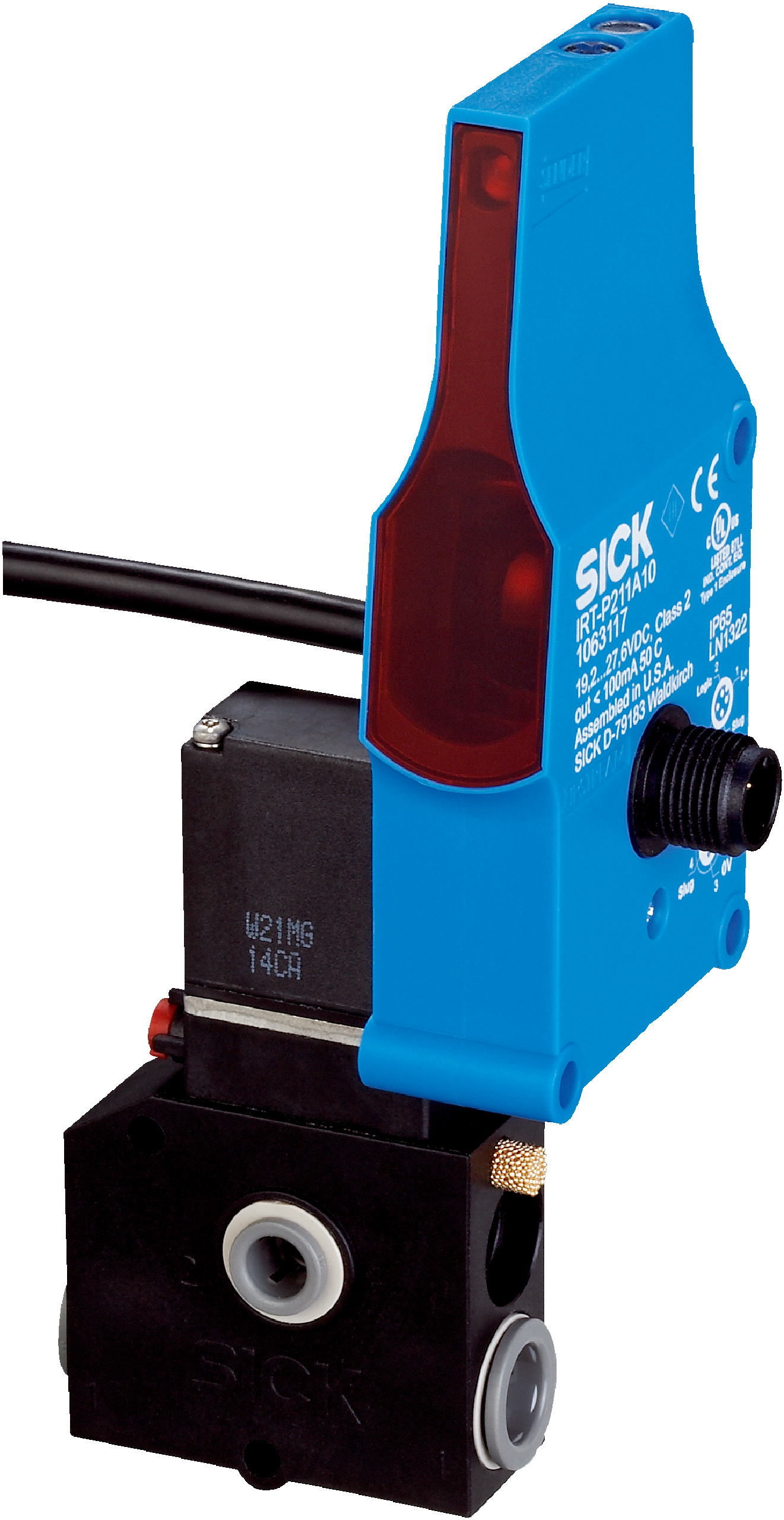

Photoelectric Proximity Sensor with Pneumatic Valve | Background Suppression | 60mm to 900mm Sensing Range | IP65 Rated | by SICK
The Photoelectric Proximity Sensor with Pneumatic Valve is designed for precise object detection in industrial automation. With a sensing range of 60 mm to 900 mm and a focus angle of 7°, it ensures reliable performance. The IP65 rated ABS housing protects against dust and water, making it ideal for pneumatic control systems and applications requiring background suppression.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Actuator: Pneumatic 3/2-way valve, air to brake (NO)
- Sensing range: 60 mm to 900 mm
- Focus angle: 7°
- Light source: Infrared LED
- Light spot size: 20 mm diameter at 500 mm
- Adjustment: Potentiometer with 9 turns
- Supply voltage: 19.2 V DC to 27.6 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Time functions: Off delay, 0 s to 5 s
- Connection type: Male M12 4-pin connector; daisy chain cable with female M12 4-pin connector (2.5 m)
- Protection class: III
- Enclosure rating: IP65
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 175 g
- Housing material: Plastic, ABS
- Operating pressure range (valve): 2 bar to 8 bar
- Air flow rate: Approx. 20 Nl/min
- Ventilation capacity: Approx. 130 Nl/min
- Dimensions (H x L x W): 147mm x 49mm x 50mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Integrated pneumatic 3/2-way valve with air to brake (NO) operation
- Sensing range from 60 mm to 900 mm with 7° focus angle
- LED infrared light source with 20 mm light spot at 500 mm
- Potentiometer adjustment with 9 turns
- IP65 rated plastic ABS housing for protection against dust and water
- Shock and vibration resistant according to IEC 68
- Fast response time of 2 ms and switching frequency of 250 Hz
- Connection via male M12 4-pin connector and daisy chain cable with female M12 connector
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and pneumatic systems to ensure proper sensor integration and safety compliance.
Applications
- Industrial automation for object detection
- Pneumatic valve control systems
- ZoneControl applications requiring background suppression
- Compressed air or neutral gas valve actuation
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient pneumatic valve control reduces compressed air consumption
- Durable IP65 housing extends product lifespan, reducing waste
- Low power consumption with 20 mA current draw
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IRTF-P210E41S09 Photoelectric Proximity Sensor with Pneumatic Valve is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
