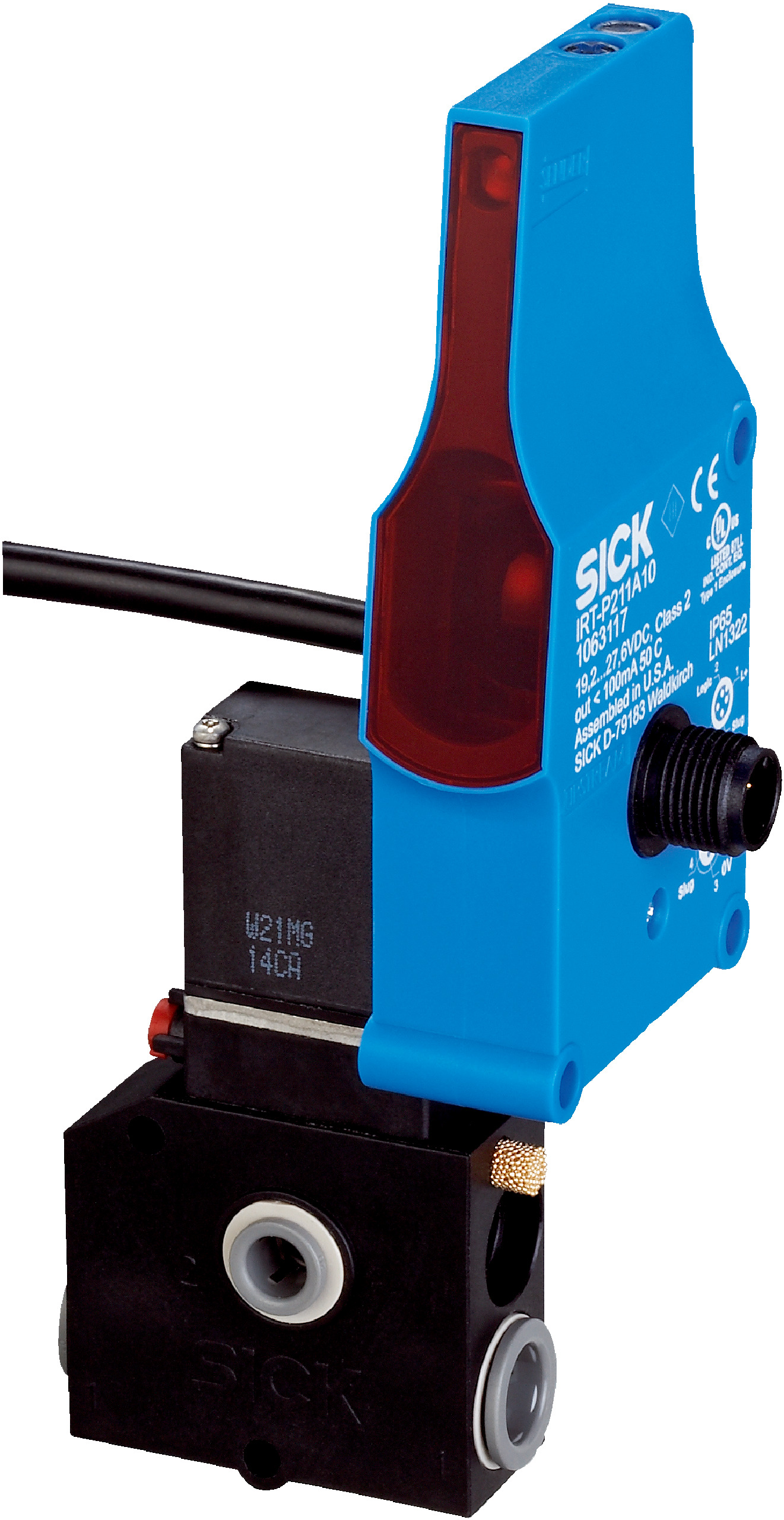

Photoelectric Proximity Sensor with Pneumatic Valve | Background Suppression | 60mm to 900mm Sensing Range | IP65 Rated | by SICK
The Photoelectric Proximity Sensor with Pneumatic Valve is designed for industrial automation, featuring background suppression and a sensing range from 60 mm to 900 mm. Ideal for pneumatic control systems, this sensor ensures reliable object detection and positioning, with an IP65 rated enclosure for dust and water resistance, making it perfect for demanding manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 147mm x 49mm x 50mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Integrated pneumatic 3/2-way valve with air to brake (NO) operation
- Sensing range from 60 mm to 900 mm with 7° focus angle
- LED light source with 20 mm light spot size at 500 mm
- Potentiometer adjustment with 9 turns
- IP65 rated enclosure for dust and water resistance
- Shock and vibration resistant according to IEC 68
- Switching output PNP with max output current ≤ 100 mA
- Switching frequency up to 250 Hz and response time of 2 ms
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct electrical and pneumatic connections and compliance with safety standards.
Applications
- Industrial automation for object detection and positioning
- Pneumatic control systems requiring integrated valve operation
- Safety and control in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient pneumatic valve reduces air consumption with approx. 20 Nl/min air flow rate
- Durable ABS plastic housing extends product life and reduces waste
- Low power consumption coil rated at 24 V DC, 1 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

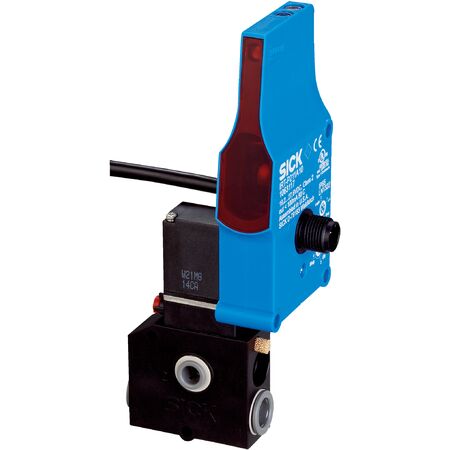

The SICK IRTN-P210E41S08 Photoelectric Proximity Sensor with Pneumatic Valve is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
