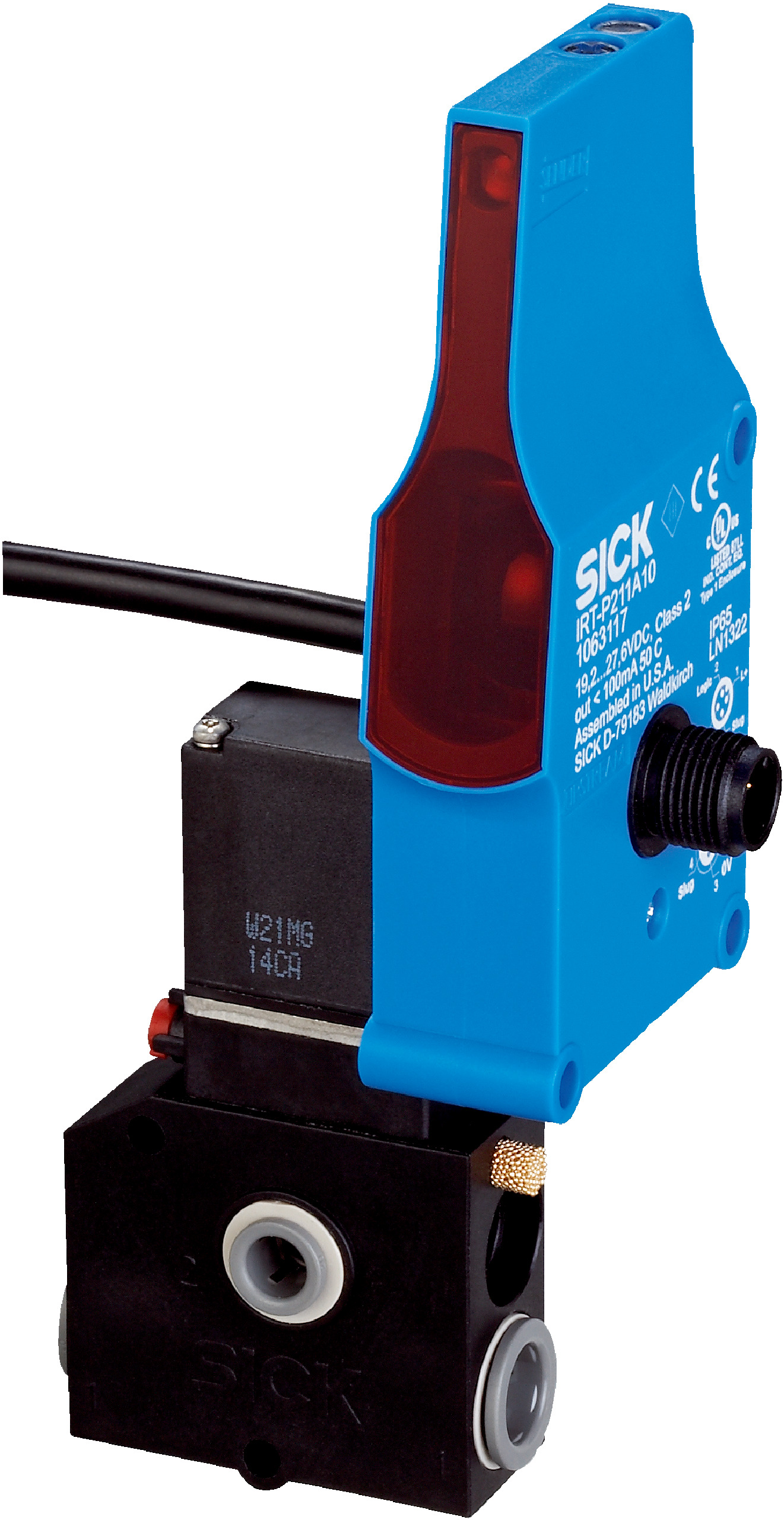

Photoelectric Proximity Sensor with Pneumatic Valve | Background Suppression | 60 mm to 900 mm Sensing Range | IP65 Rated | by SICK
The Photoelectric Proximity Sensor with Pneumatic Valve is designed for precise object detection in industrial automation. With a sensing range of 60 mm to 900 mm and a fast 2 ms response time, it excels in pneumatic valve control systems. Its IP65 rated enclosure ensures durability in harsh environments, making it ideal for applications requiring background suppression and efficient compressed air control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Actuator: Pneumatic, valve on board (3/2-way valve, air to drive NC)
- Sensing range: 60 mm to 900 mm
- Light source: LED infrared light
- Focus angle: 7°
- Light spot size: Ø 20 mm at 500 mm
- Adjustment: Potentiometer, 9 turns
- Supply voltage: 19.2 V DC to 27.6 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector; daisy chain cable with female M12 connector (2 m)
- Protection class: III
- Enclosure rating: IP65
- Housing material: Plastic, ABS
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Operating pressure range: 0 psi to 65 psi
- Air flow rate: Approx. 1.4 SCFM
- Ventilation capacity: Approx. 1.4 SCFM
- MTTFD: 1,227 years
- B10D: 20,000,000 switching cycles
- Dimensions (H x L x W): 152mm x 49mm x 60mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Integrated pneumatic 3/2-way valve with air to drive (NC) mode
- Sensing range from 60 mm to 900 mm with 7° focus angle
- LED light source with Ø 20 mm light spot at 500 mm
- Potentiometer adjustment with 9 turns
- High switching frequency of 250 Hz and fast 2 ms response time
- IP65 rated enclosure for dust and water resistance
- Shock and vibration resistant according to IEC 68
- Connection via male M12 4-pin connector and daisy chain cable option
- Operating temperature range from -10 °C to +55 °C
- UL certified (File No. NRKH.E189383 & NRKH7.E189383)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and pneumatic systems to ensure proper sensor and valve integration and compliance with safety standards.
Applications
- Industrial automation for object detection
- Pneumatic valve control systems
- ZoneControl applications requiring background suppression
- Compressed air or neutral gas control in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient pneumatic valve control reduces compressed air consumption
- Durable design minimizes replacement frequency and waste
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IRT-P212A10 Photoelectric Proximity Sensor with Pneumatic Valve is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
