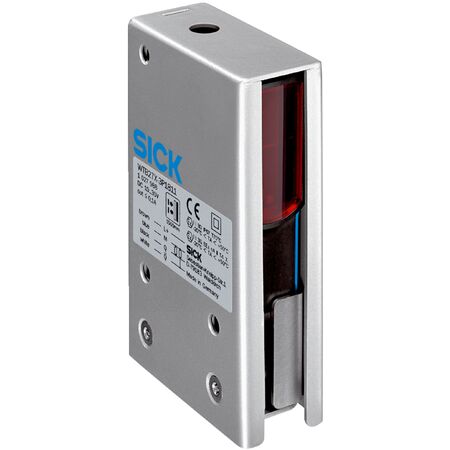

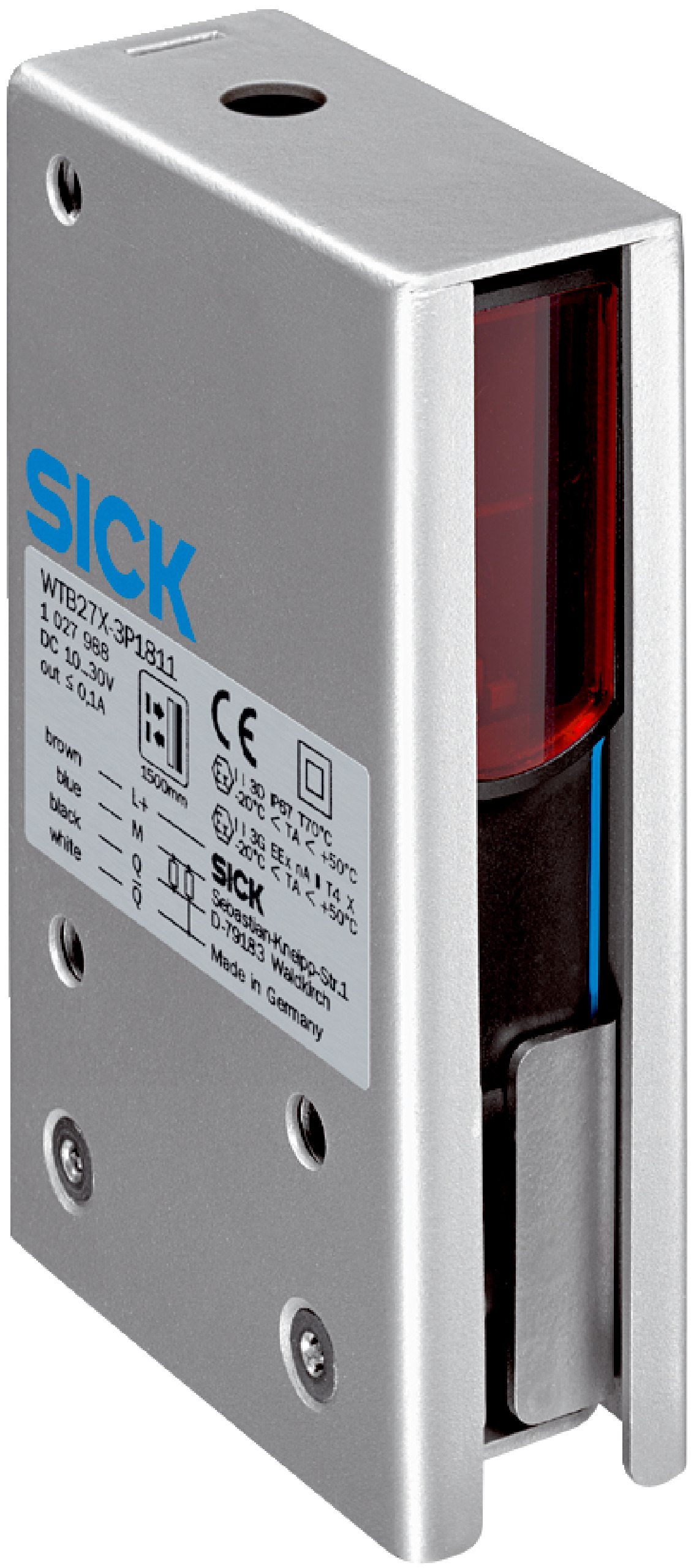

Photoelectric Proximity Sensor | PNP Output | IP64 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor WTE27X-3P1861S01 is designed for industrial automation and explosive area sensing applications. With a PNP output, IP64 enclosure rating, and a fast response time of ≤ 1.5 ms, it ensures reliable object detection in challenging environments. Built for durability with a stainless steel housing, this sensor is perfect for machine safety and control systems, providing efficient performance in a wide temperature range from -20°C to +50°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 1.5 ms
- Switching frequency: 350 Hz
- Connection type: 4-wire cable, 10 m length
- Cable material: Plastic, PVC
- Protection class: II
- Enclosure rating: IP64
- Housing material: Metal (Stainless steel V2A 1.4301) and ABS plastic
- Optics material: PMMA plastic
- Ambient operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +75°C
- Certifications: CCC, IECEx, ATEX, cULus, China-RoHS, Photobiological safety (DIN EN 62471)
- Dimensions (H x L x W): 112.3mm x 70.4mm x 31.4mm
- Weight: 0.75 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range from 10 mm to 300 mm
- Rectangular metal housing with stainless steel and ABS plastic
- Potentiometer adjustment for sensitivity
- Light/dark switching mode with complementary PNP output
- High switching frequency of 350 Hz and fast response time ≤ 1.5 ms
- Cable connection with 4-wire, 10 m PVC cable
- Protection class II and enclosure rating IP64
- Certified for explosive areas with IECEx and ATEX markings
- Wide ambient operating temperature range from -20°C to +50°C
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with electrical and explosive area safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Explosive area sensing applications
- Machine safety and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- Low power consumption with efficient LED light source
- Certified compliance with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTE27X-3P1861S01 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hazardous area sensing applications.
