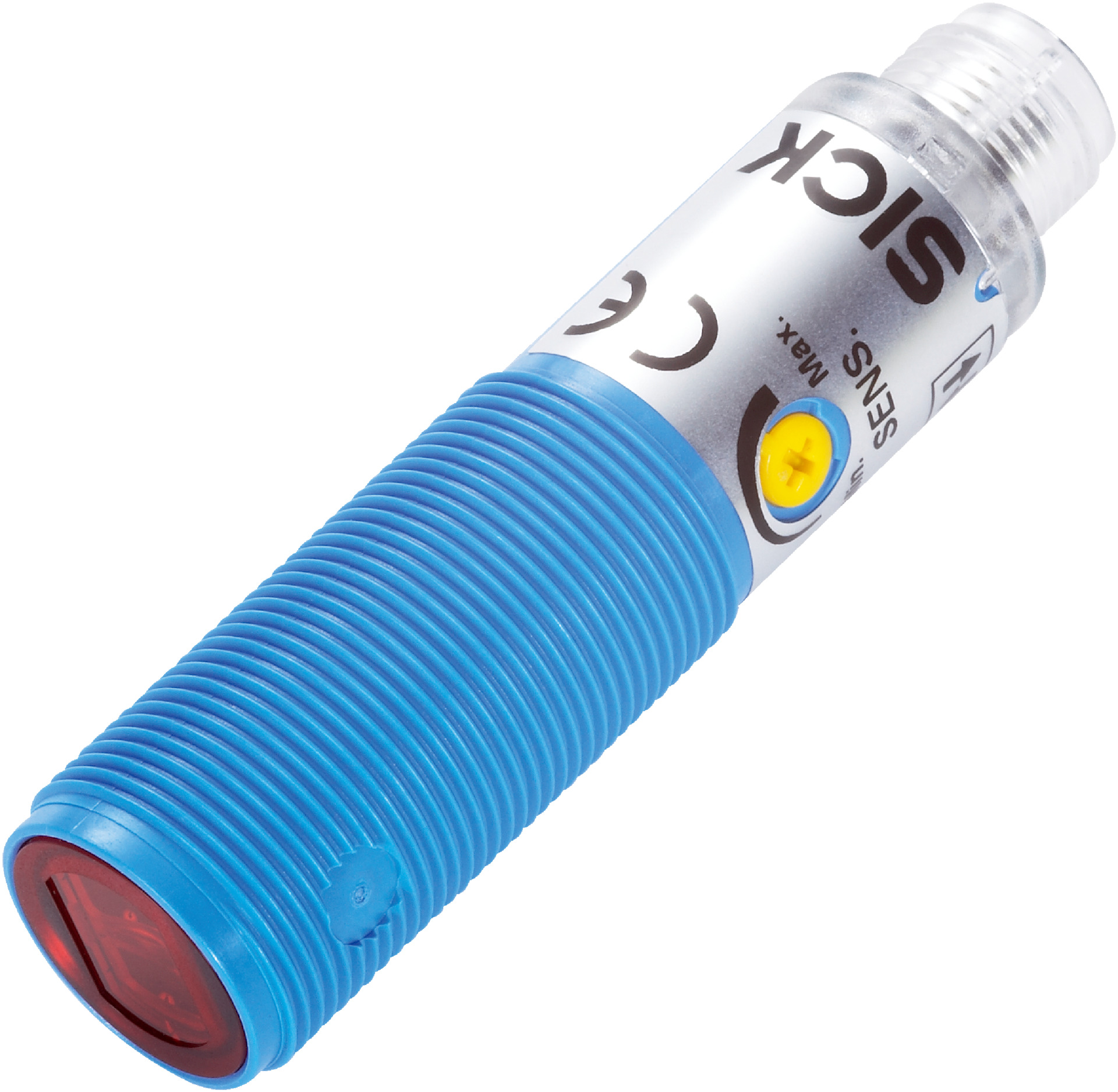

Photoelectric Proximity Sensor | PNP Output | IP67 Rated | 1mm to 350mm Sensing Range | by SICK
The Photoelectric Proximity Sensor VTE180-2P42447 is designed for precise object detection in industrial automation. With a sensing range of 1mm to 350mm and a robust IP67 enclosure, it ensures reliable performance in challenging environments. Ideal for manufacturing lines and safety monitoring, this sensor features a high switching frequency of 1,000 Hz and a quick response time of ≤ 0.5 ms, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP with max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control cable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1,982 years
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 350 mm (max 500 mm)
- Axial optical axis with approx. 1.5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range control
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- PNP switching output with selectable light/dark switching mode
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Operating temperature range from -25 °C to +55 °C
- Includes fastening nuts for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VTE180-2P42447 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
