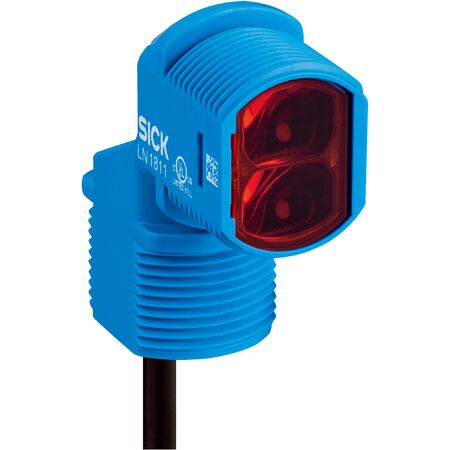

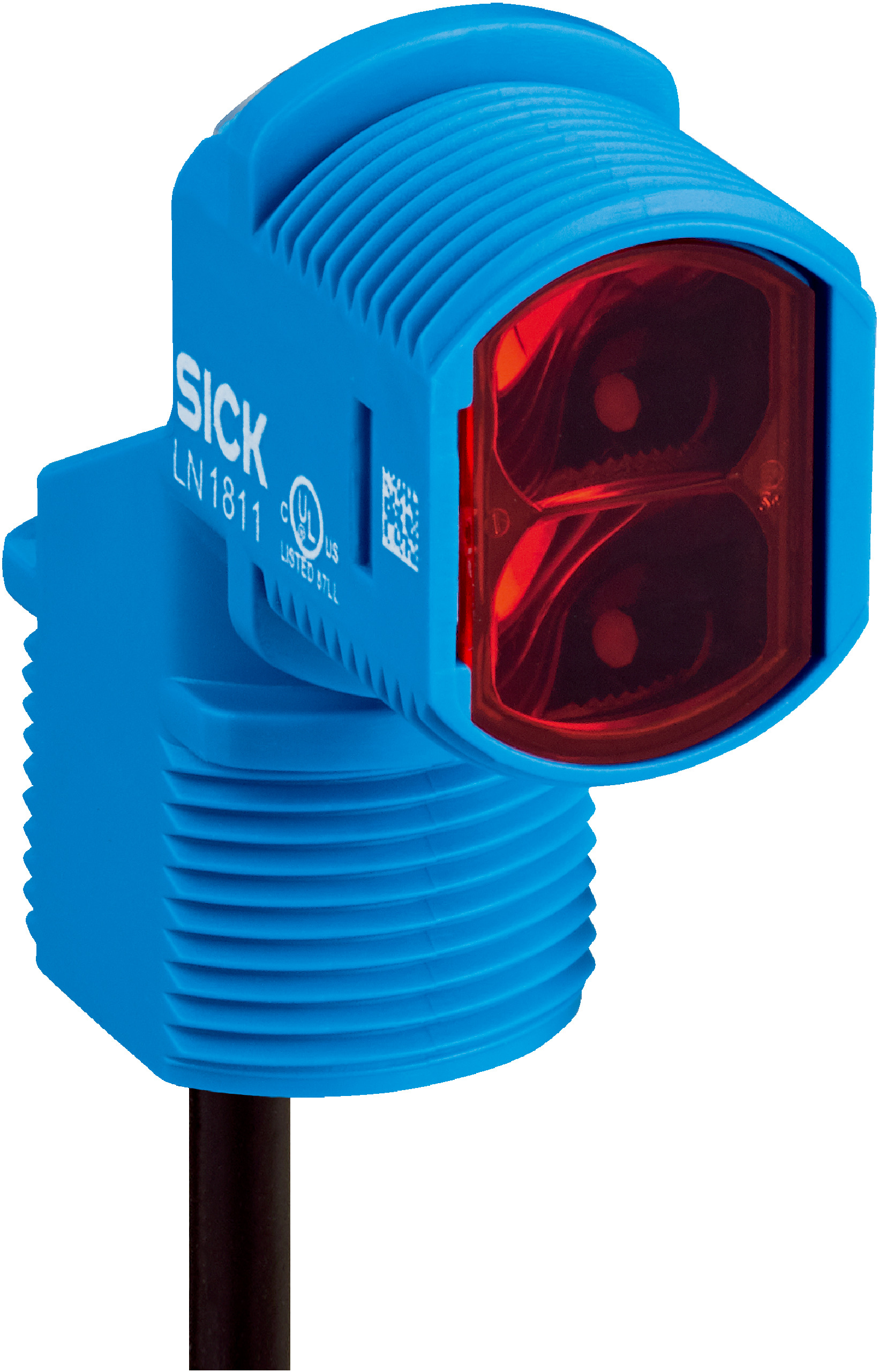

Photoelectric Proximity Sensor | PNP Output | IP67 Rated | 740mm Sensing Range | by SICK
The Photoelectric Proximity Sensor ZTE18-4FZAB8 is designed for industrial automation, featuring a PNP output and a maximum sensing range of up to 740 mm. With an IP67 rated enclosure, it ensures reliable performance in dusty and wet environments. Ideal for manufacturing process control and safety systems, this sensor operates efficiently within a wide temperature range of -40°C to +55°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable with RJ11 6-pin connector, 150 mm length
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 43mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red LED light source with 625 nm wavelength
- Maximum sensing range up to 740 mm
- Hybrid housing design in blue color
- M18 mounting system for head or base installation
- High switching frequency of 500 kHz
- Dark switching mode with PNP output
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and conveyor systems
- Safety and security systems requiring proximity sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤15 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTE18-4FZAB8 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
