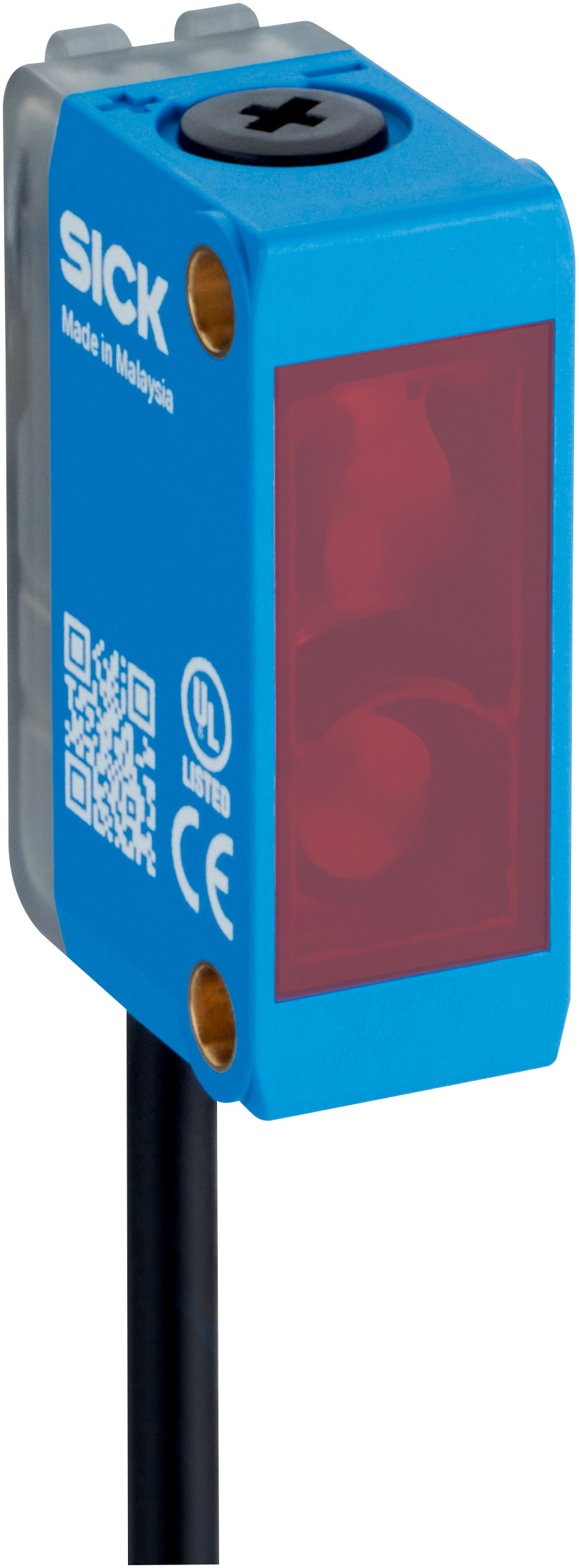

Photoelectric Proximity Sensor | PNP Output | IP67 Rated | 30mm to 900mm Sensing Range | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a PNP output and a sensing range from 30mm to 900mm. With a high switching frequency of 500 Hz and a robust IP67 rated housing, it ensures reliable object detection in harsh environments. Ideal for manufacturing process control and safety monitoring, this sensor operates efficiently within -30 °C to +55 °C, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 1,250 µs
- Switching frequency: 500 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- LED indicators: Green for power, yellow for object detection
- Housing material: Plastic ABS, front screen PMMA
- Cable: 3-wire, 2 m length, PVC insulation
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 30 mm to 900 mm, optimal performance between 80 mm and 190 mm
- PinPoint LED light source with visible red light at 640 nm wavelength
- Point-shaped light spot with diameter of 3.4 mm at 150 mm distance
- LED indicators for power and object detection status
- Adjustable sensing range via potentiometer with 5 rotations
- Operating mode switch for light/dark switching inversion
- High switching frequency of 500 Hz and response time ≤ 1,250 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust plastic ABS housing with IP67 rating for harsh environments
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
- Durable IP67 rated housing minimizes environmental damage and extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

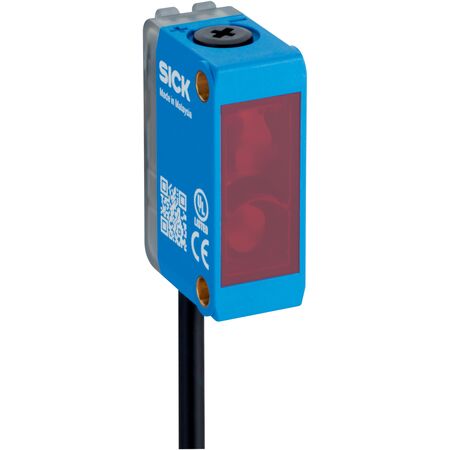

The SICK GTE6SP-1GA1146EZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
