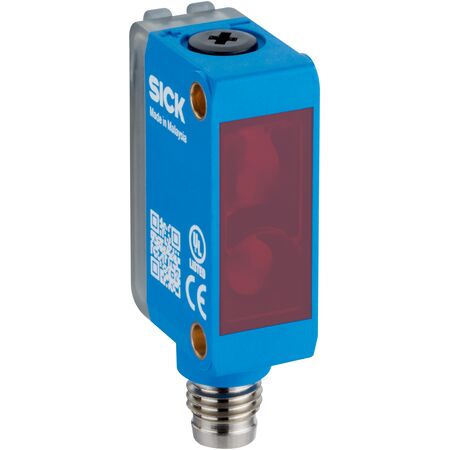

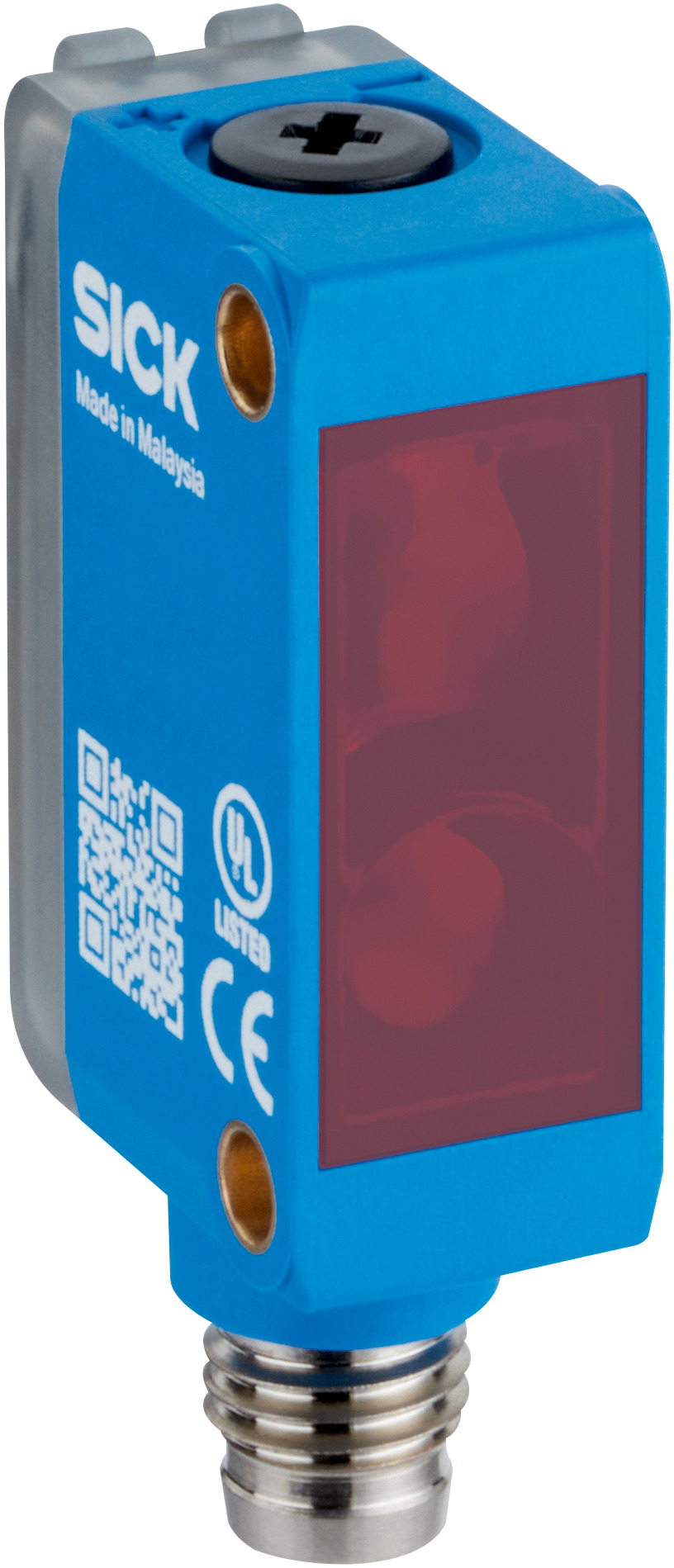

Photoelectric Proximity Sensor | PNP Output | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a PNP light switching output and an impressive sensing range of 30 mm to 900 mm. With a fast response time of ≤ 1,250 µs and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: Without load at 24 V
- Switching output: 1 PNP light switching output
- Output current max: ≤ 100 mA
- Response time: ≤ 1,250 µs
- Switching frequency: 500 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Connector: M8, 3-pin
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Shock resistance: 11 ms, 18 shocks total
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 30 mm to 900 mm, optimal performance between 80 mm and 190 mm
- PinPoint LED light source with visible red light at 640 nm wavelength
- Point-shaped light spot with Ø 3.4 mm at 150 mm distance
- LED indicators for power and object detection status
- Adjustable sensing range via potentiometer with 5 rotations
- Operating mode switch for inverting switching function (light/dark switching)
- High switching frequency of 500 Hz and fast response time ≤ 1,250 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust plastic ABS housing with IP67 rating for dust and water protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTE6SP-21A1146EZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
