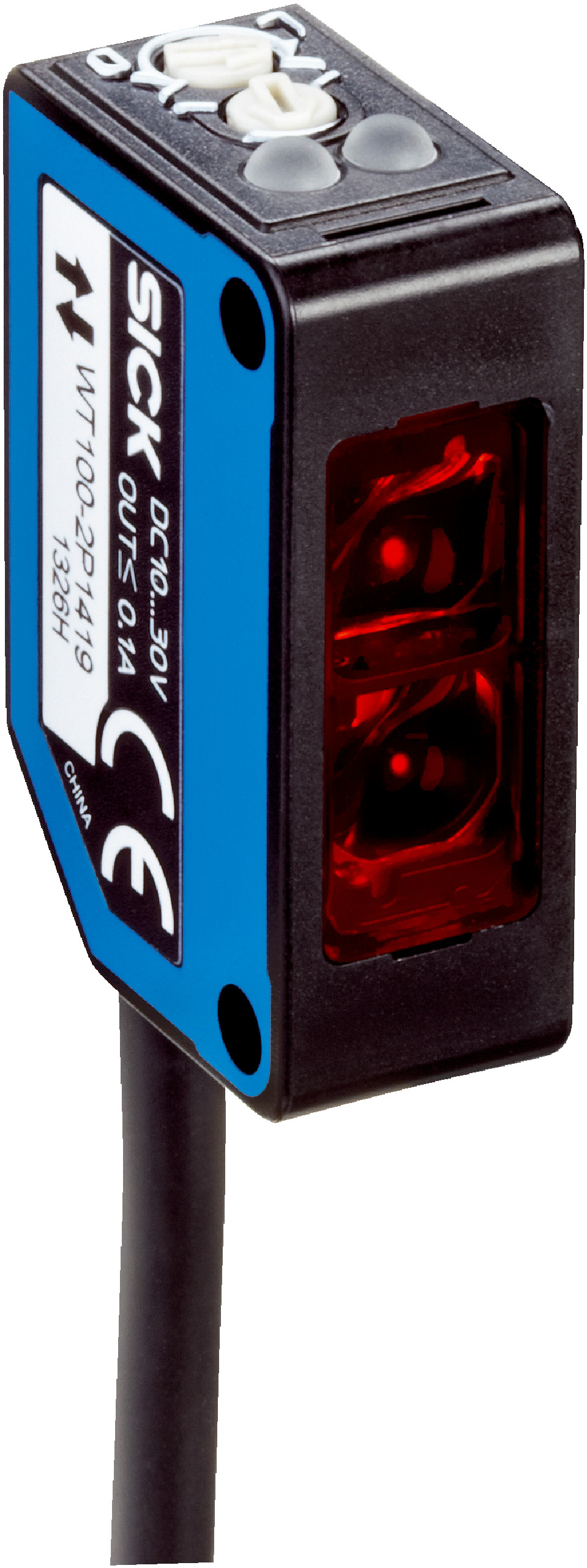

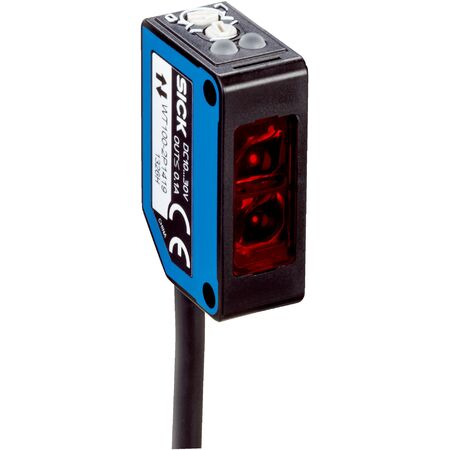

Photoelectric Proximity Sensor WT100-2P1432S02 | PNP Output | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor WT100-2P1432S02 is designed for industrial automation, featuring a PNP output and an impressive sensing range of up to 1200 mm. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for manufacturing process control and safety monitoring, this sensor is built to withstand temperatures from -30°C to +55°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Light source: LED, wavelength 632 nm
- Light spot size at 1000 mm: Ø 75 mm
- Connection type: Cable with Stocko-connector, 300 mm length
- Cable material: Plastic, PUR
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Sensing range up to 1200 mm, typical 750 mm
- LED light source with 632 nm wavelength
- Potentiometer adjustment for sensing range
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +55°C
- Cable connection with Stocko-connector and PUR cable material
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces replacement frequency and waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WT100-2P1432S02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
