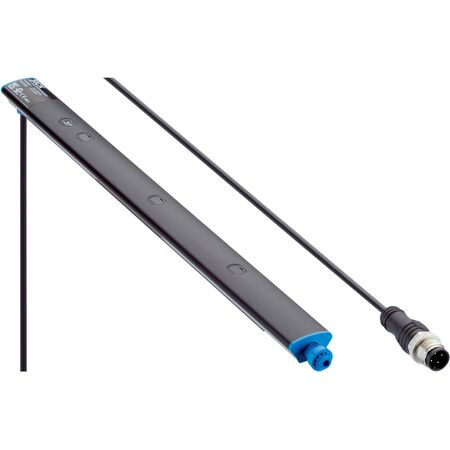

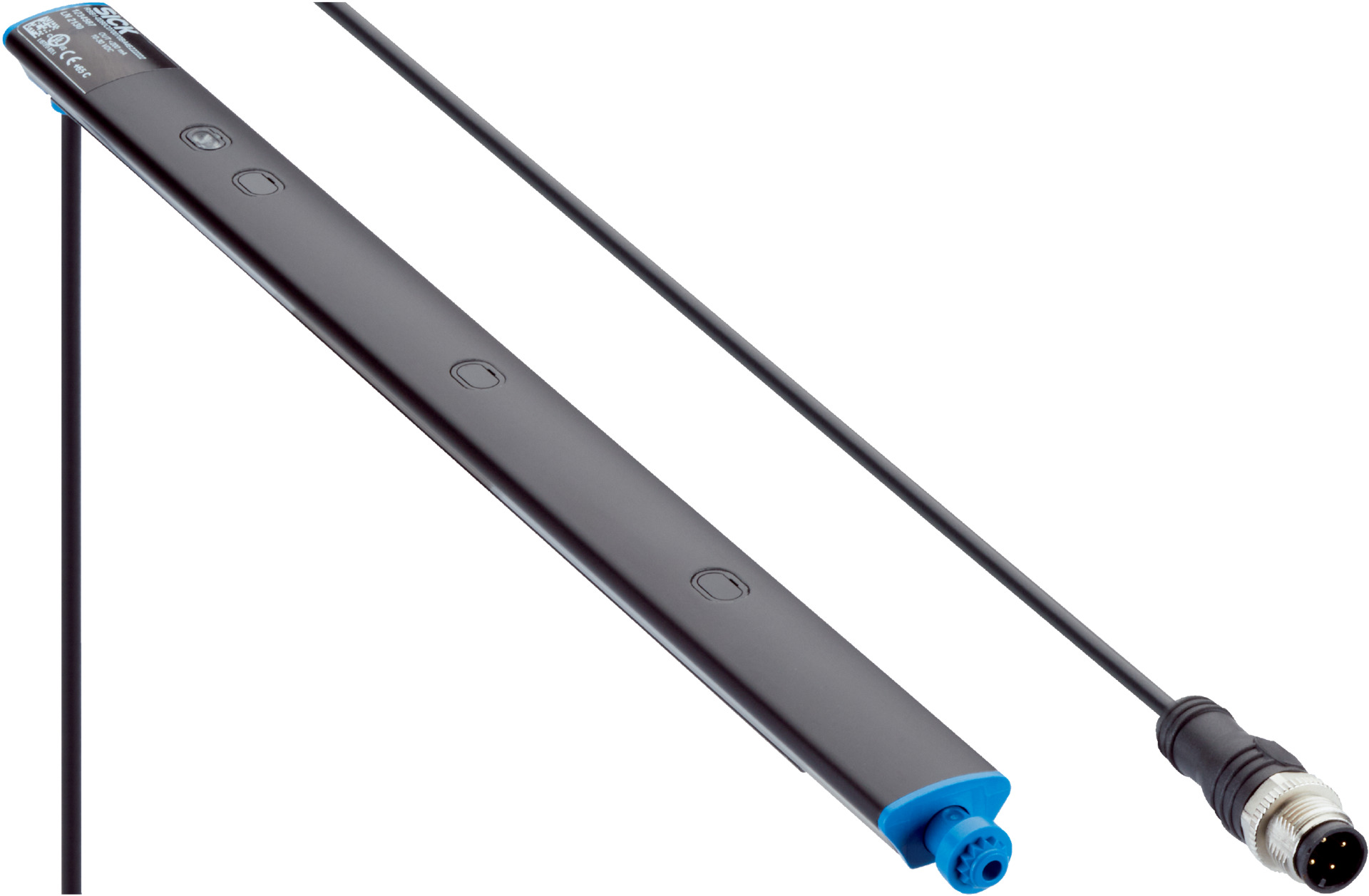

Photoelectric Proximity Sensor | PNP Output | IP67 Rated | Infrared LED | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection, featuring a PNP output and an IP67 rating for robust performance in industrial environments. With a sensing range of 2 mm to 300 mm and a response time of ≤ 1 ms, it’s perfect for detecting flat, perforated, and shiny objects. Built for reliability, this sensor operates in extreme temperatures from -40 °C to +60 °C, making it ideal for various automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 17 mA without load at 24 V
- Output type: PNP dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable with M12 4-pin connector, 150 mm length
- Housing material: Anodised aluminum
- Front screen: PMMA plastic
- Dimensions (H x L x W): 20mm x 17mm x 685mm
- Weight: 0.249 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Four beams with 137 mm beam separation
- LED indicators for power and object presence
- Dark switching PNP output with reverse polarity, overcurrent, and short-circuit protection
- Response time ≤ 1 ms and switching frequency up to 500 Hz
- Robust metal aluminum anodised housing with IP67 rating
- Operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RSB1-0685D137137FZ4BZZZP0D Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
