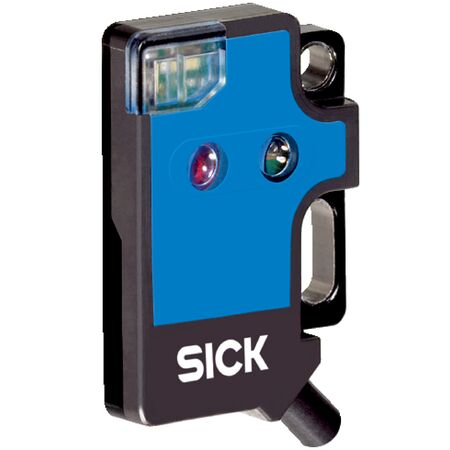

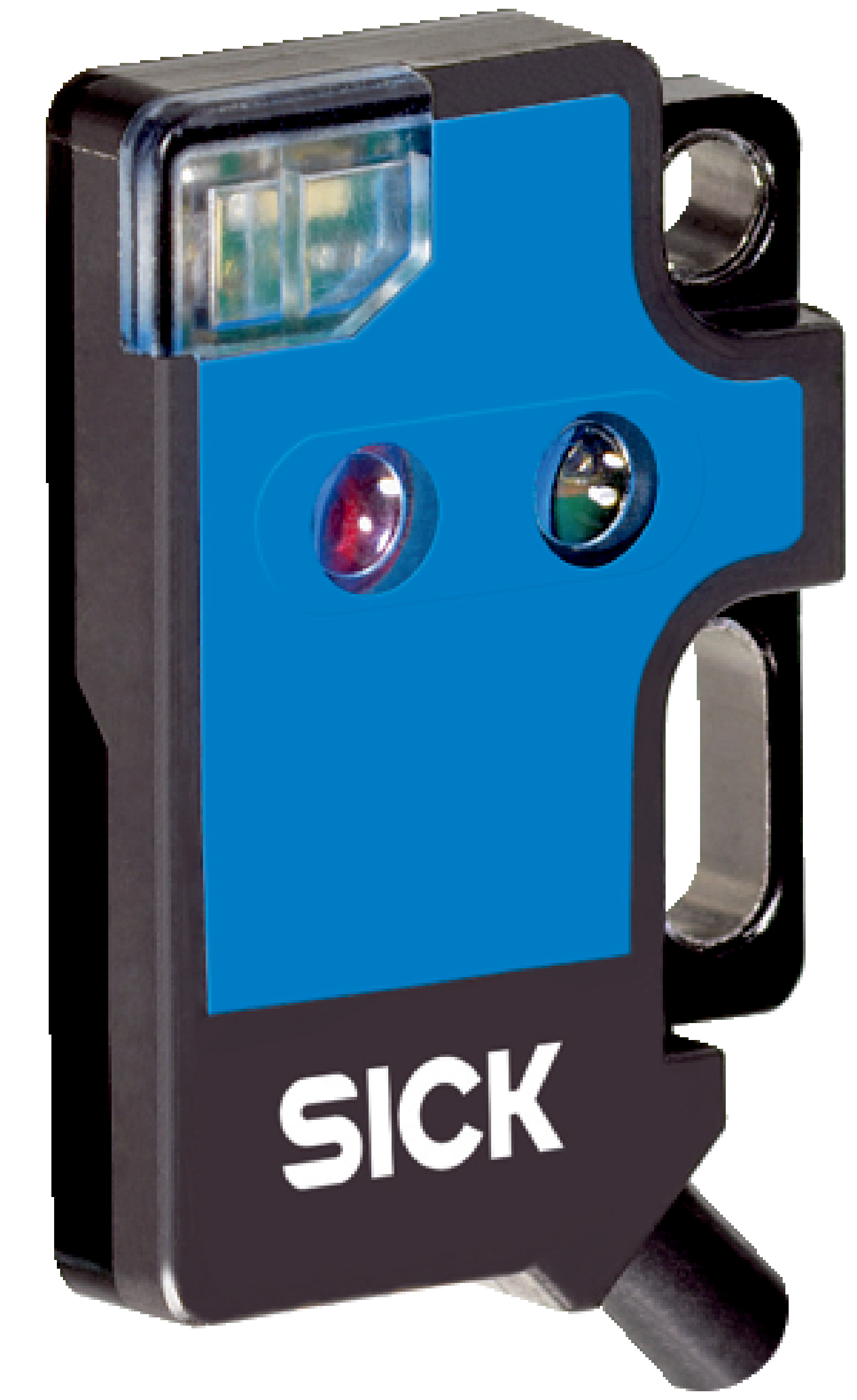

Photoelectric Proximity Sensor WT2F-P170 | PNP Output | IP67 Rated | Fast Response Time | by SICK
The WT2F-P170 Photoelectric Proximity Sensor is designed for industrial automation, featuring a PNP output and an impressive response time of ≤ 0.5 ms. With an IP67 rating for dust and water protection, this sensor is perfect for object detection and position sensing in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: PNP
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Cable diameter: Ø 2.4 mm
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic (PC)
- Optics material: Plastic (PC)
- Enclosure rating: IP67
- Ambient operating temperature: –20 °C to +55 °C
- Ambient storage temperature: –40 °C to +75 °C
- MTTFD: 1,526 years
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Sensing range from 1 mm to 9 mm
- LED light source with 660 nm wavelength
- PNP switching output with light switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Cable connection, 3-wire, 2 m length with PVC material
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection included
- Wide ambient operating temperature range from –20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in assembly lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental damage and extends product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WT2F-P170 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
