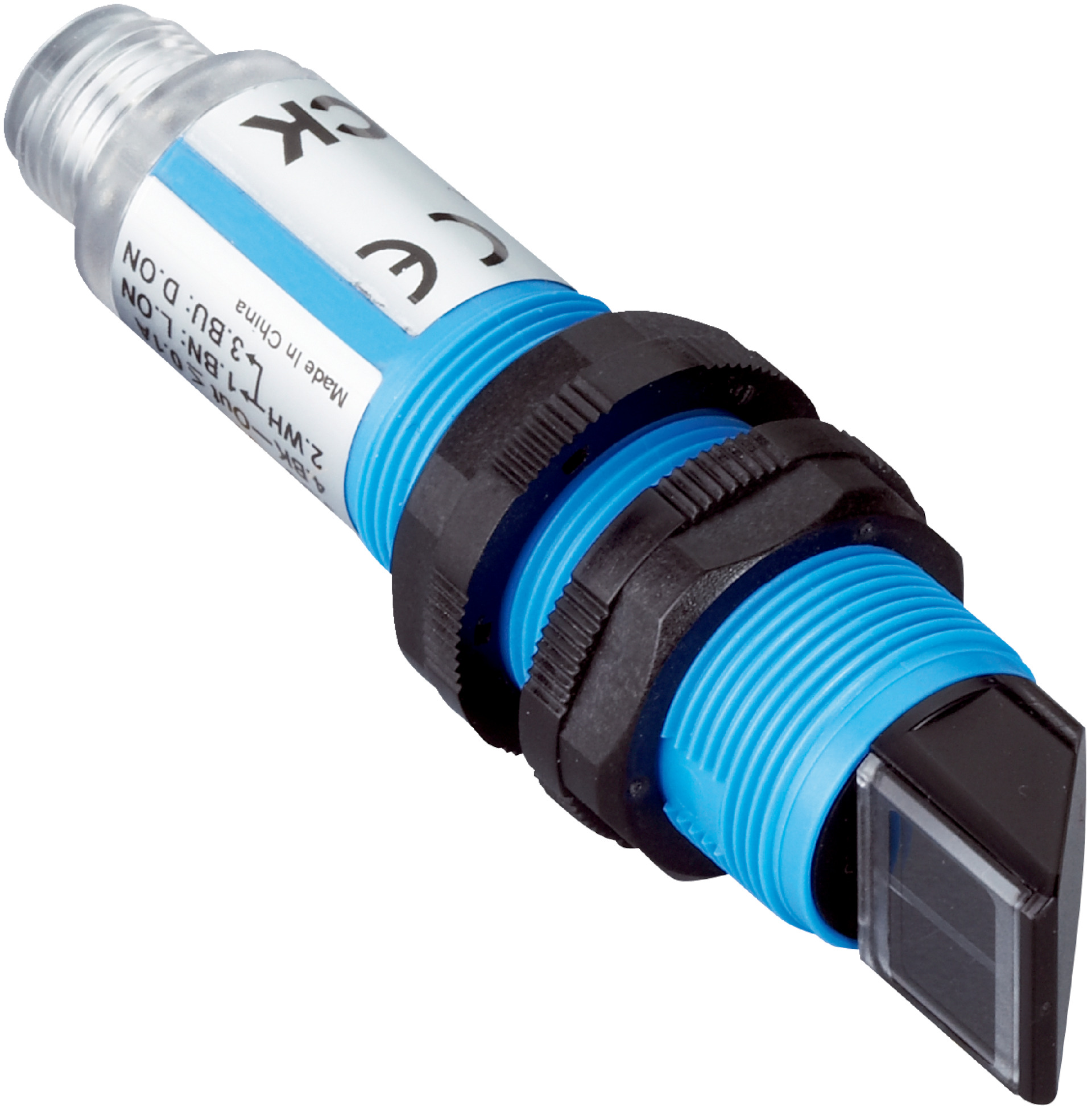

Photoelectric Proximity Sensor | Red Light LED | IP67 Rated | 1,000 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a visible red light LED with a sensing range of 1 mm to 900 mm. With a high switching frequency of 1,000 Hz and a rapid response time of ≤ 0.5 ms, it's perfect for object detection in manufacturing and safety monitoring applications. Built to last with an IP67 rating, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Maximum output current: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Connector M12, 3-pin
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1,982 years
- DCavg: 0%
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm up to 900 mm
- Radial optical axis with approx. 1.2° focus and angle of dispersion
- Potentiometer adjustment with 270° range for sensing distance
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- Connector M12, 3-pin connection type
- Protection class III and enclosure rating IP67 for robust use
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2F32489 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
