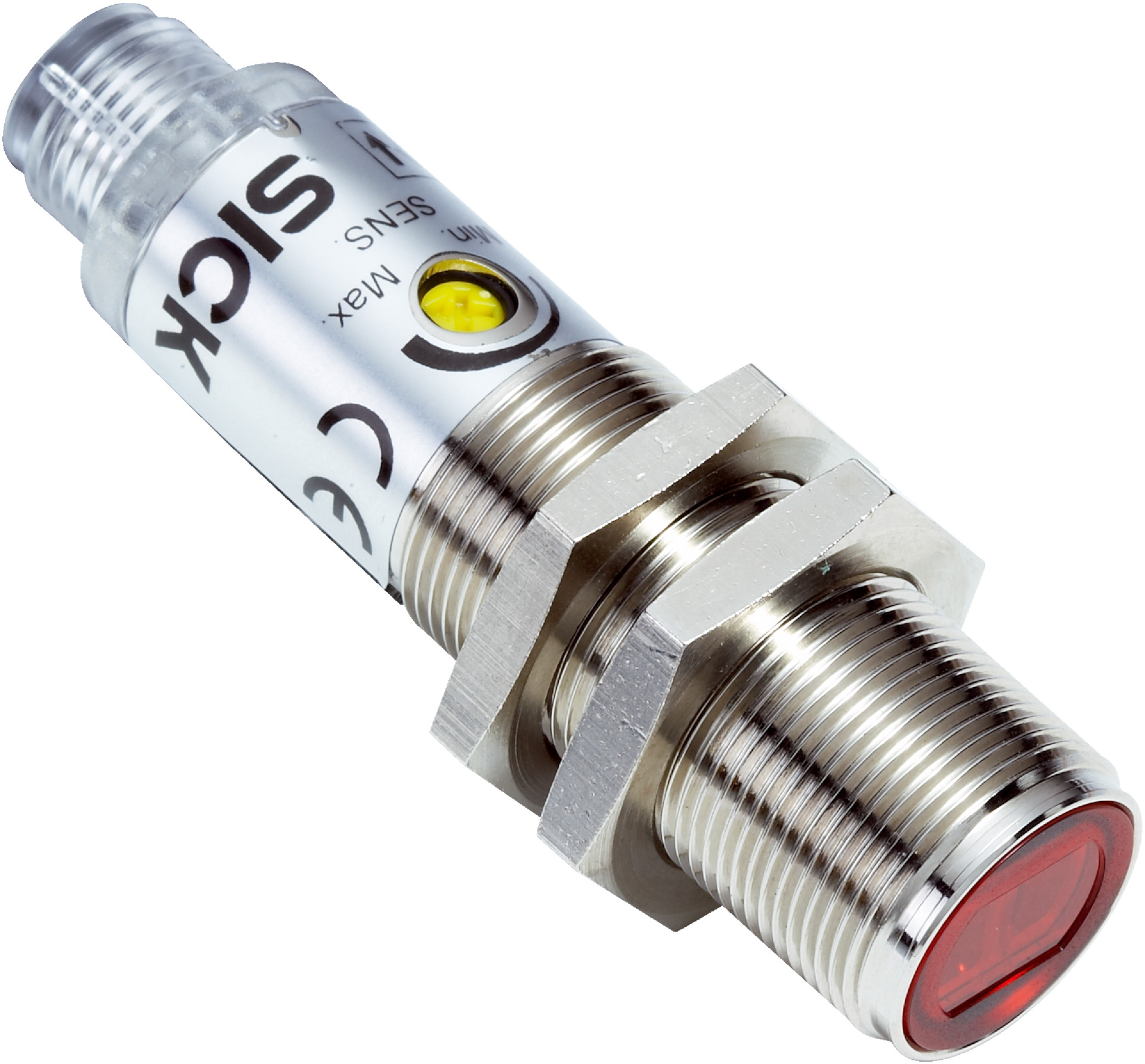

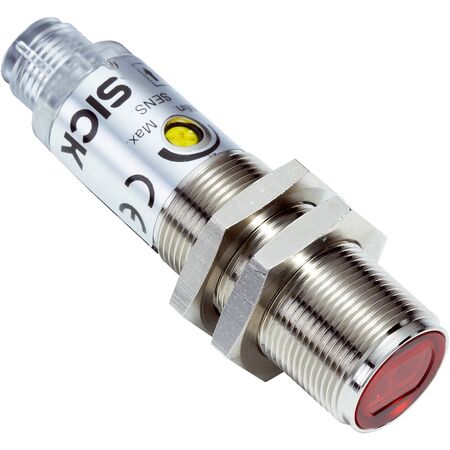

Photoelectric Proximity Sensor | Red Light LED | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor VTE180-2F32342 features a visible red light LED source and an impressive sensing range of 1 mm to 350 mm, making it ideal for industrial automation and safety applications. With a robust metal housing and IP67 rating, it ensures reliable performance in challenging environments. Designed for precise object detection and position sensing, this sensor is perfect for manufacturing processes and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Housing design: Cylindrical with M18 x 1 thread diameter
- Optical axis: Axial
- Focus angle: Approx. 1.5°
- Light spot size at 400 mm: Ø 20 mm
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Connector M12, 3-pin
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +55 °C
- Ambient storage temperature: –40 °C to +70 °C
- MTTFD: 1,883 years
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED source with 645 nm wavelength
- Sensing range from 1 mm to 350 mm (max 500 mm)
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust metal housing with nickel-plated brass and PC optics
- IP67 rated enclosure for dust and water protection
- Connector M12, 3-pin for easy installation
- Potentiometer adjustment with 270° range for sensing distance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTE180-2F32342 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
