Photoelectric Proximity Sensor | Red Light LED | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a visible red light LED source and a sensing range of up to 450 mm. With a high switching frequency of 1,000 Hz and a fast response time of ≤ 0.5 ms, it ensures reliable performance in manufacturing process control and safety monitoring applications. Its durable IP67 rated enclosure provides excellent protection against dust and water, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Weight: 18 g
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED source with 645 nm wavelength
- Sensing range from 1 mm to 400 mm (max 450 mm)
- Radial optical axis with approx. 1.5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Compact cylindrical plastic housing (PBT/PC) with plastic optics (PMMA)
- Male M12 4-pin connector for easy installation
- Circuit protection and protection class III
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

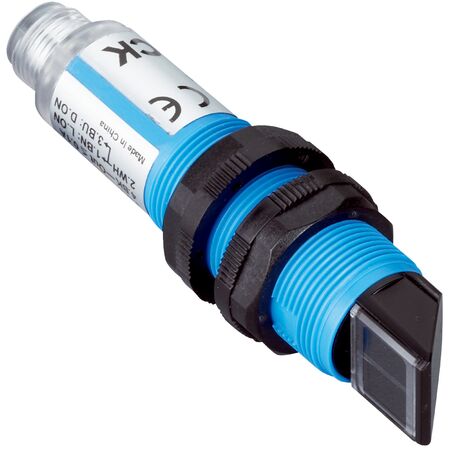

The SICK VTE180-2P42449 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
