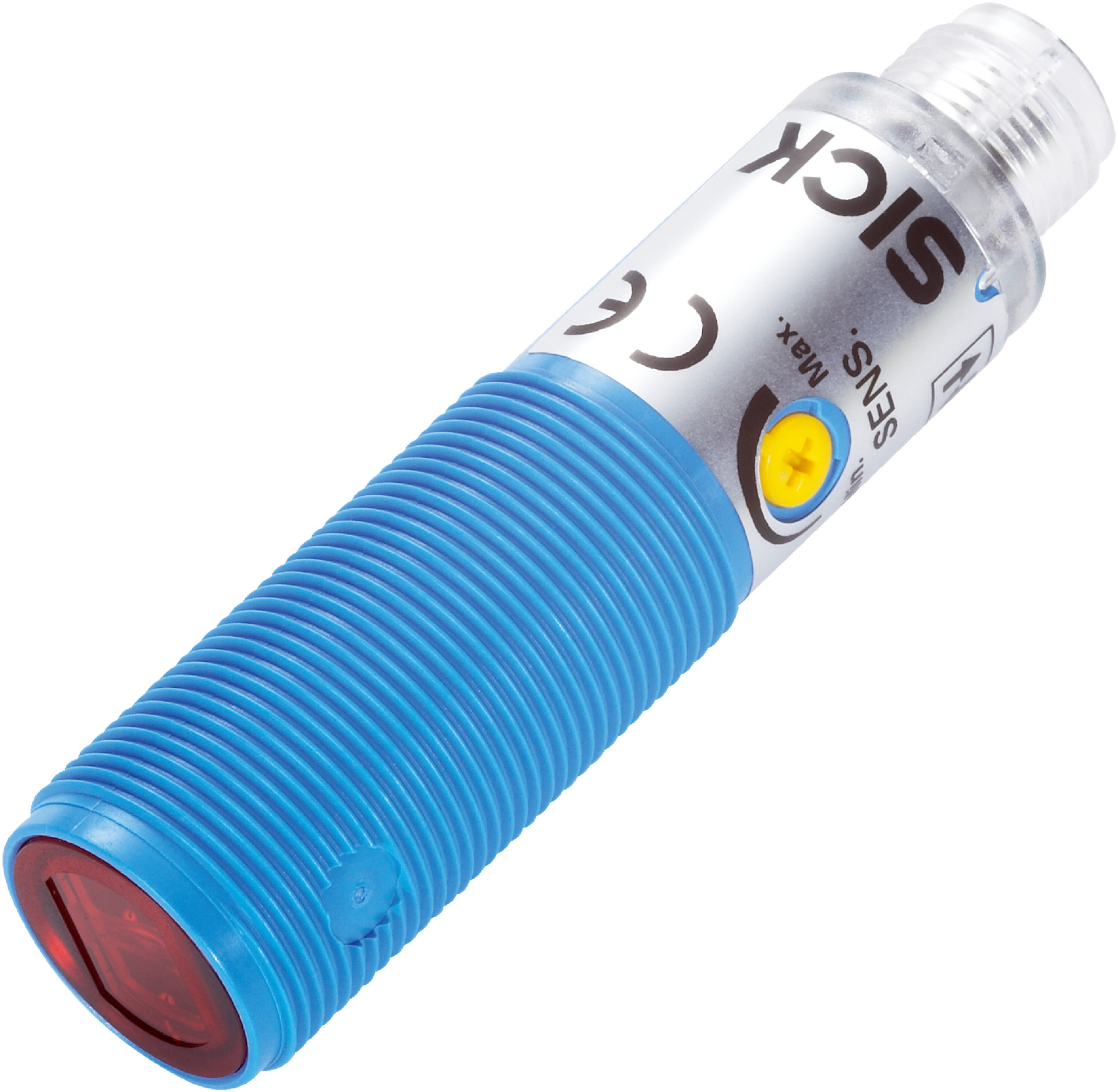

Photoelectric Proximity Sensor | Red Light LED | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor VTE180-2F32487 features a visible red light LED with a wavelength of 645 nm, making it ideal for industrial automation and object detection. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments. Perfect for positioning and presence detection in manufacturing and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Connection type: Connector M12, 3-pin
- Light spot size at 800 mm: Ø 30 mm
- Focus angle: Approx. 1.2°
- Wave length: 645 nm
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 1100 mm
- Potentiometer adjustment with 270° sensing range
- High switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Compact cylindrical housing with M18 x 1 thread diameter
- Fast response time of ≤ 0.5 ms
- Connector M12, 3-pin connection type
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Positioning and presence detection in manufacturing
- Safety and monitoring in conveyor systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTE180-2F32487 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
