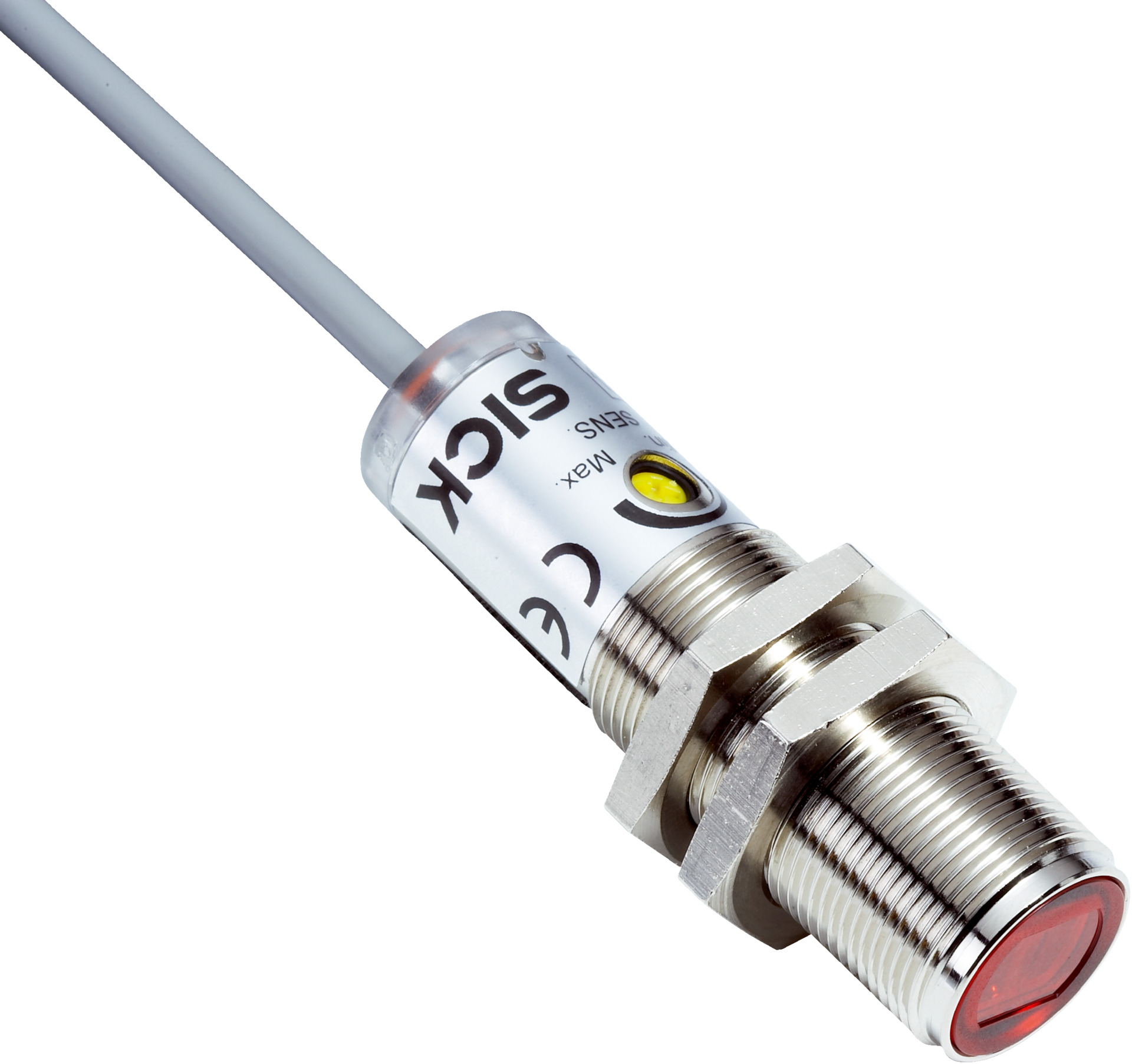

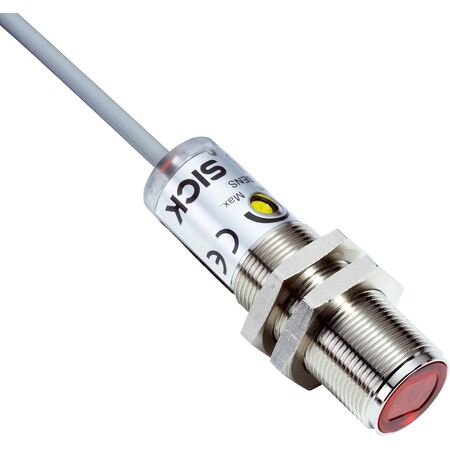

Photoelectric Proximity Sensor | Red Light LED | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor VTE180-2N41242 features a visible red light LED with a wavelength of 645 nm and a sensing range of 1 mm to 350 mm, making it ideal for industrial automation and manufacturing process control. With an IP67 rated enclosure for dust and water protection, this sensor ensures reliable performance in challenging environments, while its fast response time of ≤ 0.5 ms and NPN switching output enhance operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 1 mm to 350 mm (max 500 mm)
- Light source: Visible red LED, 645 nm wavelength
- Focus angle: Approx. 1.5°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control cable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 5 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Housing material: Nickel-plated brass and polycarbonate
- Optics material: PMMA plastic
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 350 mm (max 500 mm)
- Cylindrical metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Adjustable sensing range via 270° potentiometer
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- NPN switching output with selectable light/dark switching mode
- Supplied with fastening nuts for easy installation
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTE180-2N41242 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
