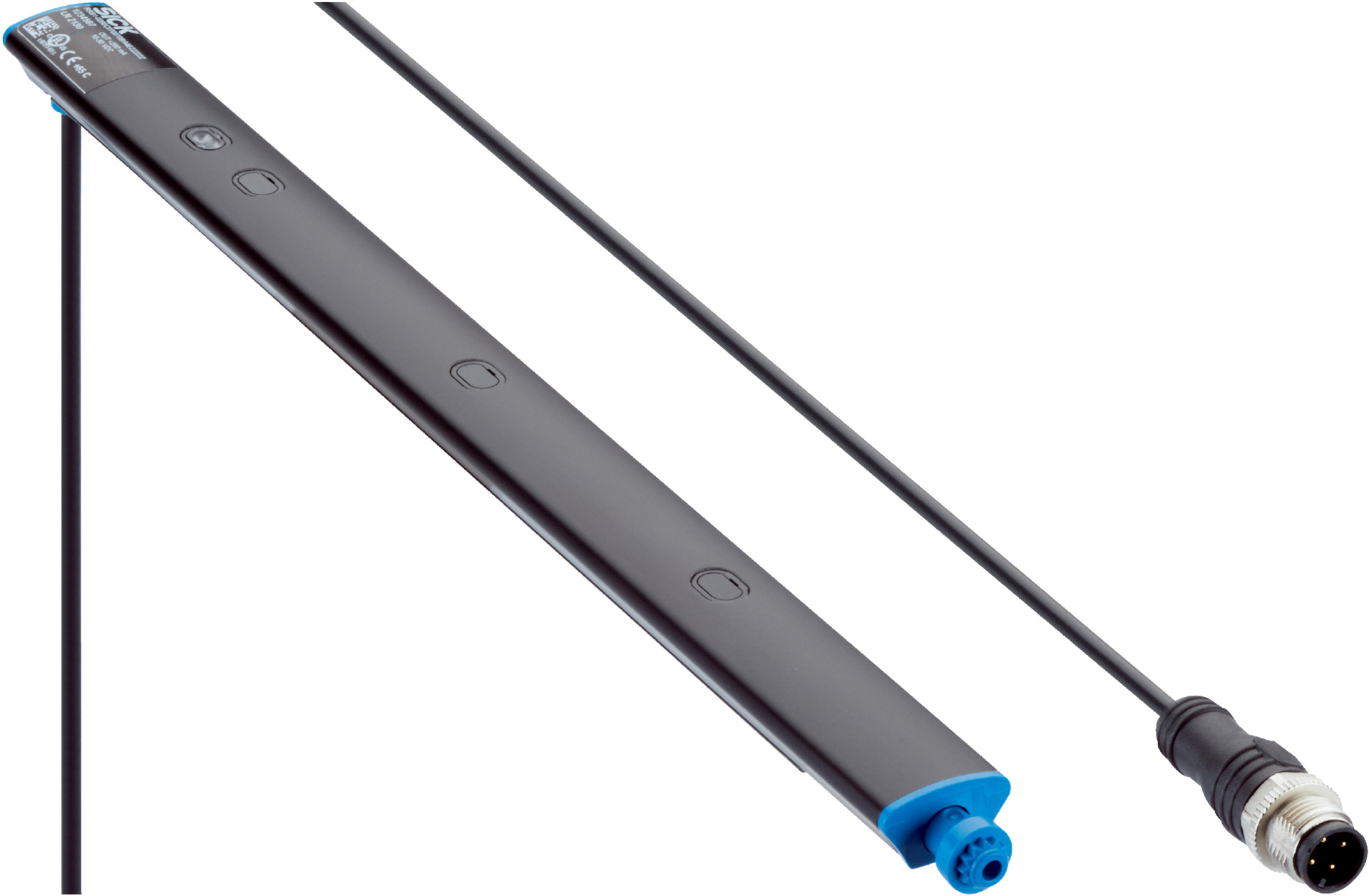

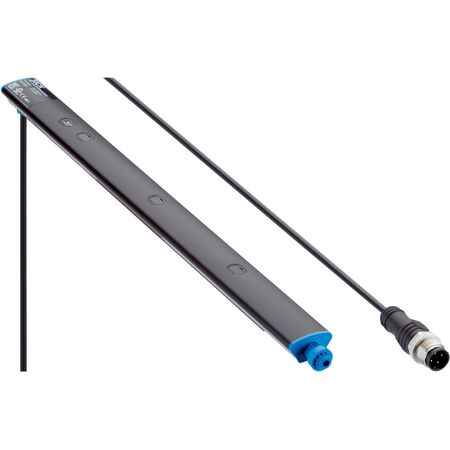

Photoelectric Proximity Sensor RSB1-0409B137137PZ4DS04ZZZ | IP67 Rated | 500 Hz Switching Frequency | Robust Aluminum Housing | by SICK
The Photoelectric Proximity Sensor RSB1-0409B137137PZ4DS04ZZZ is designed for precise object detection in industrial automation. With a sensing range of 2 mm to 300 mm and a high switching frequency of 500 Hz, it ensures rapid response times of ≤ 1 ms. Built for durability, this sensor features an IP67 rating and operates effectively in temperatures from -40 °C to +60 °C, making it ideal for various applications including detecting flat and shiny objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 8 mA without load at 24 V
- Digital output: 1 PNP light switching output, max 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable with M12 4-pin connector, 500 mm length
- Housing material: Anodised aluminum
- Front screen: Plastic PMMA
- Dimensions (H x L x W): 17mm x 409mm x 20mm
- Weight: 0.149 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, recommended 2 mm to 45 mm for best performance
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Two beams with 137 mm beam separation
- LED indicators for power and object presence
- Sensing range preset to 100 mm on white
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust metal aluminum anodised housing with IP67 rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RSB1-0409B137137PZ4DS04ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
