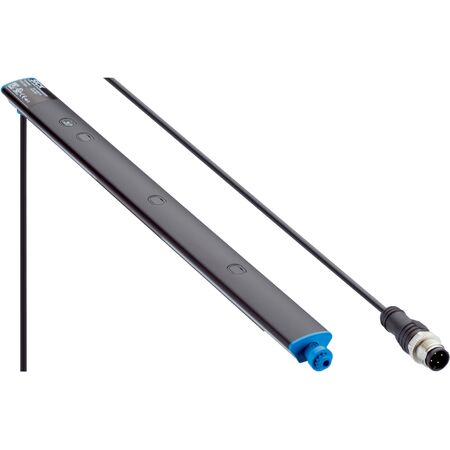

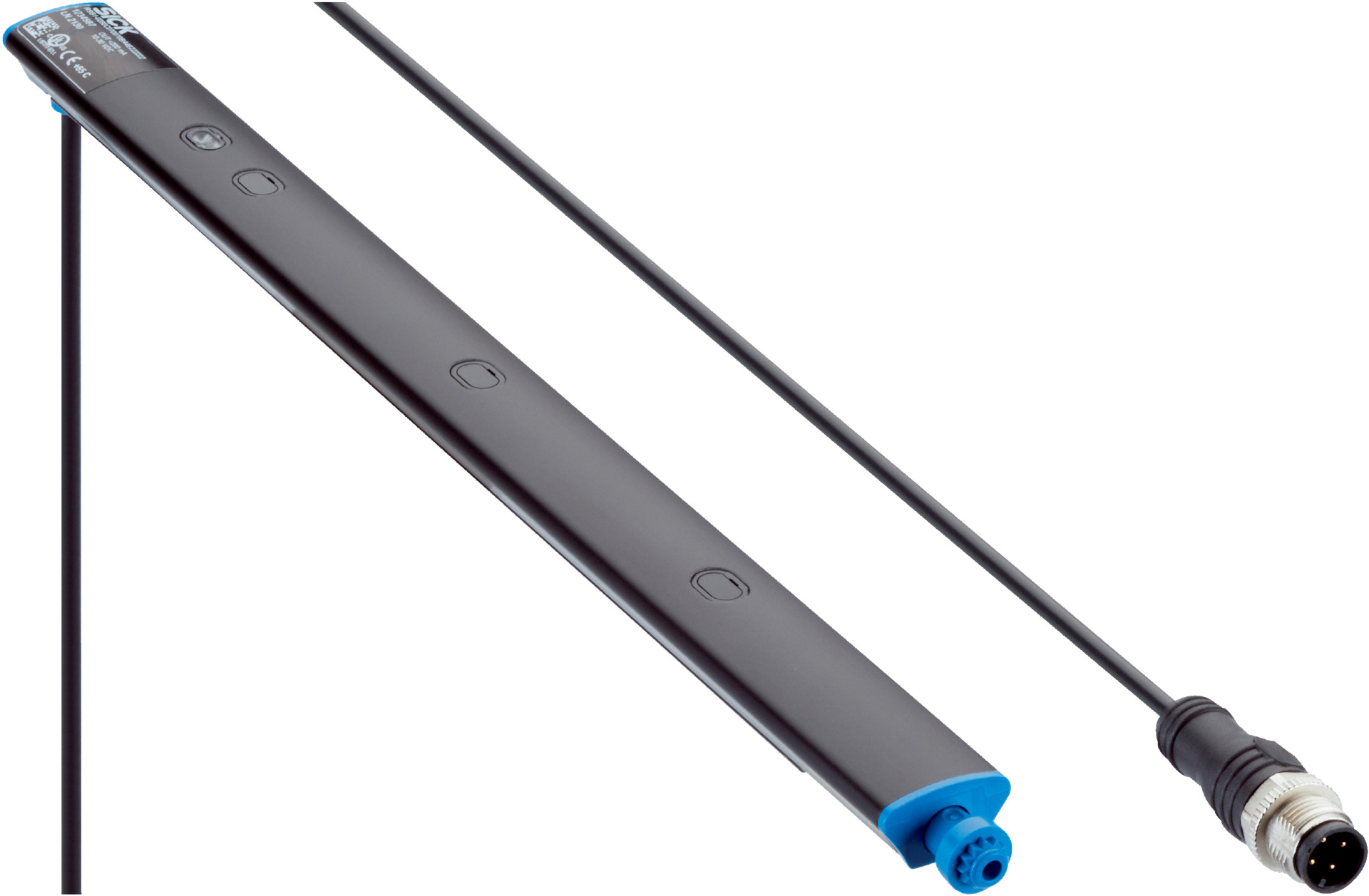

Photoelectric Proximity Sensor RSB1-0570D070180BA4FZZZZZZ | IP67 Rated | Infrared LED | 2 mm to 300 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor RSB1-0570D070180BA4FZZZZZZ is designed for precise object detection, featuring a sensing range of 2 mm to 300 mm and an infrared LED light source. With a robust IP67-rated aluminum housing, it operates effectively in harsh environments, making it ideal for industrial automation and applications requiring reliable detection of flat or shiny objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 17 mA without load at 24 V
- Protection class: III
- Digital outputs: 2 complementary push-pull PNP/NPN
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- LED risk group: Free group
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Enclosure rating: IP67
- Housing material: Anodised aluminum
- Front screen material: PMMA plastic
- Cable: PVC, 1.5 m length with M12 4-pin connector
- Dimensions (H x L x W): 17mm x 570mm x 20mm
- Weight: 0.207 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Four beams with 70 mm separation
- LED indicators for power and object presence
- Response time ≤ 1 ms and switching frequency up to 500 Hz
- Push-pull PNP/NPN complementary digital outputs with light/dark switching
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Robust metal aluminum anodised housing with IP67 rating
- Operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper wiring and compliance with safety standards.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RSB1-0570D070180BA4FZZZZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
