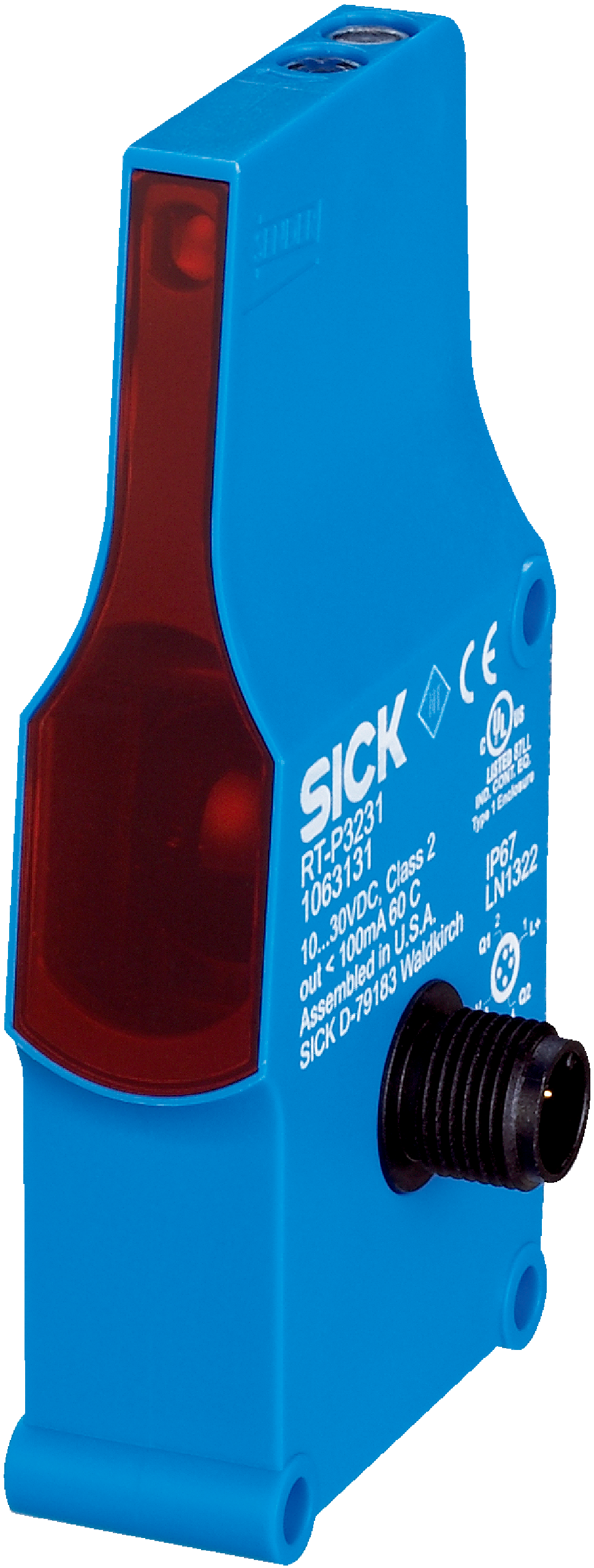

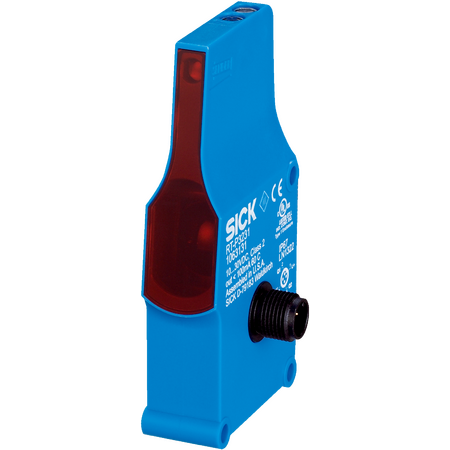

Photoelectric Proximity Sensor RT-P3221 | 60mm to 900mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor RT-P3221 is designed for industrial automation, featuring a sensing range from 60 mm to 900 mm and an infrared LED light source with a 7° angle of dispersion. With a fast response time of 2 ms and PNP switching output, it's perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Infrared proximity switch, PNP photo sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 60 mm to 900 mm
- Light source: Infrared LED
- Light spot size: Ø 20 mm at 500 mm distance
- Angle of dispersion: 7°
- Adjustment: Potentiometer, 9 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, C, D
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Shock and vibration resistance: According to IEC 68
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- UL File No.: NRKH.E189383 & NRKH7.E189383
- Dimensions (H x L x W): 99mm x 49mm x 21mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 60 mm to 900 mm
- Infrared LED light source with 7° angle of dispersion
- Potentiometer adjustment with 9 turns for sensitivity tuning
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant according to IEC 68
- Operating temperature range from -40 °C to +60 °C
- PNP switching output with light/dark switching mode
- Fast response time of 2 ms and switching frequency of 250 Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- ZoneControl applications requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable ABS plastic housing reduces material waste
- Long service life with MTTFD of 1,525 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RT-P3221 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
