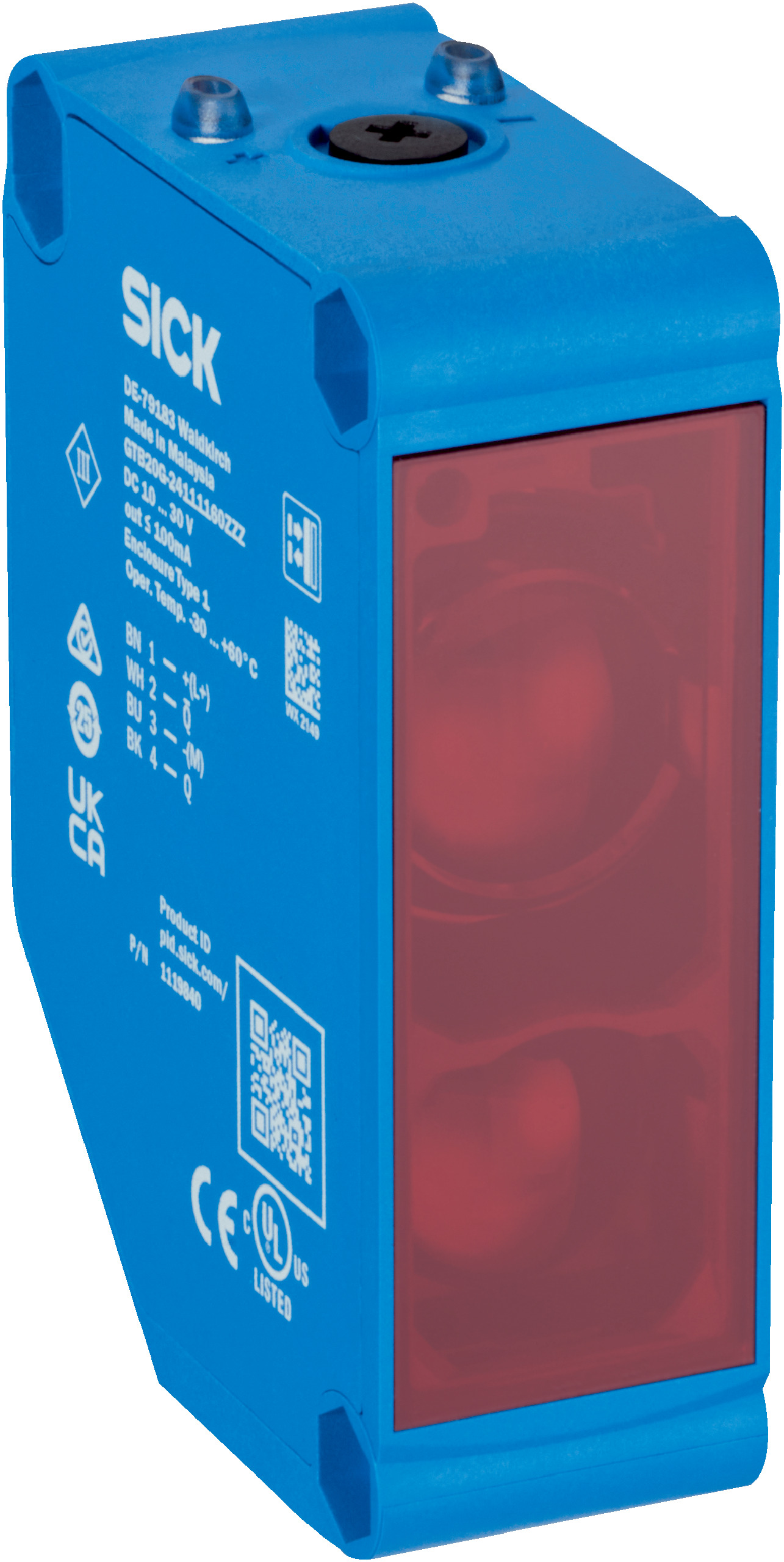

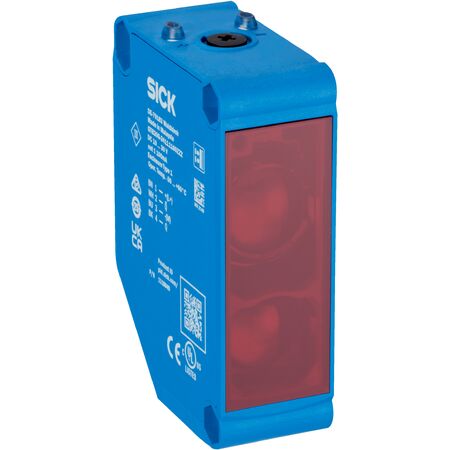

Photoelectric Proximity Sensor SICK GTE20M | 0.005m to 3.5m Range | IP67 Rated | by SICK
The SICK GTE20M-24111170ZZZ Photoelectric Proximity Sensor offers a versatile sensing range from 0.005 m to 3.5 m, making it ideal for industrial automation and safety applications. With an infrared LED light source and a robust IP67-rated housing, this sensor ensures reliable performance in harsh environments, providing fast response times and high switching frequencies for efficient monitoring and detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 0.005 m to 3.5 m with 90% remission reference object
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Maximum beam dispersion: < +/- 1.5° at 23 °C
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output: 2 complementary push-pull outputs (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic ABS, front screen PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.005 m to 3.5 m for versatile detection
- Infrared LED light source with rectangular light spot
- LED indicators for power and object presence status
- Potentiometer for 270° sensitivity adjustment
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 rating for harsh environments
- Male connector M12, 4-pin for easy connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE20M-24111170ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
