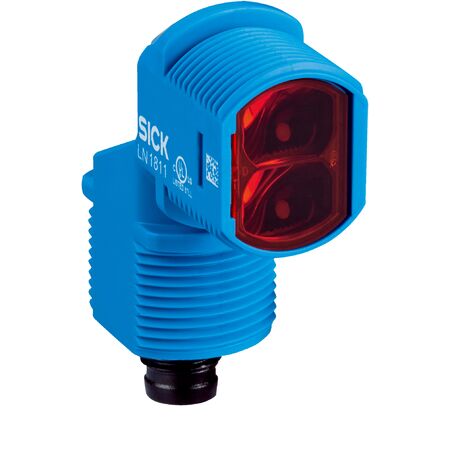

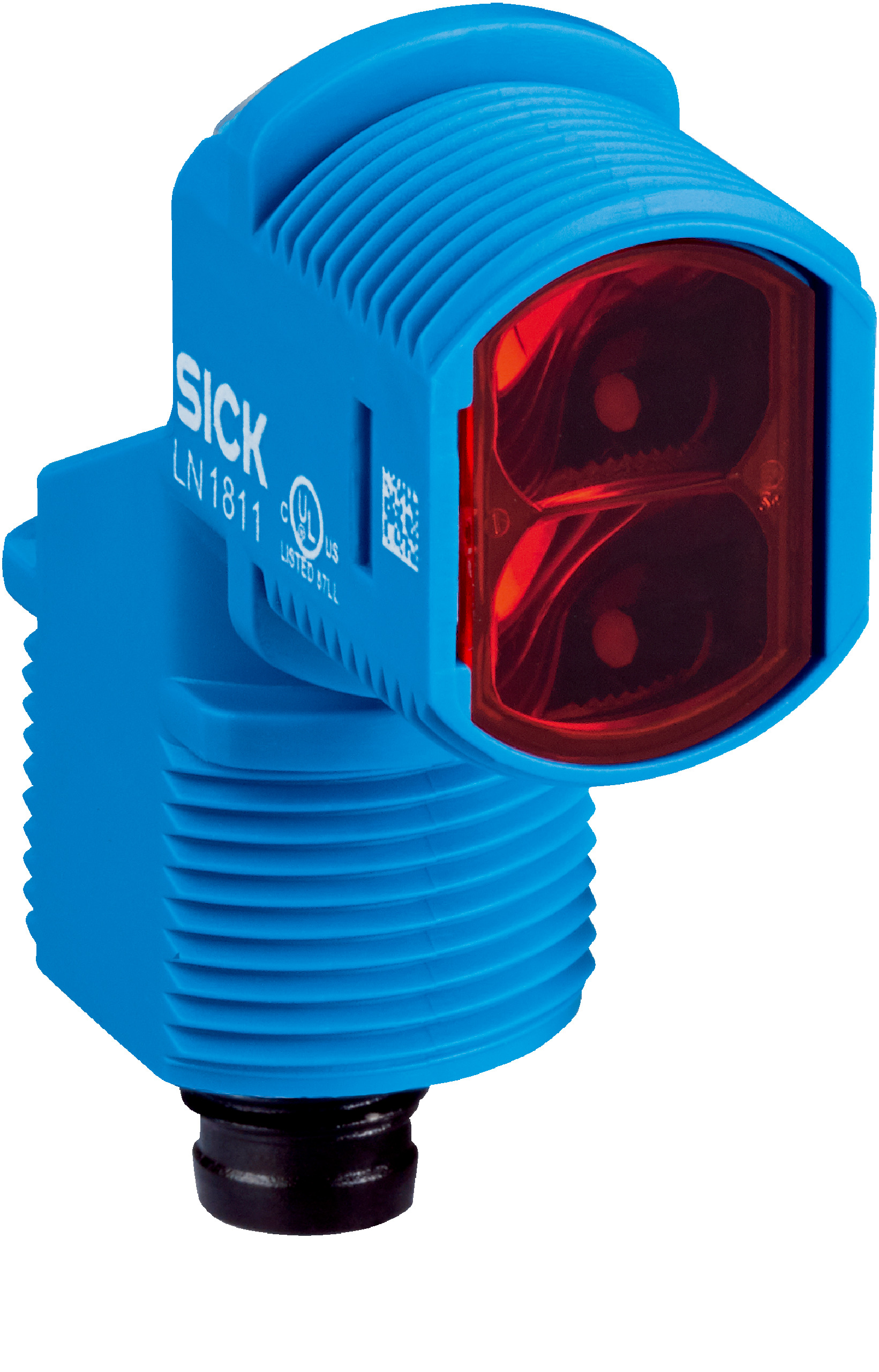

Photoelectric Proximity Sensor SICK ZTE18-4AB3A2 | IP67 Rated | 500 kHz Switching Frequency | Red Light | by SICK
The SICK ZTE18-4AB3A2 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of up to 700 mm and a high switching frequency of 500 kHz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Light wavelength: 625 nm
- Light spot size at 1000 mm: Ø 25 mm
- Dimensions (H x L x W): 40.8mm x 33.3mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range up to 700 mm
- Hybrid housing design with M18 thread diameter
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable ABS and PMMA plastic housing reduces material waste
- Long operational life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTE18-4AB3A2 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
