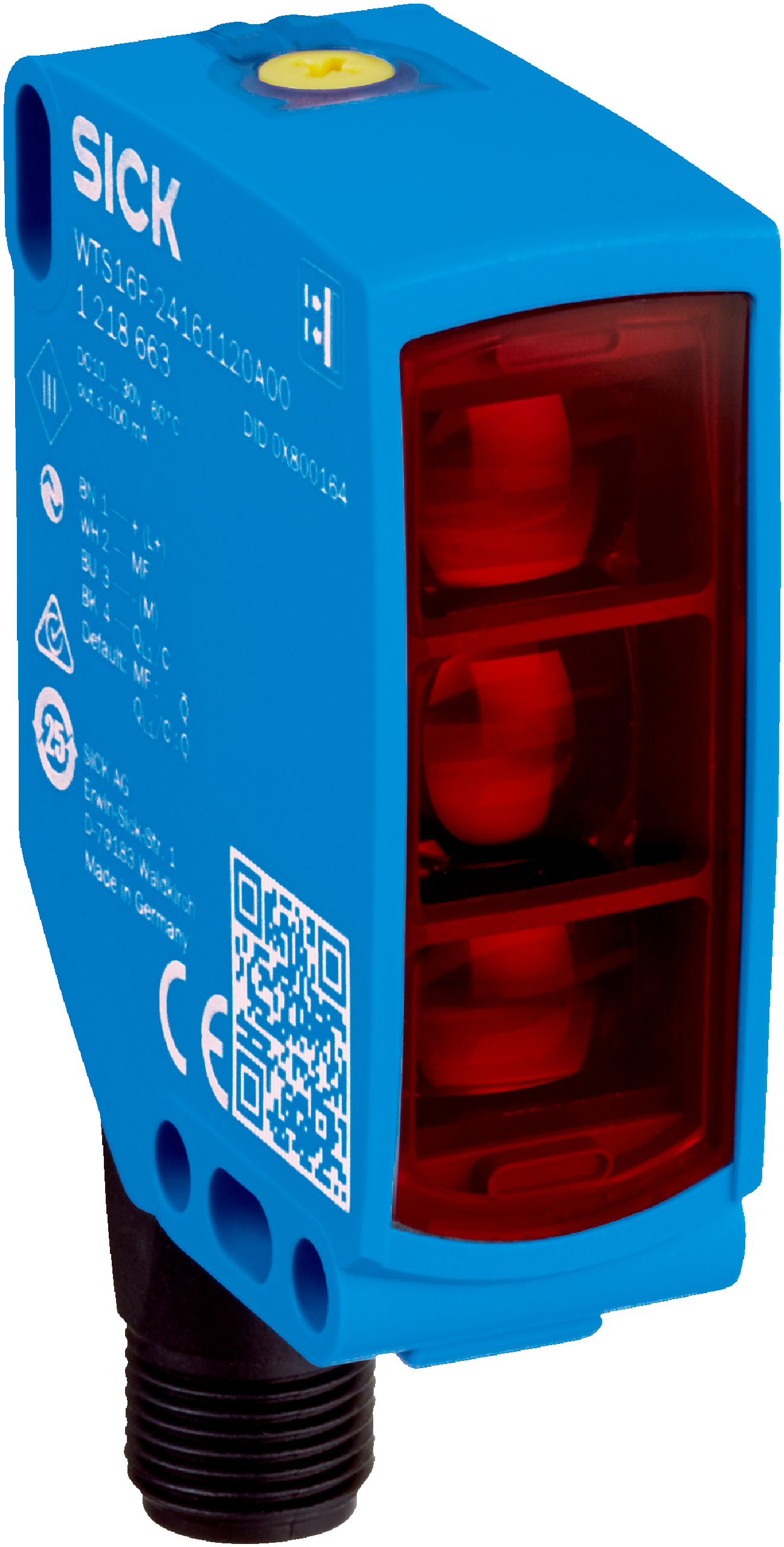

Photoelectric Proximity Sensor | TwinEye Technology | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The photoelectric proximity sensor with TwinEye technology offers an adjustable sensing range from 10 mm to 400 mm, making it ideal for industrial automation and object detection. With a robust IP66/IP67/IP69 rating, it excels in harsh environments, ensuring reliable performance even under challenging conditions. Its visible red LED light source and dual complementary push-pull outputs enhance versatility and ease of integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, TwinEye sensor, IO-Link proximity sensor, Industrial object detection sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 400 mm, adjustable switching threshold 100 mm to 400 mm
- Light source: Visible red LED, wavelength 625 nm
- Light spot size: 13 mm x 13 mm at 300 mm distance
- Response time: ≤ 3.3 ms
- Switching frequency: 150 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL® with PMMA front screen
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using TwinEye technology
- Adjustable sensing range from 10 mm to 400 mm with recommended range 150 mm to 300 mm
- Visible red LED light source with rectangular light spot of 13 mm x 13 mm at 300 mm
- BluePilot Teach-Turn adjustment for easy sensing range setting
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Dual complementary push-pull digital outputs (PNP/NPN) with light/dark switching
- High protection class with IP66, IP67, and IP69 ratings
- Robust plastic VISTAL® housing with PMMA front screen
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
- Long LED service life of 100,000 hours at 25 °C
- Comprehensive diagnostic features including device status and quality of teach
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and secure mounting, especially for IO-Link integration and electrical connections.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny objects
- Detection of objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability and resistance to harsh conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTS16G-24161920A00Z2ZZZZZZZZZ1 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
