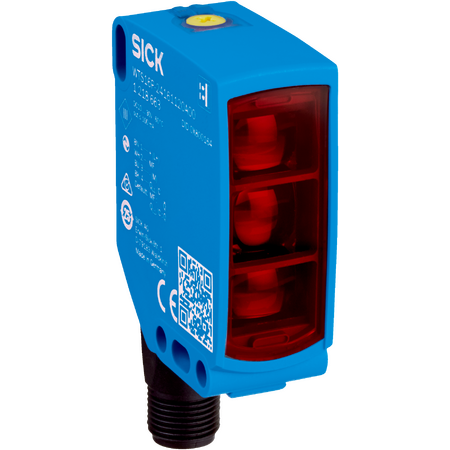

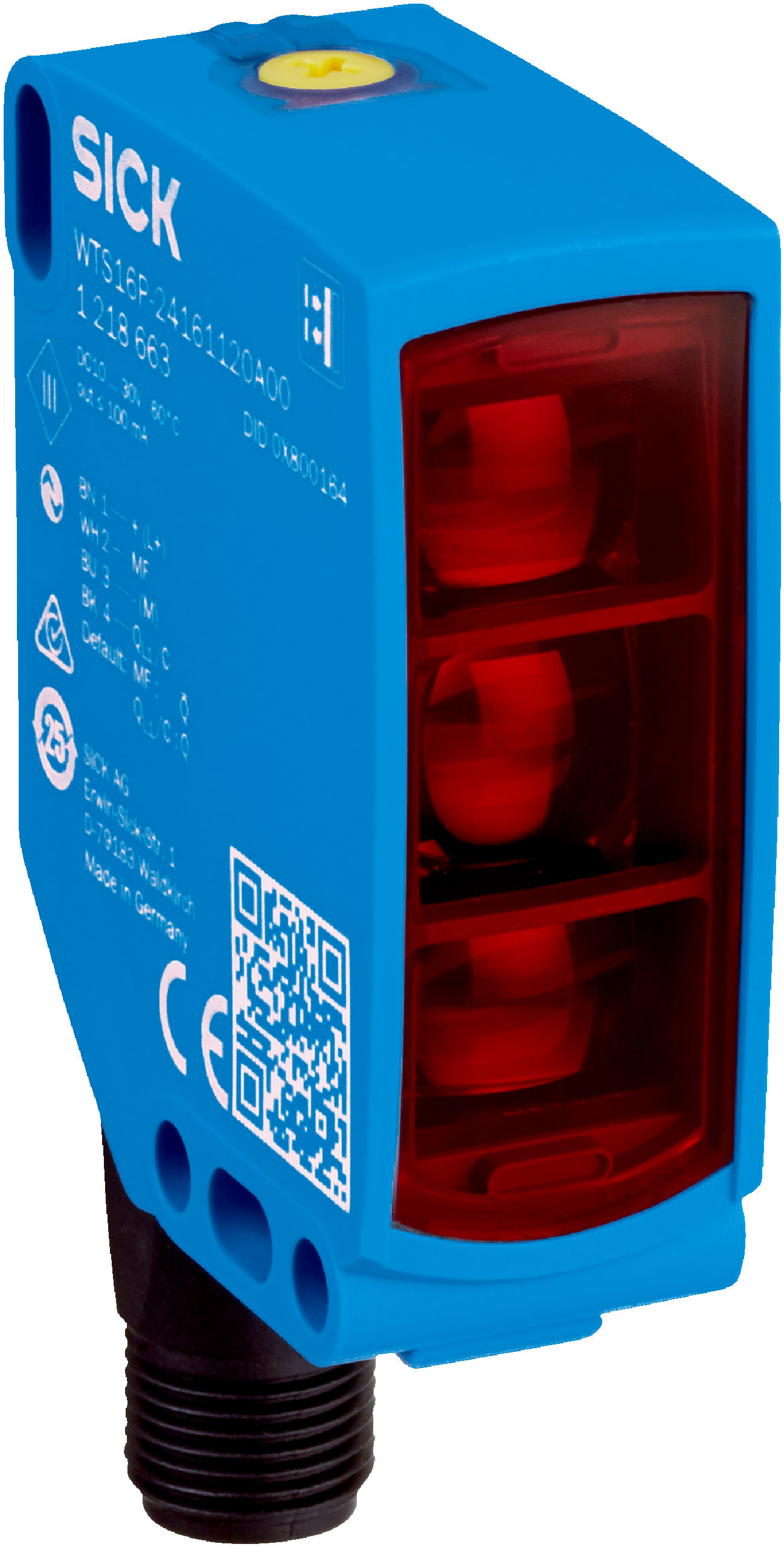

Photoelectric Proximity Sensor | TwinEye Technology | Adjustable Sensing Range | IP66/IP67/IP69 Rated | by SICK
The photoelectric proximity sensor with TwinEye technology offers an adjustable sensing range from 10 mm to 750 mm, making it ideal for industrial automation and object detection. With a robust IP66/IP67/IP69 rated enclosure, it ensures reliable performance in harsh environments, while the PinPoint LED provides precise detection with a long service life of 100,000 hours.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, TwinEye sensor, IO-Link proximity sensor, Industrial object detection sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 750 mm adjustable; recommended 100 mm to 300 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: Ø 8 mm at 300 mm distance
- Response time: ≤ 1.4 ms
- Switching frequency: 350 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz, amplitude 0.5 mm / 10 g
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®; Front screen: Plastic PMMA
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using TwinEye technology
- Adjustable sensing range from 10 mm to 750 mm with recommended range 100 mm to 300 mm
- PinPoint LED visible red light with 635 nm wavelength and point-shaped light spot
- BluePilot Teach-Turn adjustment for easy sensing range setting
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High shock and vibration resistance
- IP66, IP67, and IP69 rated enclosure for robust environmental protection
- Dual complementary push-pull digital outputs with light/dark switching
- Long LED service life of 100,000 hours at 25°C
- Multiple LED indicators for sensing range, operation, and object detection status
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and secure mounting, especially for IO-Link integration and electrical connections.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny objects
- Detection of objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTS16P-24161120A00Z2ZZZZZZZZZ1 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications requiring high precision and robust environmental protection.
