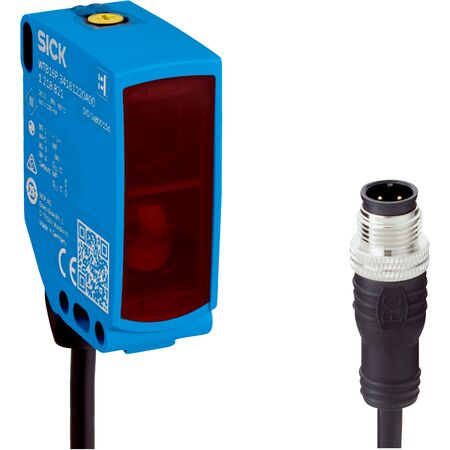

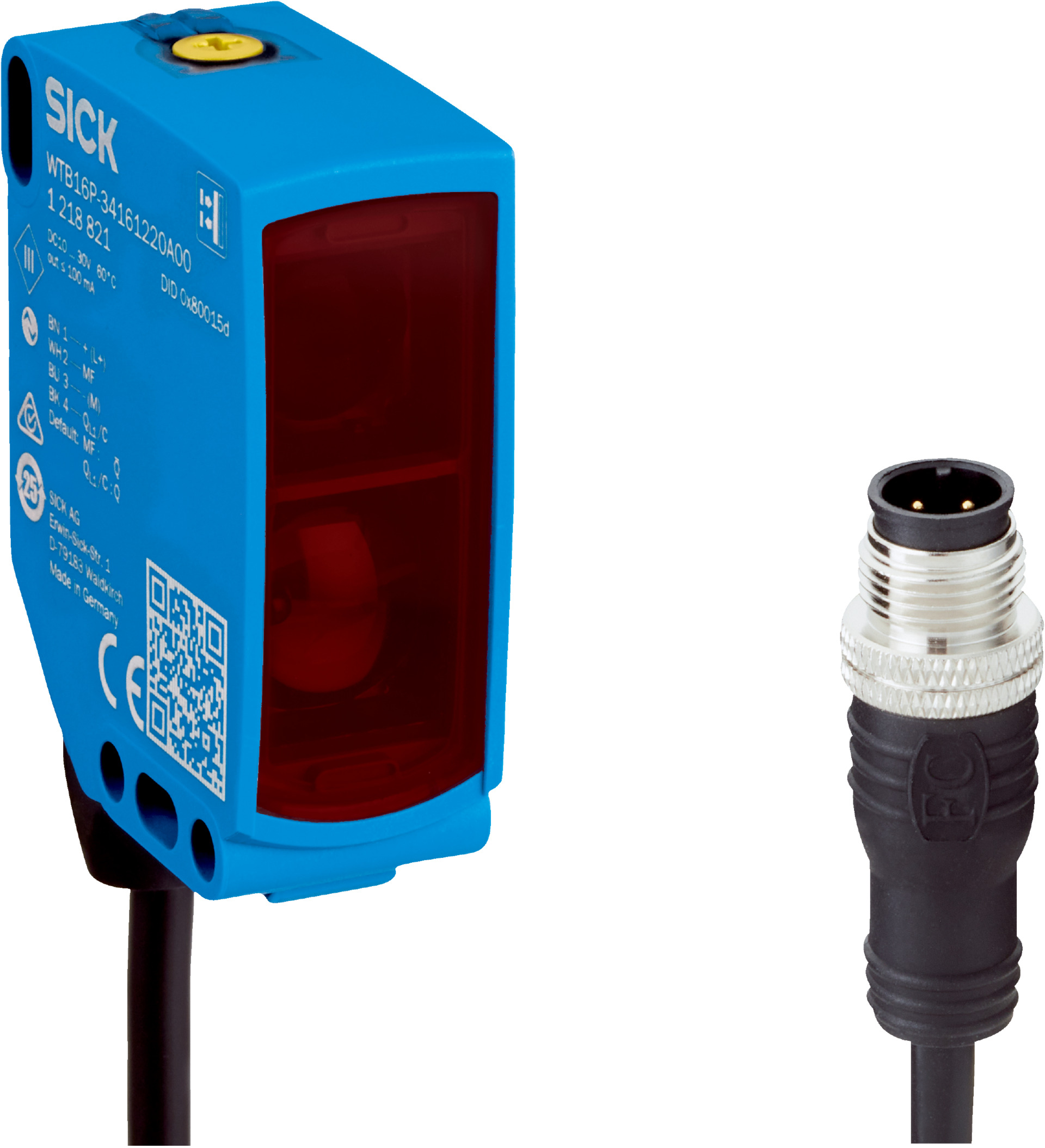

Photoelectric Proximity Sensor | TwinEye Technology | IP66/IP67/IP69 Rated | 10 mm to 750 mm Sensing Range | by SICK
The photoelectric proximity sensor with TwinEye technology offers a sensing range from 10 mm to 750 mm, making it ideal for industrial automation and precise object detection. With a robust IP66/IP67/IP69 rating and a long LED service life of 100,000 hours, this sensor is built for reliability in challenging environments, ensuring accurate detection of shiny or uneven objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 750 mm, adjustable switching threshold 100 mm to 750 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- LED service life: 100,000 hours at 25 °C
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 1.4 ms, switching frequency up to 350 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Cable with M12 male connector, 4-pin, 318 mm length
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using TwinEye technology
- Sensing range from 10 mm to 750 mm with adjustable switching threshold
- PinPoint LED light source with visible red light and point-shaped light spot
- BluePilot for easy sensing range setting and IO-Link for sensor configuration
- Dual complementary push-pull digital outputs with light/dark switching
- High protection class III with IP66, IP67, and IP69 ratings
- Robust plastic VISTAL® housing with PMMA front screen
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
- Long LED service life of 100,000 hours at 25 °C
- Multiple certifications including cULus, ECOLAB, and photobiological safety
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and secure mounting, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny objects
- Detection of objects wrapped in film
- Use in environments requiring precise background suppression sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact from damage and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTS16P-34161120A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
