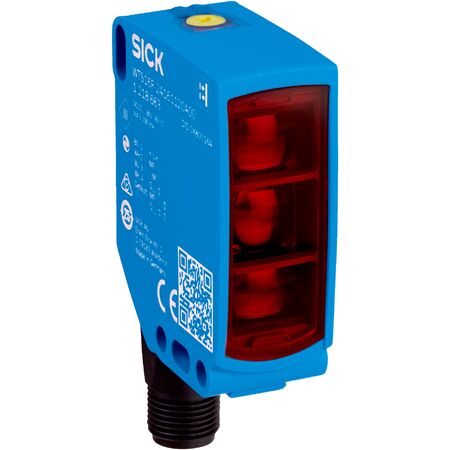

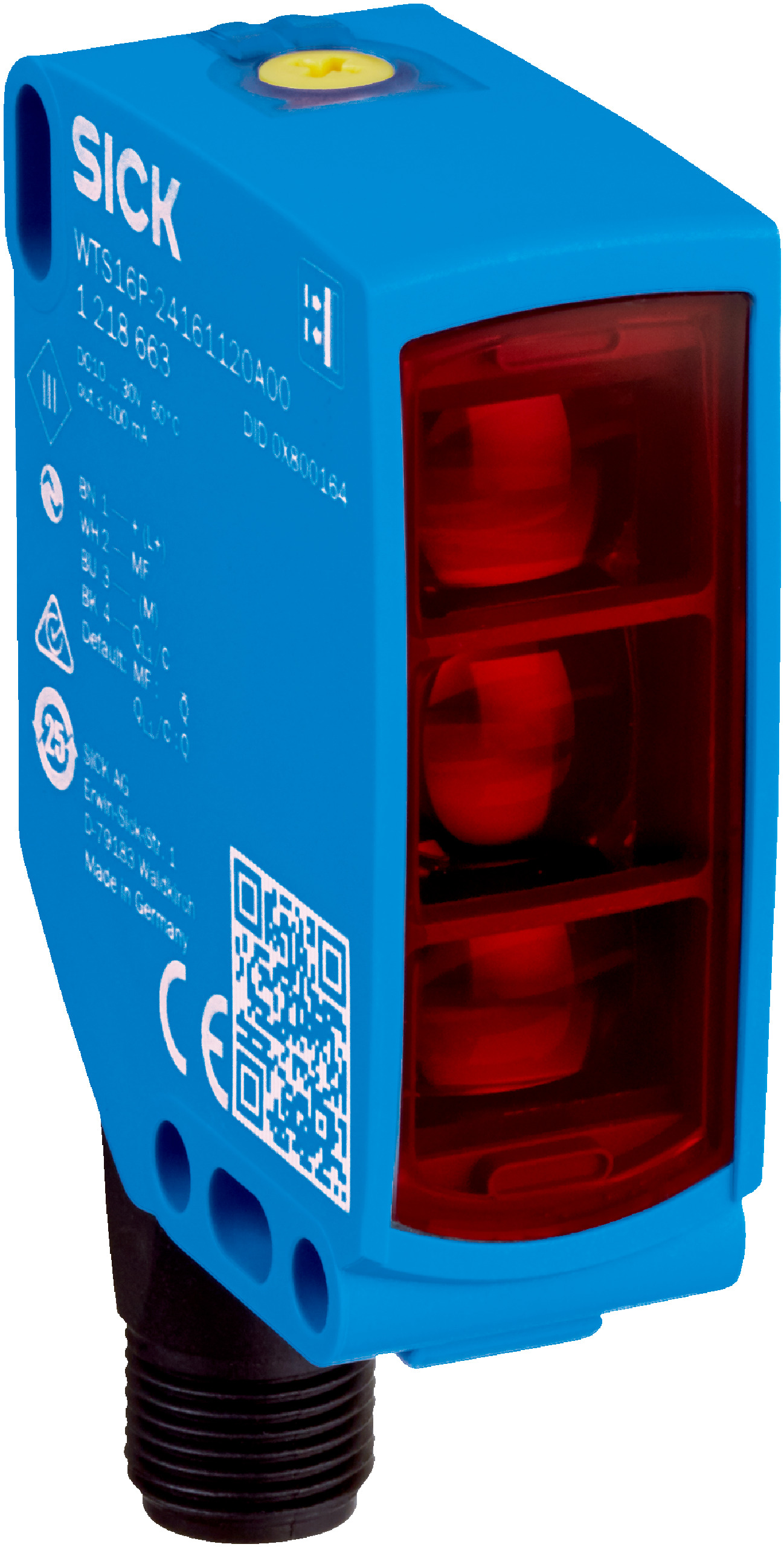

Photoelectric Proximity Sensor | TwinEye Technology | IP66/IP67/IP69 Rated | 10 mm to 750 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor with TwinEye technology offers an adjustable sensing range from 10 mm to 750 mm, making it ideal for industrial automation and object detection. With a robust IP66/IP67/IP69 rated enclosure, it excels in harsh environments, ensuring reliable performance. The long-lasting PinPoint LED light source provides visibility and efficiency, while dual complementary push-pull outputs enhance versatility in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 750 mm adjustable, recommended 100 mm to 300 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 1.4 ms
- Switching frequency: 350 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®, front screen PMMA
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using TwinEye technology
- Sensing range adjustable from 10 mm to 750 mm with recommended range 100 mm to 300 mm
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High shock and vibration resistance
- IP66, IP67, and IP69 rated enclosure for robust environmental protection
- Dual complementary push-pull digital outputs with light/dark switching
- Long LED service life of 100,000 hours at 25°C
- Multiple LED indicators for sensing range, operating status, and object detection
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper sensor configuration and secure mounting, especially for industrial applications.
Applications
- Industrial automation for object detection
- Detecting uneven, shiny objects
- Detecting objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact from sensor failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTS16P-24161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
