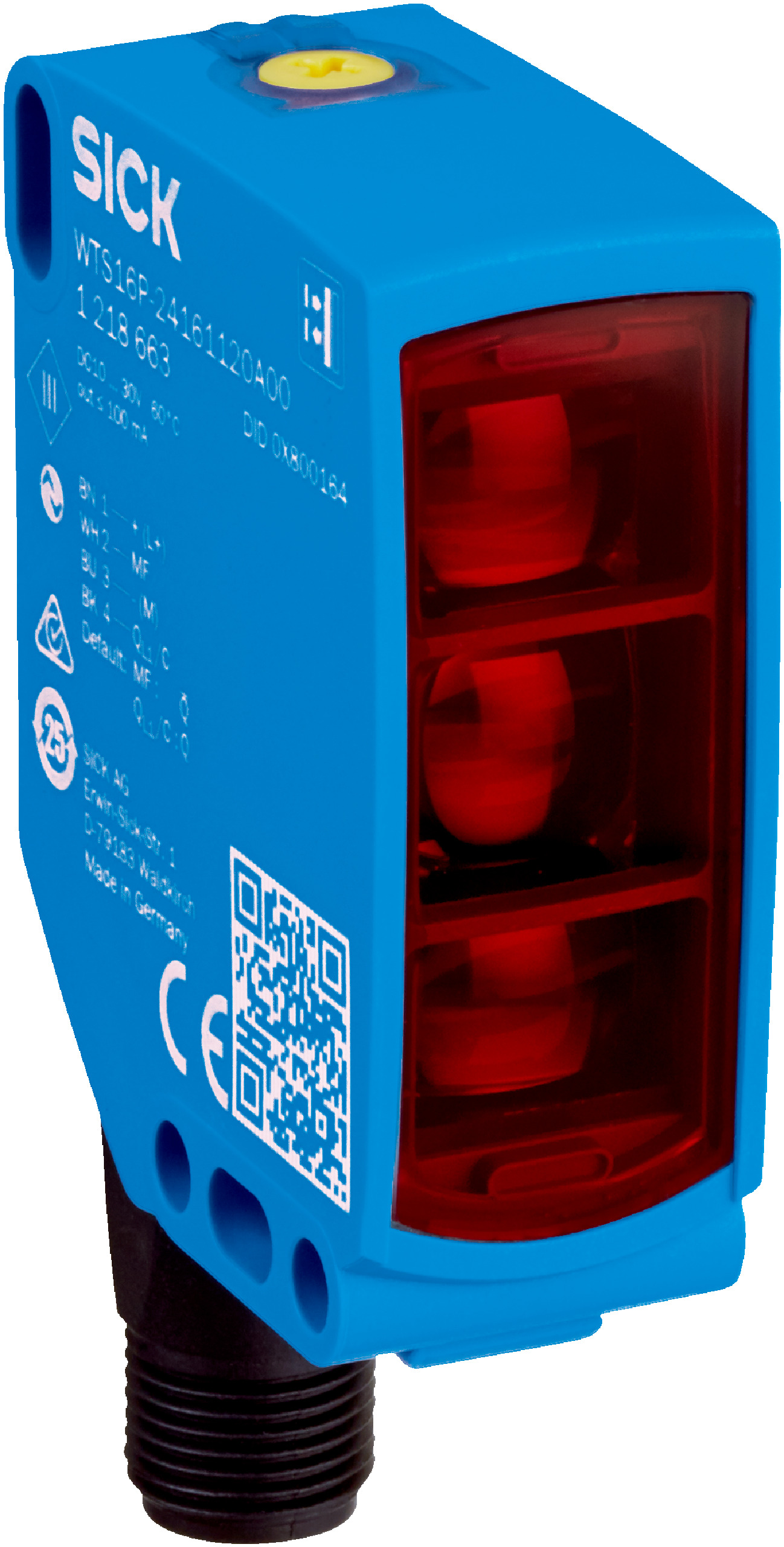

Photoelectric Proximity Sensor | TwinEye Technology | IP66/IP67/IP69 Rated | Adjustable Sensing Range | by SICK
The Photoelectric Proximity Sensor with TwinEye technology offers an adjustable sensing range from 10 mm to 400 mm, making it ideal for industrial automation and object detection. With a robust IP66/IP67/IP69 rated enclosure, it ensures reliable performance in harsh environments, while the visible red LED light source provides precise detection of uneven or shiny objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 400 mm adjustable, recommended 150 mm to 300 mm
- Light source: Visible red LED, wavelength 625 nm
- Light spot size: 13 mm x 13 mm at 300 mm distance
- Response time: ≤ 3.3 ms
- Switching frequency: 150 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®, front screen PMMA
- Shock resistance: 50 g, 11 ms and 6 ms shocks
- Vibration resistance: 10 Hz to 2000 Hz, amplitude 0.5 mm / 10 g
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using TwinEye technology
- Adjustable sensing range from 10 mm to 400 mm with recommended range 150 mm to 300 mm
- Visible red LED light source with rectangular 13 mm x 13 mm light spot at 300 mm
- BluePilot Teach-Turn adjustment for setting sensing range
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High shock and vibration resistance
- IP66, IP67, and IP69 rated enclosure for robust protection
- Dual complementary push-pull digital outputs with light/dark switching
- Long LED service life of 100,000 hours at 25°C
- Operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Detecting uneven or shiny objects
- Detecting objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability and resistance to harsh conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

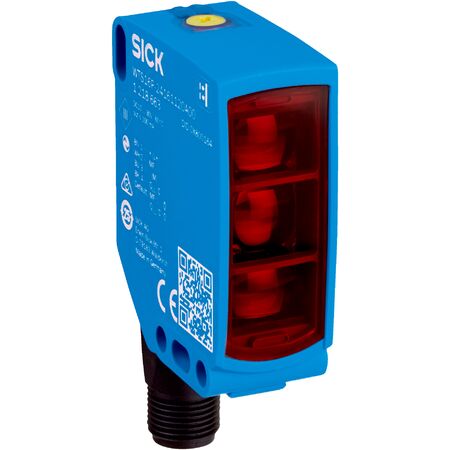

The SICK WTS16G-24161920A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
