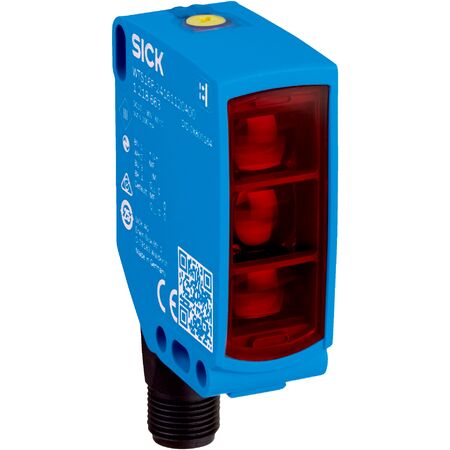

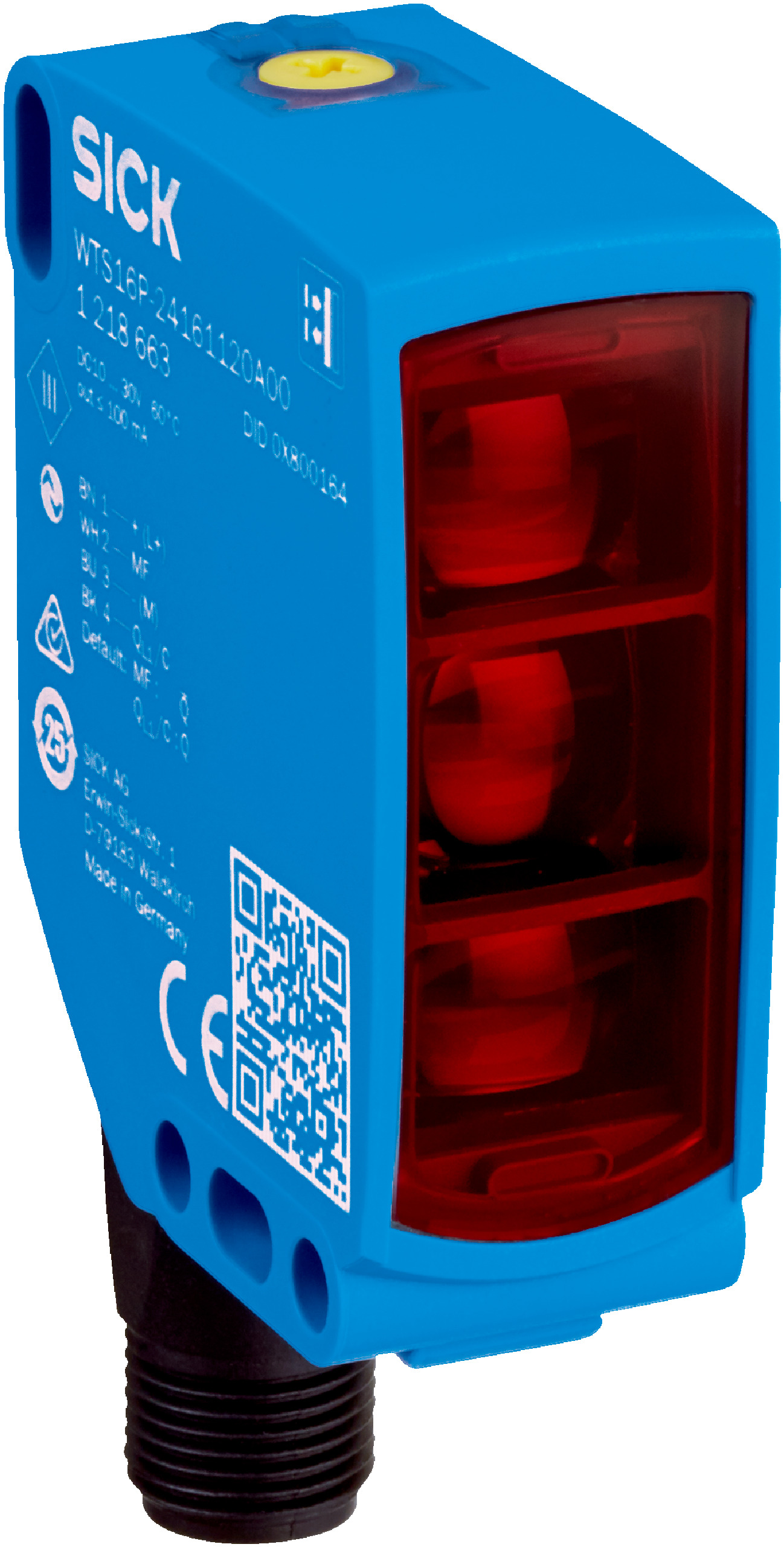

Photoelectric Proximity Sensor | TwinEye Technology | IP66/IP67/IP69 Rated | Adjustable Sensing Range | by SICK
The photoelectric proximity sensor with TwinEye technology offers a sensing range from 10 mm to 750 mm, making it ideal for industrial automation and object detection. With an infrared LED light source and robust IP66/IP67/IP69 enclosure, it excels in harsh environments, ensuring reliable performance and high shock resistance. Perfect for detecting shiny or uneven objects, this sensor is designed for easy installation and long-lasting use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 750 mm, adjustable switching threshold 100 mm to 750 mm
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 5 mm at 250 mm distance
- Response time: ≤ 1.4 ms
- Switching frequency: 350 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using TwinEye technology
- Sensing range from 10 mm to 750 mm with adjustable switching threshold
- Infrared LED light source with point-shaped light spot of 5 mm diameter at 250 mm
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High shock and vibration resistance
- Protection class III with reverse polarity and short-circuit protection
- IP66, IP67, and IP69 rated enclosure for robust environmental protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure mounting using M12 connector and fixing screws with max torque 1.3 Nm.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny objects
- Detection of objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact by minimizing sensor failures and replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTS16I-24161120A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
