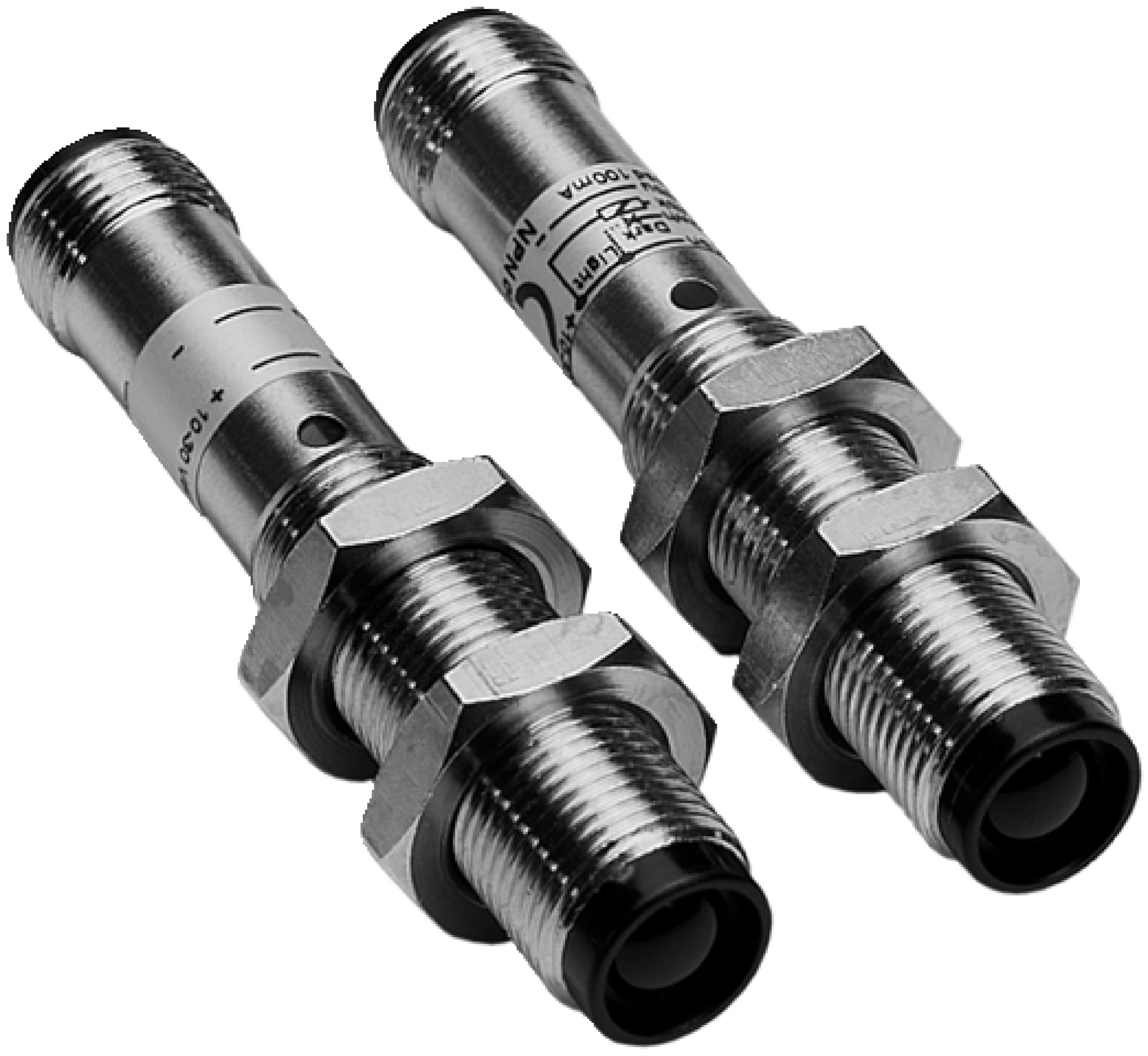

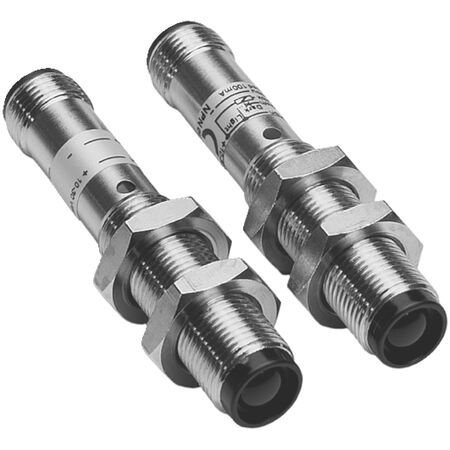

Photoelectric Proximity Sensor VT12-2P110S01 | IP67 Rated | Infrared LED | Fast Response Time | by SICK
The Photoelectric Proximity Sensor VT12-2P110S01 is designed for industrial automation, featuring a sensing range of 2 mm to 100 mm and an infrared LED light source. With an IP67 rating for dust and water protection, this sensor ensures reliable performance in manufacturing and safety applications, making it ideal for object detection and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 2 mm to 100 mm (max 115 mm)
- Light source: Infrared LED, wavelength 880 nm
- Focus angle: Approx. 11.4°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection: 3-wire cable, 4 m length, PUR material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 12mm x 54.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Infrared light source with LED
- Sensing range from 2 mm to 100 mm, max 115 mm
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 1.25 ms and switching frequency of 400 Hz
- PNP switching output with light switching mode
- Cable connection with 3-wire, 4 m PUR plastic cable
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VT12-2P110S01 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
