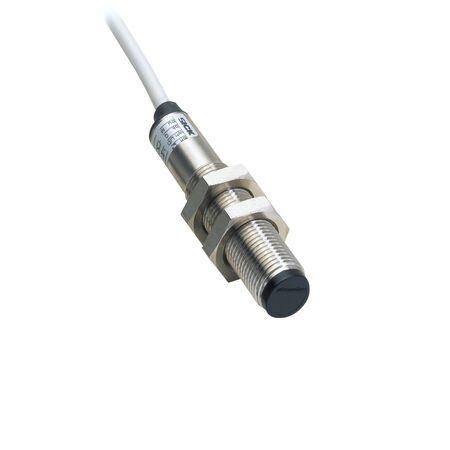

Photoelectric Proximity Sensor VT12T-2N112 | Infrared LED | IP67 Rated | NPN Output | by SICK
The Photoelectric Proximity Sensor VT12T-2N112 features an infrared LED light source with an 880 nm wavelength and a sensing range of 2 mm to 100 mm, making it ideal for industrial automation and manufacturing process control. With an IP67 rated enclosure for dust and water protection, this sensor ensures reliable performance in challenging environments, while its selectable light/dark switching mode offers versatility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range: 2 mm to 100 mm, max 115 mm
- Light source: Infrared LED, wavelength 880 nm
- Focus angle: Approx. 11.4°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark switching, selectable via control input
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 12mm x 54.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Infrared LED light source with 880 nm wavelength
- Sensing range from 2 mm to 100 mm, max 115 mm
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Selectable light/dark switching mode via control input
- Single teach-in button for easy adjustment
- Response time ≤ 1.25 ms and switching frequency 400 Hz
- NPN switching output with max output current ≤ 100 mA
- Cable connection, 4-wire, 2 m length with PVC insulation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VT12T-2N112 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
