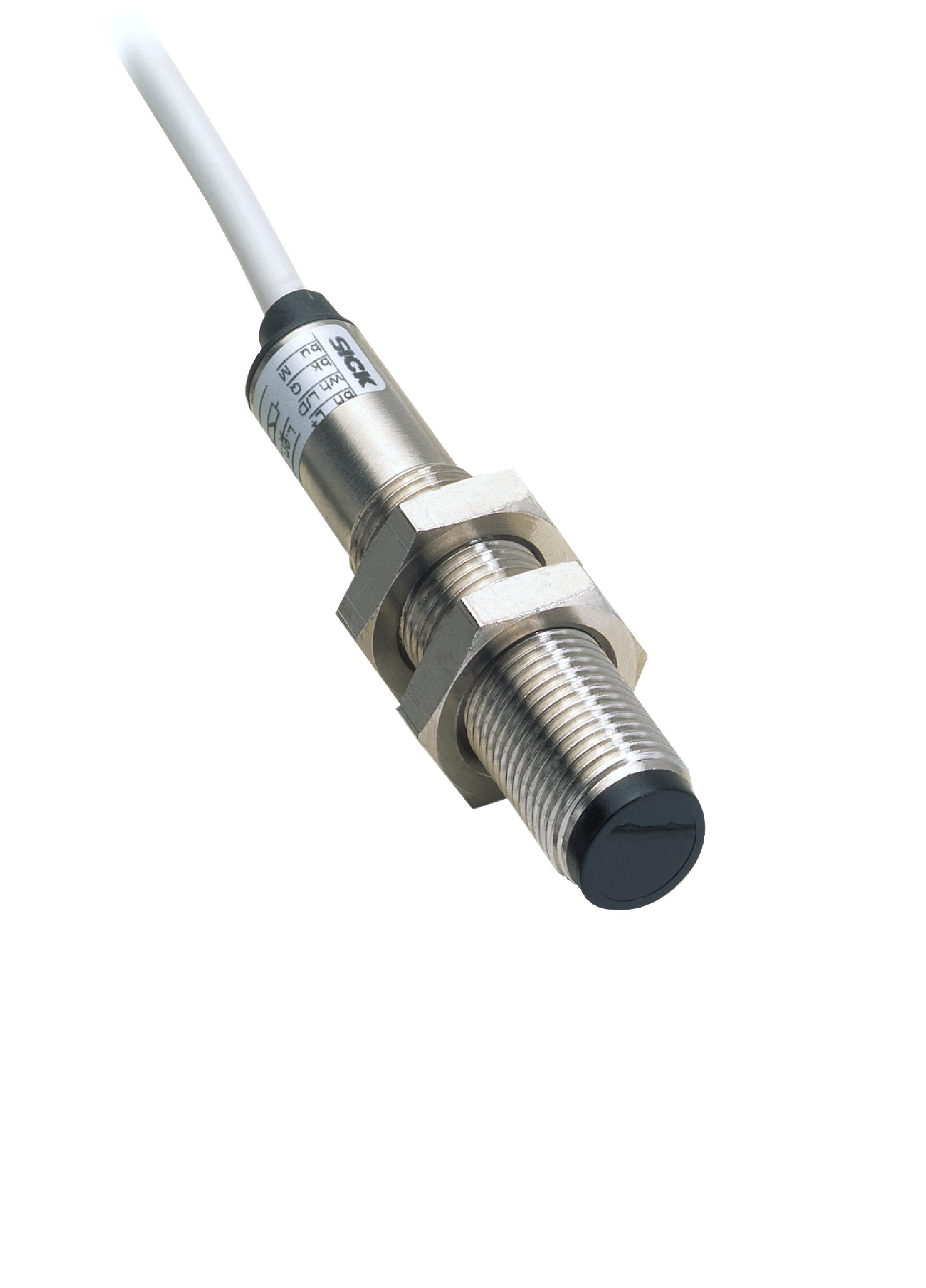

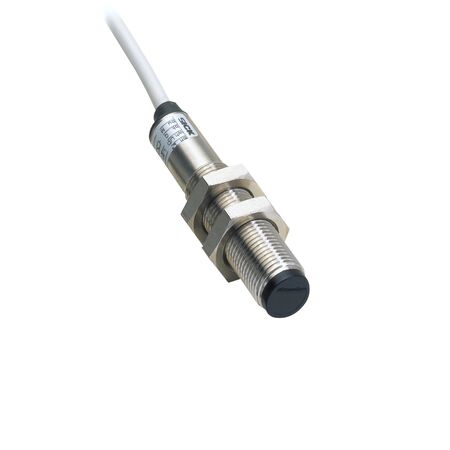

Photoelectric Proximity Sensor VT12T-2N132 | IP67 Rated | Infrared LED | NPN Output | by SICK
The Photoelectric Proximity Sensor VT12T-2N132 is designed for precise object detection in industrial automation, featuring a sensing range of 2 mm to 300 mm and an infrared LED light source with an 880 nm wavelength. With an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range: 2 mm to 300 mm, max 340 mm
- Focus angle: Approx. 5.3°
- Light source: Infrared LED, wavelength 880 nm
- Switching output: NPN, light/dark switching selectable
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 20 mA
- Output current max: ≤ 100 mA
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 12mm x 54.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Infrared LED light source with 880 nm wavelength
- Sensing range from 2 mm to 300 mm, max 340 mm
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Single teach-in button and selectable sensing range via control input
- NPN switching output with light/dark switching mode
- High switching frequency of 400 Hz and response time ≤ 1.25 ms
- Cable connection with 4-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VT12T-2N132 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
